Key Specs
2138
sq ft
3
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBFALL
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 21-132
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

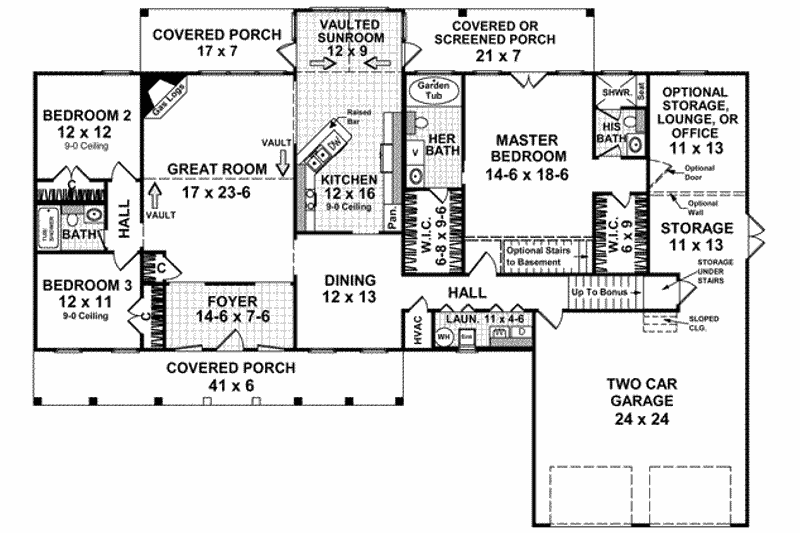

Floor Plans
Full Specs & Features
Dimension
Depth : 57' 6"
Height : 26' 4"
Width : 80'
Area
Bonus: 302 sq/ft
First Floor: 2138 sq/ft height 9'
Garage: 570 sq/ft
Storage: 294 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Gable
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding/Stucco
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Sunroom
Unfinished Future Space
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bathroom 2:
44 sq/ft width 8' x depth 5' 6"
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 2 Closet:
20 sq/ft width 8' x depth 2' 6"
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 3 Closet:
18 sq/ft width 2' 6" x depth 7' 6"
Bonus Room - Finished:
279 sq/ft width 13' x depth 21' 6"
Covered Porch:
119 sq/ft width 17' x depth 7'
Dining Room:
156 sq/ft width 12' x depth 13'
Foyer:
108 sq/ft width 14' 6" x depth 7' 6"
Garage:
576 sq/ft width 24' x depth 24'
Garage Storage:
143 sq/ft width 11' x depth 13'
Kitchen:
192 sq/ft width 12' x depth 16'
Laundry Room:
49 sq/ft width 11' x depth 4' 6"
Master Bathroom:
82 sq/ft width 6' 4" x depth 13'
Master Bedroom:
268 sq/ft width 14' 6" x depth 18' 6"
Master Closet:
63 sq/ft width 6' 8" x depth 9' 6"
Master Closet Two:
54 sq/ft width 6' x depth 9'
Porch - Front:
246 sq/ft width 41' x depth 6'
Porch - Rear:
147 sq/ft width 21' x depth 7'
Sun Room:
108 sq/ft width 12' x depth 9'
What's Included In This Plan Set
- Cover Sheet: Color rendering or black and white image of the exterior
- Foundation Plan(s): Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): Overhead view of roof.
- Cross Section(s): A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Electrical Plan(s): Lighting, outlets, switches, detectors, etc.
- Kitchen Cabinet Elevation(s): Scaled drawings of interior cabinets.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Ceiling joist size and spacing and layouts. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): Exterior wall and roof sections and specialty details.
Plan Set
$1190.00
$1275.00
$1445.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$127.50
$51.00
$140.25
$33.15
$140.25
$127.50
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
