PLAN #36-484

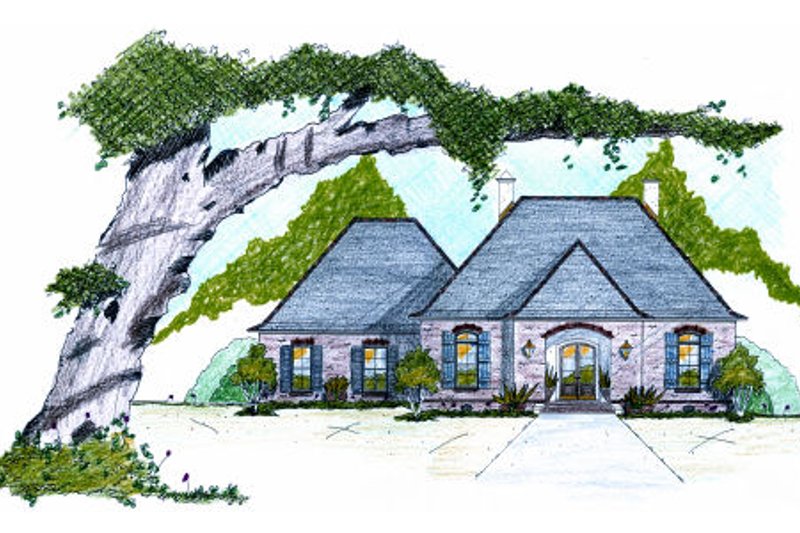

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$0.00
Subtotal
$675.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #36-484

Key Specs


2178
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

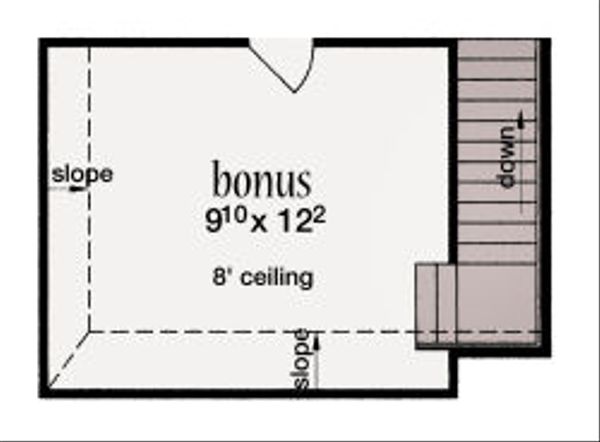

Floor Plan - Other Floor Plan
European Floor Plan - Other Floor Plan Plan #36-484

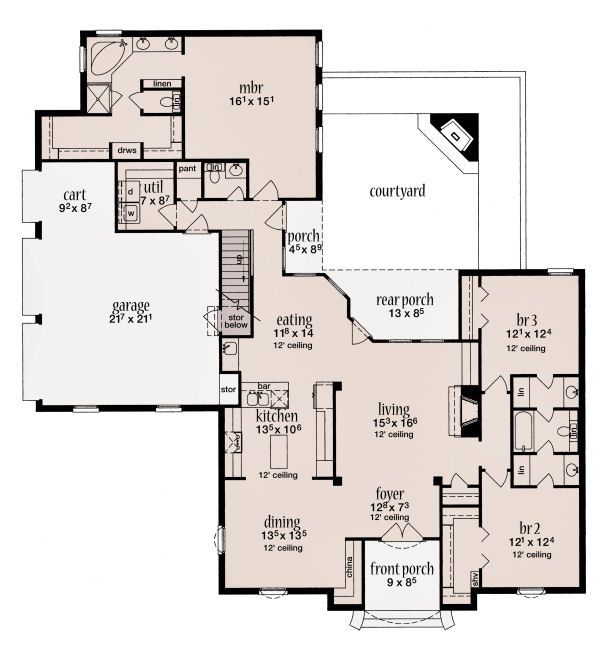

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #36-484

Full Specs & Features


Dimension
Depth : 69' 7"
Height : 28' 3"
Width : 65' 8"
Area
Bonus: 248 sq/ft
First Floor: 2178 sq/ft height 10'
Garage: 537 sq/ft
Porch: 222 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Conventional
Primary Pitch : 14:12
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath

What's Included In This Plan Set


  • Floor plan with dimensions.
  • Electrical layout showing fixtures and switches, but not circuits. This is on the floor plan on older plans.
  • Elevations from all 4 sides and top.
  • Framing details including cornices and at least one section.
  • Foundation with footing details. Plumbing is repeated on slab foundation.
» See important information before purchasing.

Plan Set

5 Copy Set :
$675.00
5 printed plan sets mailed to you.
Reproducible Set :
$750.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
8 Copy Set :
$775.00
8 printed plan sets mailed to you.
CAD Set :
$1350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$550.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
