PLAN #23-504

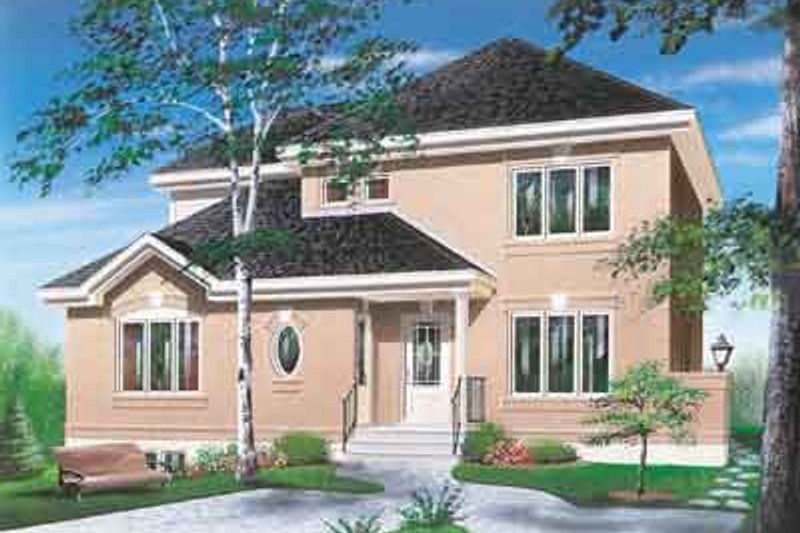

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Subtotal
$935.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #23-504

Key Specs


2181
sq ft

4
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

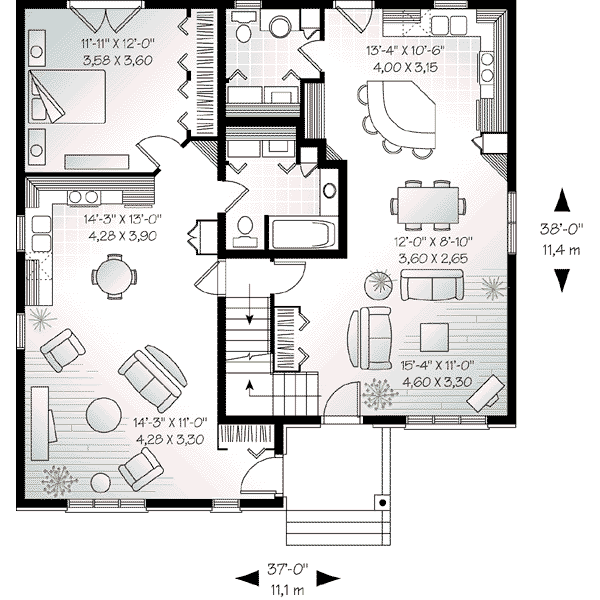

Floor Plan - Main Floor Plan

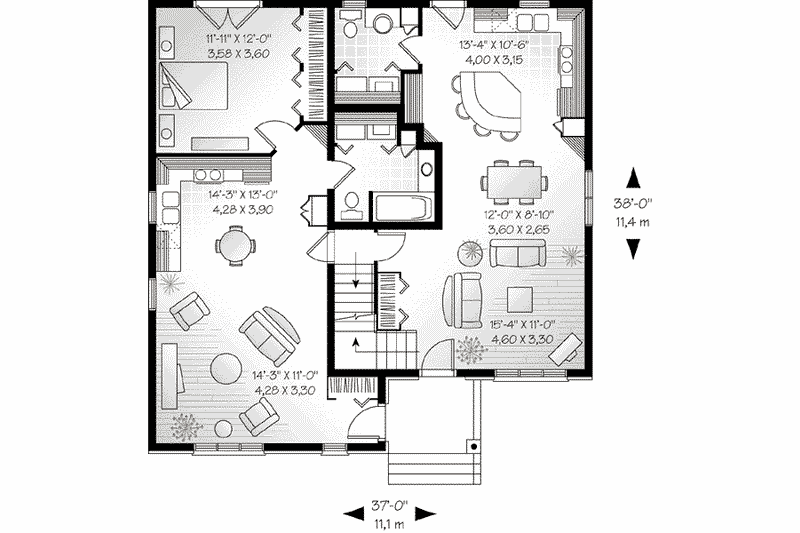

Floor Plan - Main Floor Plan Plan #23-504

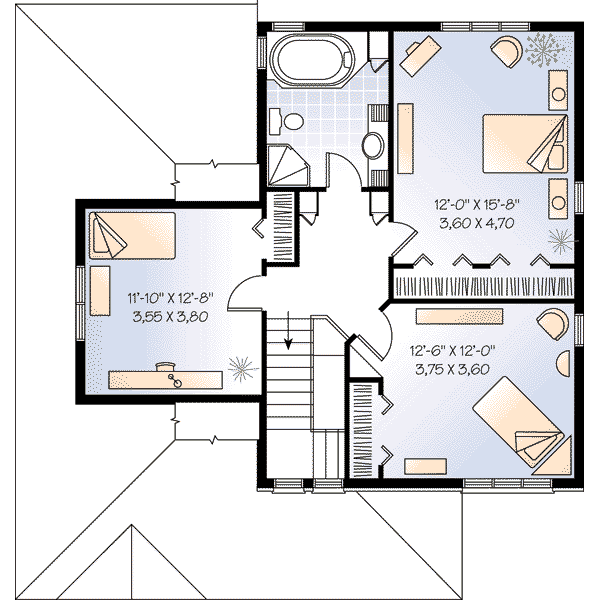

Floor Plan - Upper Floor Plan

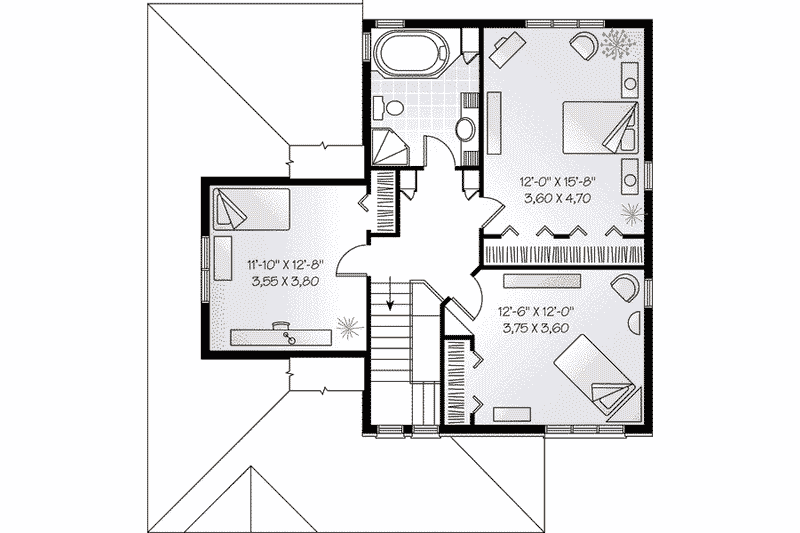

Floor Plan - Upper Floor Plan Plan #23-504

Full Specs & Features


Dimension
Depth : 38'
Height : 28'
Width : 37'
Area
First Floor: 613 sq/ft
First Floor: 621 sq/ft
Second Floor: 874 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Secondary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Kitchen Features
Eating Bar
Kitchen Island
Lot Characteristics
Suited For Narrow Lot
More
Two Family Home
Rooms

Bedroom 1:

143 sq/ft width 11' 11" x depth 12'

Bedroom 1:

149 sq/ft width 11' 10" x depth 12' 8"

Bedroom 2:

150 sq/ft width 12' 6" x depth 12'

Bedroom 3:

188 sq/ft width 12' x depth 15' 8"

Dining Room:

105 sq/ft width 12' x depth 8' 10"

Kitchen:

185 sq/ft width 14' 3" x depth 13'

Kitchen:

139 sq/ft width 13' 4" x depth 10' 6"

Living Room:

156 sq/ft width 14' 3" x depth 11'

Living Room:

161 sq/ft width 14' 8" x depth 11'

What's Included In This Plan Set


Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
» See important information before purchasing.

Plan Set

5 Copy Set :
$935.00
5 printed plan sets mailed to you.
PDF Set :
$1070.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1070.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1620.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Material List :
145.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
