PLAN #513-2159

Key Specs


2193
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Nice Traditional Ranch plan with open living space and split bedroom layout. The living room, kitchen and dining area of this plan have a comfortable flow and have French doors that lead out to the sizable rear porch. The master with it's exceptional bath and walk-in closet is separated from the remaining bedrooms for added privacy.

Floor Plans

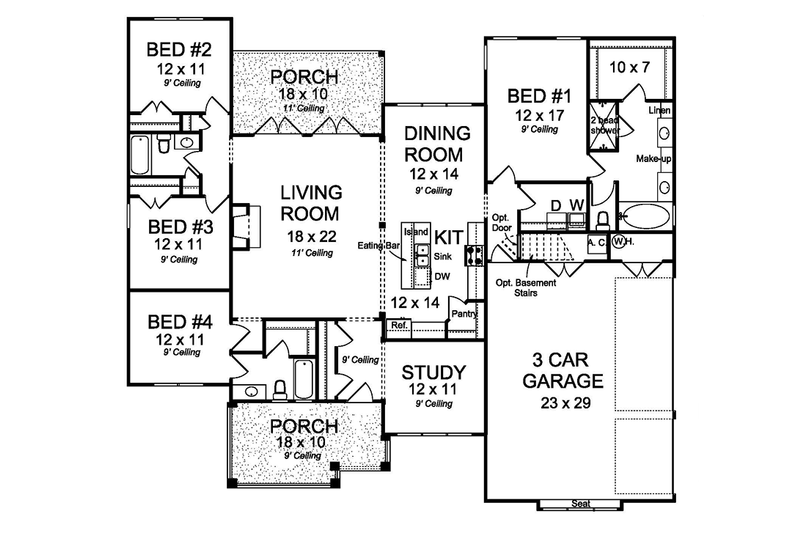

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Area Garage : 733 sq/ft
Main Floor : 2193 sq/ft
Bedroom Features Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Main Floor Laundry
Storage Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features Side Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


WL Martin Home Designs

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

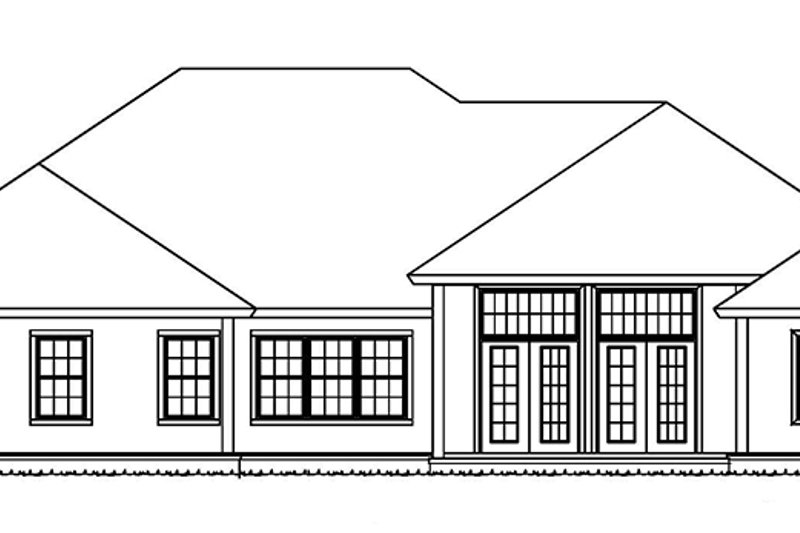

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
