PLAN 20-1840
Key Specs
2194
sq ft
3
Beds
2
Baths
1
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 20-1840
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Height : 24'
Width : 66'
Garage: 678 sq/ft
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x4
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Storage Area
Sunroom
Workshop
Side Entry Garage
Screened Porch
Bathroom 2:
58 sq/ft width 7' x depth 8' 4"
Bedroom 2 Closet:
160 sq/ft width 15' 4" x depth 10' 6"
Bedroom 3:
163 sq/ft width 11' 8" x depth 14'
Bedroom 3 Closet:
160 sq/ft width 15' 4" x depth 10' 6"
Breakfast Room:
134 sq/ft width 11' 6" x depth 11' 8"
Dining Room:
62 sq/ft width 9' 1" x depth 6' 10"
Family Room:
350 sq/ft width 20' x depth 17' 6"
Foyer:
69 sq/ft width 9' x depth 7' 8"
Garage:
650 sq/ft width 21' 4" x depth 30' 6"
Kitchen:
189 sq/ft width 13' 6" x depth 14'
Kitchen Island:
10 sq/ft width 2' 6" x depth 4'
Living Room:
152 sq/ft width 11' 4" x depth 13' 6"
Master Bathroom:
106 sq/ft width 8' 6" x depth 12' 6"
Master Bedroom:
231 sq/ft width 13' 4" x depth 17' 4"
Master Closet:
60 sq/ft width 6' 8" x depth 9'
Pantry:
15 sq/ft width 5' x depth 3'
Porch - Screened:
192 sq/ft width 16' x depth 12'
Utility Room:
44 sq/ft width 8' x depth 5' 6"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

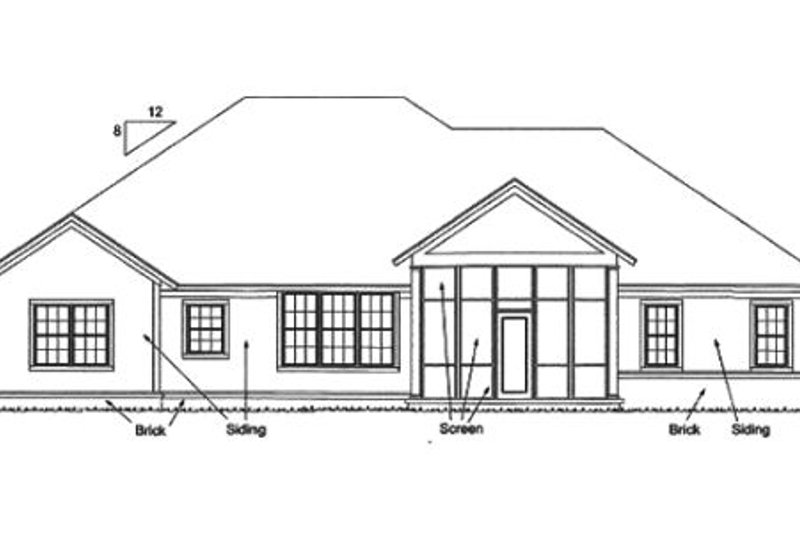

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

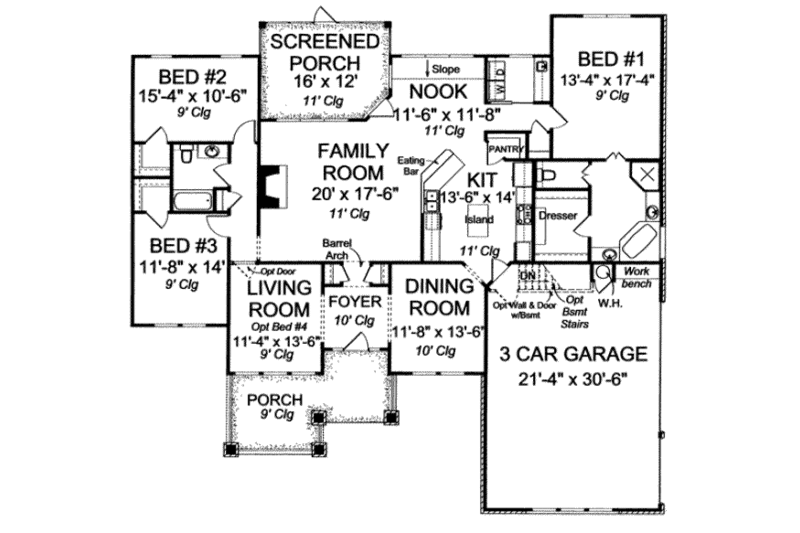

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
