PLAN #100-506

Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Subtotal
$775.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #100-506

Key Specs


2202
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This northwest contemporary design is graced with a horizontal-siding and brick exterior. Inside, the main floor is enhanced by ten-foot ceilings. The living room is illuminated by an arched-top window. An island workstation kitchen is complete with a pantry and phone desk. The large sunken family room is perfect for entertaining and is warmed by a fireplace. This home plan includes four bedrooms and three full baths. The large walk-in closet in the master suite is an added bonus. This plan is completed by a convenient laundry chute and a two-car garage.

Floor Plans

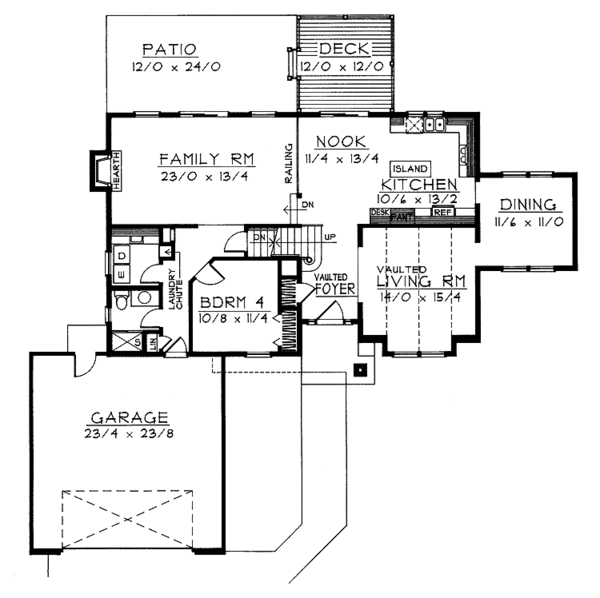

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

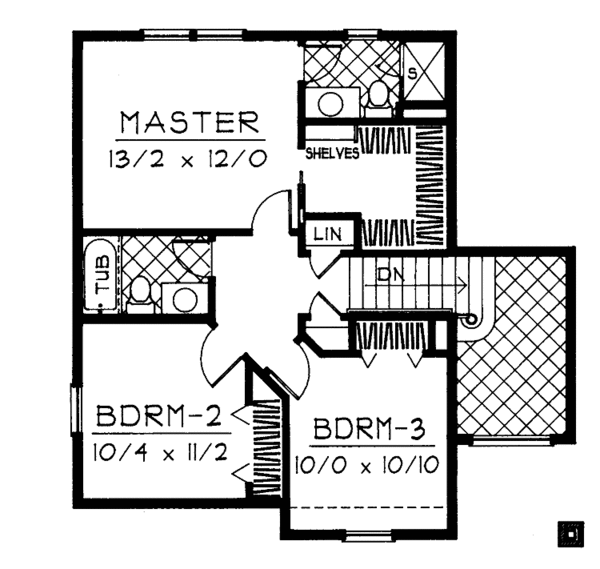

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 1484 sq/ft
Upper Floor : 718 sq/ft
Bedroom Features Guest Suite
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces Courtyard
Deck
