PLAN 44-163

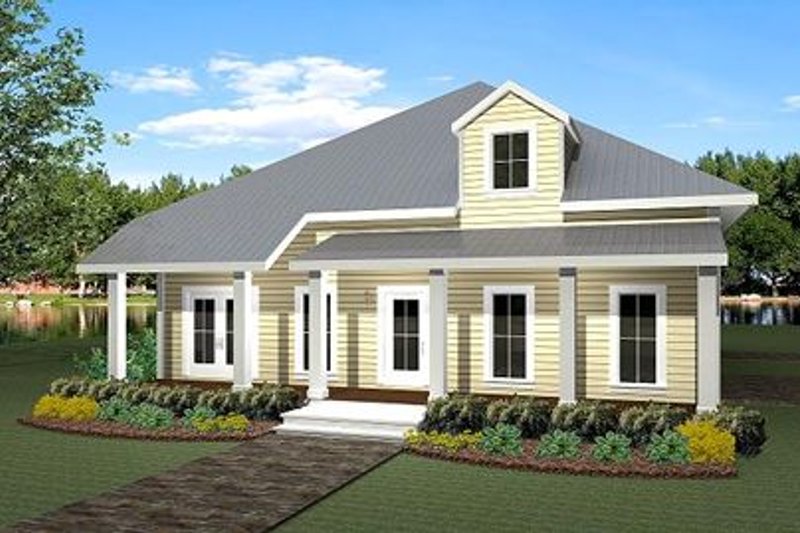

Dream House Plan - Traditional Exterior - Front Elevation Plan #44-163
Dream House Plan - Traditional Exterior - Rear Elevation Plan #44-163

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Printed sets showing plan in reverse, text and dimensions will be backwards.
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 44-163

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

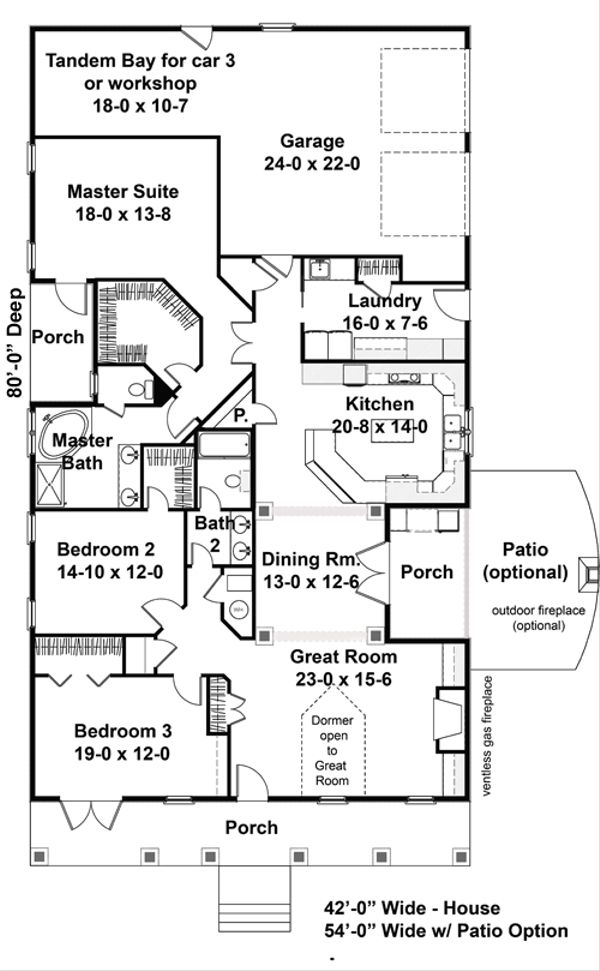

A dormer sheds light into the spacious Great Room that is warmed by a gas fireplace. The Dining Room is highlighted with columns and a double French door. Just outside the Dining Room is an outdoor Kitchen featuring an optional outdoor fireplace. This feature will allow you to dine under the stairs almost year round! The Master suite welcomes you with interesting angles, a private porch, large walk-in closet and Spa style Master Bath. The Master Bath features a corner whirlpool tub, separate shower and dual sinks. Bedrooms 2 and 3 feature walk-in closets and share a full bath. Bedroom 3 has access to the front covered porch through French doors. A built-in bookcase gives extra storage to this spacious room. The heart of this home is the Kitchen. This area has an island, walk-in pantry and is fully equipped for cooking and entertaining. The Kitchen is home to an angled raised snack bar, double ovens, cook top and double windows for extra light. The Laundry provides fabric care for today's families. A front loading washer and dryer, built-in ironing station, drying cabinet and laundry sink make laundry more pleasant. The Garage has area for a workshop or tandem garage, perfect for a third car.

Full Specs & Features

Depth : 80'
Height : 28'
Width : 42'
First Floor: 2208 sq/ft height 10'
Garage: 736 sq/ft height 10'
Porch: 416 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Mud Room
Storage Area
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Tandem Garage
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Empty Nester
Suited For Vacation Home
Unusual Shape
Energy Efficient Features
Energy Efficient Design

Bathroom 2:

85 sq/ft width 6' 6" x depth 13' 1"

Bedroom 2:

177 sq/ft width 14' 10" x depth 12'

Bedroom 2 Closet:

30 sq/ft width 5' x depth 6' 2"

Bedroom 3:

228 sq/ft width 19' x depth 12'

Bedroom 3 Closet:

34 sq/ft width 9' x depth 3' 10"

Coat Closet:

11 sq/ft width 2' x depth 5' 6"

Dining Room:

162 sq/ft width 13' x depth 12' 6"


528 sq/ft width 22' x depth 24'

Gathering Room:

356 sq/ft width 23' x depth 15' 6"


289 sq/ft width 20' 8" x depth 14'

Laundry Room:

160 sq/ft width 16' x depth 10'

Linen Closet:

11 sq/ft width 3' x depth 3' 10"

Master Bathroom:

110 sq/ft width 10' 8" x depth 10' 4"

Master Bedroom:

247 sq/ft width 18' x depth 13' 9"

Master Closet:

80 sq/ft width 10' x depth 8'


228 sq/ft width 12' x depth 19'

Porch - Front:

252 sq/ft width 42' x depth 6'

Porch - Left:

67 sq/ft width 6' x depth 11' 3"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
5 Copy and PDF Set :
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
