Photographs may show modified designs.
PLAN 21-433
Key Specs
2216
sq ft
3
Beds
2.5
Baths
1
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 21-433
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

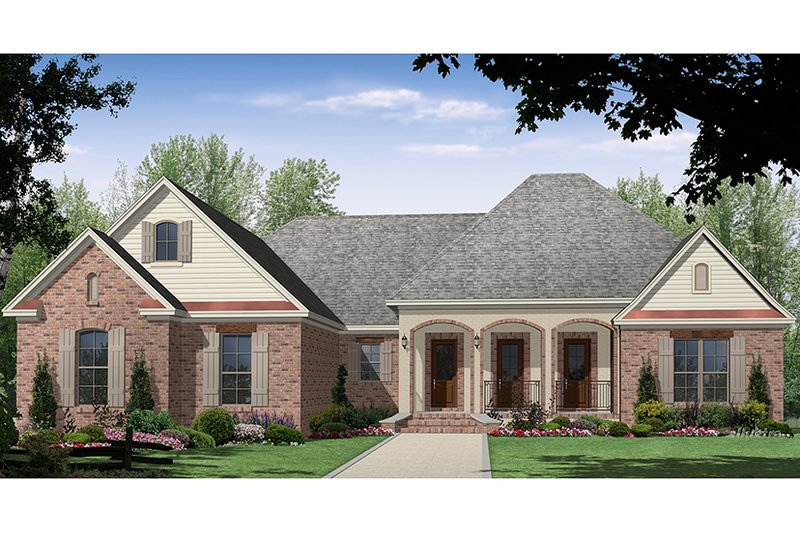

This attractive, European-influenced home includes many unique details to meet the needs of a modern family. The oversize great room displays a tray ceiling and built-in cabinets to create an elegant atmosphere for entertaining. Brick arches frame the spacious kitchen and dining area, defining the spaces without closing them off. A large island with a vegetable sink adds extra utility to the kitchen. The dining room features a decorative ceiling and double doors to the screened porch (designed to let the breeze flow through without obstruction). Bedrooms 2 and 3 each include a computer desk and access to a unique Jack and Jill bath that provides a toilet and sink for each side. The office is conveniently located near the master bedroom and could serve as a guest bedroom or nursery. A flex space leading to the laundry room makes a great mud room (check out those lockers), hobby center, or second office. The master bedroom offers all kinds of amenities: a vaulted ceiling, dual closets and sinks, a corner jet tub, a separate shower, and even an extra vanity. The split-loading, three-car garage accommodates two vehicles on one side and another in the front-facing bay.
Full Specs & Features
Dimension
Depth : 69'
Height : 26' 4"
Width : 82' 6"
Height : 26' 4"
Width : 82' 6"
Area
First Floor: 2216 sq/ft height 9'
Garage: 1028 sq/ft
Garage: 1028 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Sunroom
Vaulted / Cathedral Ceilings
Exercise Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Sunroom
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Side Entry Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath

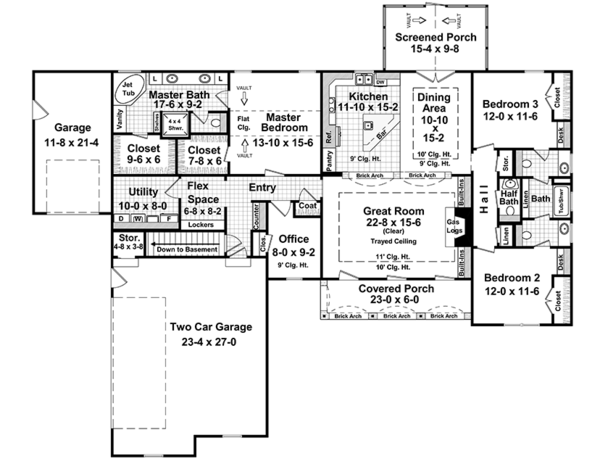

Rooms
Bedroom 2:
138 sq/ft width 12' x depth 11' 6"
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Covered Front Porch:
138 sq/ft width 23' x depth 6'
Dining Area:
164 sq/ft width 10' 10" x depth 15' 2"
Double Garage:
764 sq/ft width 23' 4" x depth 27'
Flex Space:
54 sq/ft width 6' 8" x depth 8' 2"
Great Room:
351 sq/ft width 22' 8" x depth 15' 6"
Kitchen:
179 sq/ft width 11' 10" x depth 15' 2"
Master Closet 1:
57 sq/ft width 9' 6" x depth 6'
Master Closet 2:
46 sq/ft width 7' 8" x depth 6'
Master Bath:
160 sq/ft width 17' 6" x depth 9' 2"
Master Bedroom:
214 sq/ft width 13' 10" x depth 15' 6"
Office:
73 sq/ft width 8' x depth 9' 2"
Rear Screened Porch:
160 sq/ft width 15' 4" x depth 9' 8"
Single Garage:
264 sq/ft width 11' 8" x depth 21' 4"
Storage Room:
17 sq/ft width 4' 8" x depth 3' 8"
Utility Room:
80 sq/ft width 10' x depth 8'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Questions? Call 1-800-447-0027
Plan Set
| 5 Copy Set : $1365.00 |
5 printed plan sets mailed to you. |
| PDF Set : $1465.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set : $1540.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1700.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1990.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List : $150.00 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $50.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
