PLAN 23-2211
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
2225
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 23-2211
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

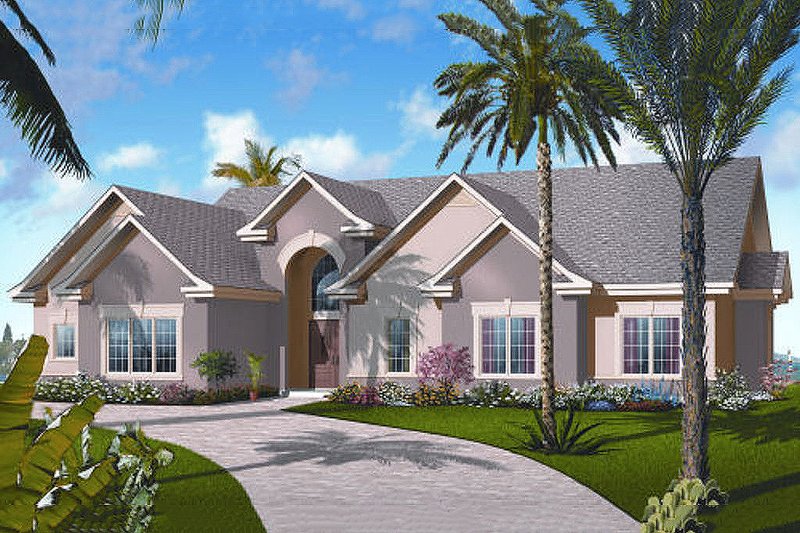

This mediterranean design floor plan is 2225 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

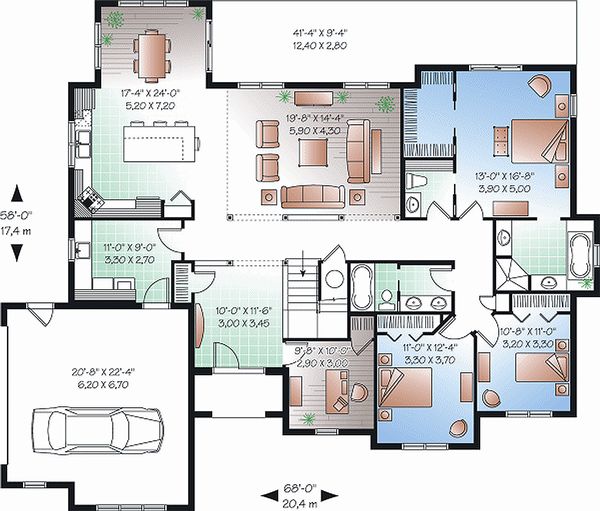

Floor Plan - Main Floor

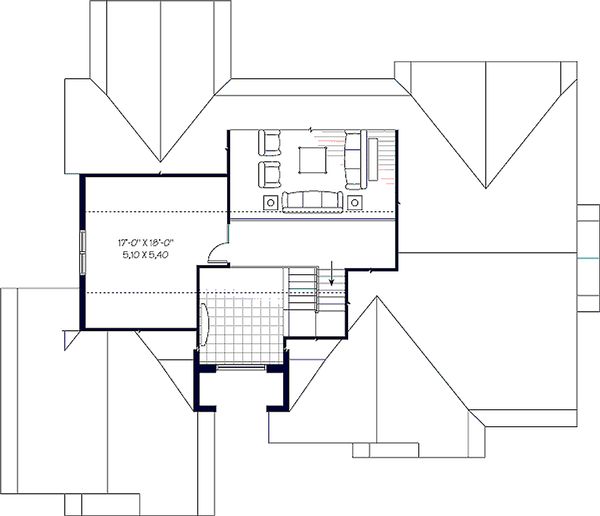

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 23' 2"
Width : 68'
Area
Bonus: 310 sq/ft
First Floor: 2225 sq/ft height 9'
Garage: 486 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Den Office Study Computer
Play Flex Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
117 sq/ft width 10' 8" x depth 11'
Bedroom 3:
135 sq/ft width 11' x depth 12' 4"
Bonus Room - Unfinished:
306 sq/ft width 17' x depth 18'
Den/Office or Bedroom 4:
96 sq/ft width 9' 8" x depth 10'
Family Room:
281 sq/ft width 19' 8" x depth 14' 4"
Garage:
461 sq/ft width 20' 8" x depth 22' 4"
Kitchen:
415 sq/ft width 17' 4" x depth 24'
Laundry Room:
99 sq/ft width 11' x depth 9'
Master Bedroom:
216 sq/ft width 13' x depth 16' 8"
Patio:
385 sq/ft width 41' 4" x depth 9' 4"
What's Included In This Plan Set
This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1500.25
$1500.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Three Copy and PDF Set:
$1619.25
$1619.25
3 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2350.25
$2350.25
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Monolithic Slab:
$0.00
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Crawlspace:
$361.25
$361.25
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Floating Slab:
$361.25
$361.25
A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.
Additional Options
Right-Reading Reverse:
$212.50
$212.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$55.25
$55.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
