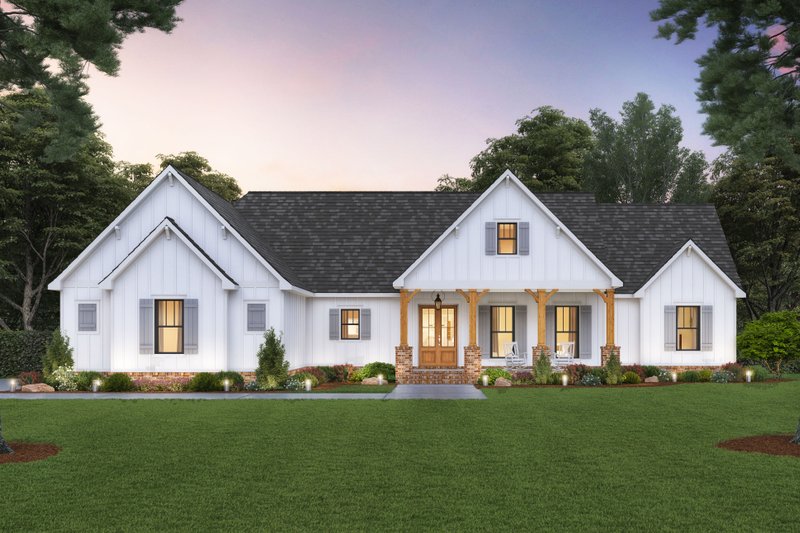

Photographs may show modified designs.
PLAN 1074-42
Key Specs
2230
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 1074-42
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 66' 6"
Height : 24' 8"
Width : 81' 2"
Height : 24' 8"
Width : 81' 2"
Area

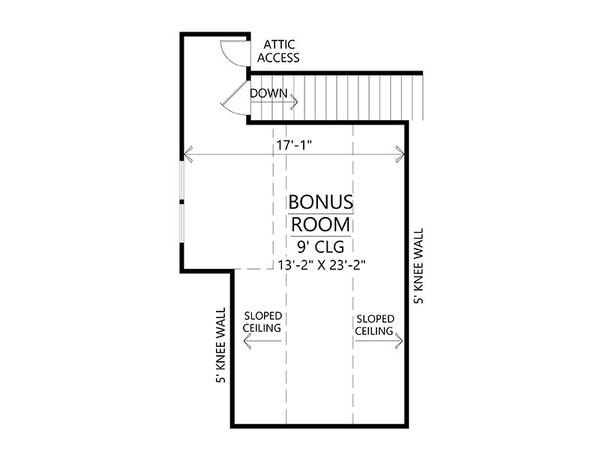

Bonus : 414 sq/ft
Garage : 568 sq/ft

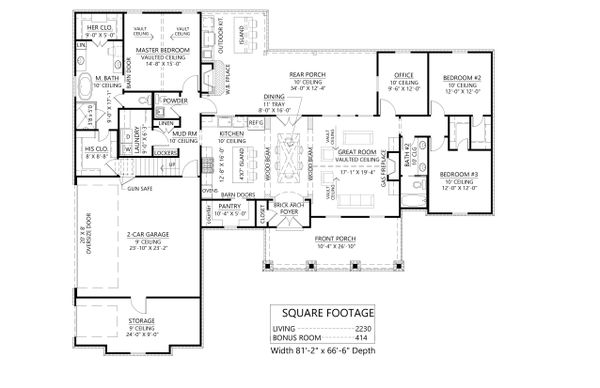

Main Floor : 2230 sq/ft
Porch : 760 sq/ft
Storage : 257 sq/ft
Garage : 568 sq/ft
Main Floor : 2230 sq/ft
Porch : 760 sq/ft
Storage : 257 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 9'
Garage Ceiling : 9'
Main Ceiling : 10'
Garage Ceiling : 9'
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Type : shingle
Secondary Pitch : 12:12
Roof Framing : stick
Roof Type : shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Hardie board
Framing : 2x4
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Storage Area
Great Room Living Room
Mud Room
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Covered Rear Porch
Outdoor Kitchen Grill
More
Additional Half Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $1145.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1245.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $1445.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Master Set : $1845.00 |
An unlocked, modifiable PDF file |
| CAD Single Build : $2145.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| CAD Unlimited Build : $2345.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Monolithic Slab: $0.00 |
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $395.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $350.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
