PLAN #46-487

Photographs may show modified designs.

Select Plan Set Options
What's included?
Additional Construction Sets
Mirror Reversed Sets
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #46-487

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

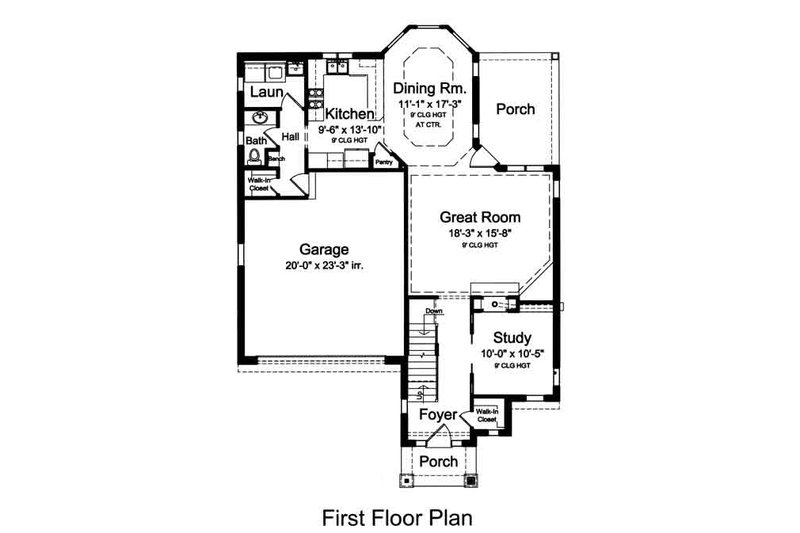

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #46-487

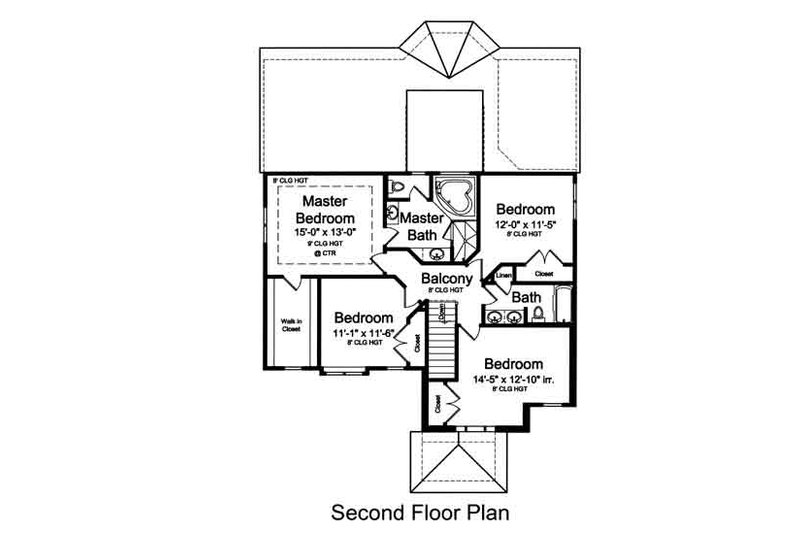

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #46-487

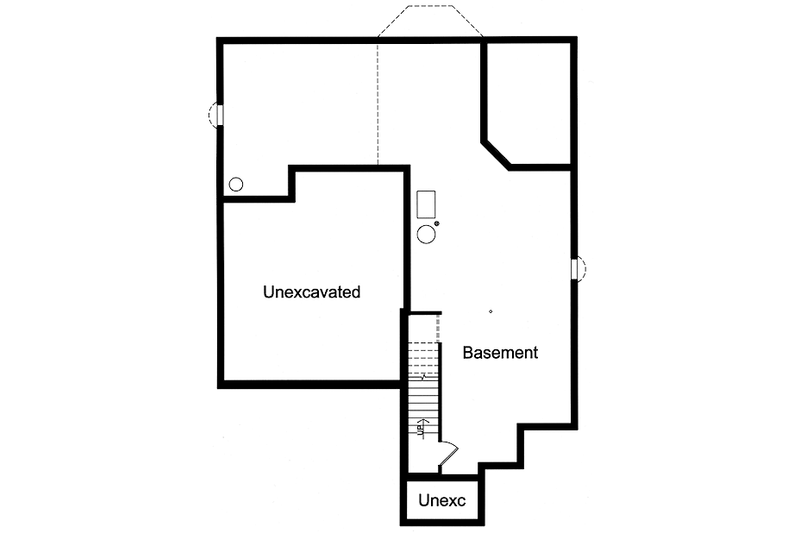

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #46-487

Full Specs & Features

Depth : 57' 9"
Height : 28' 4"
Width : 40'
First Floor: 1102 sq/ft height 9'
Garage: 434 sq/ft height 9'
Porch: 137 sq/ft
Second Floor: 1144 sq/ft height 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Rear Porch
Code Compliance
Irc 2006

Bedroom 2:

185 sq/ft width 14' 5" x depth 12' 10"

Bedroom 2 Closet:

11 sq/ft width 2' 1" x depth 5' 9"

Bedroom 3:

137 sq/ft width 12' x depth 11' 5"

Bedroom 3 Closet:

15 sq/ft width 7' 5" x depth 2' 1"

Bedroom 4:

127 sq/ft width 11' 1" x depth 11' 6"

Bedroom 4 Closet:

14 sq/ft width 2' 1" x depth 7'

Coat Closet:

16 sq/ft width 4' x depth 4'

Dining Room:

192 sq/ft width 11' 1" x depth 17' 4"


38 sq/ft width 7' 11" x depth 4' 10"


434 sq/ft width 20' x depth 23' 3"

Gathering Room:

285 sq/ft width 18' 3" x depth 15' 8"


131 sq/ft width 9' 6" x depth 13' 10"

Laundry Room:

45 sq/ft width 7' 7" x depth 6'

Linen Closet:

5 sq/ft width 2' 6" x depth 2' 1"

Master Bathroom:

195 sq/ft width 15' x depth 13'

Master Bedroom:

129 sq/ft width 11' 6" x depth 11' 3"

Master Closet:

43 sq/ft width 6' 7" x depth 6' 7"


6 sq/ft width 3' 3" x depth 2' 1"

Porch - Rear:

128 sq/ft width 9' 1" x depth 14' 2"

Powder Room:

28 sq/ft width 4' x depth 7'

Toilet Closet:

16 sq/ft width 5' 6" x depth 3'

What's Included In This Plan Set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
