Key Specs


2283
sq ft

2
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

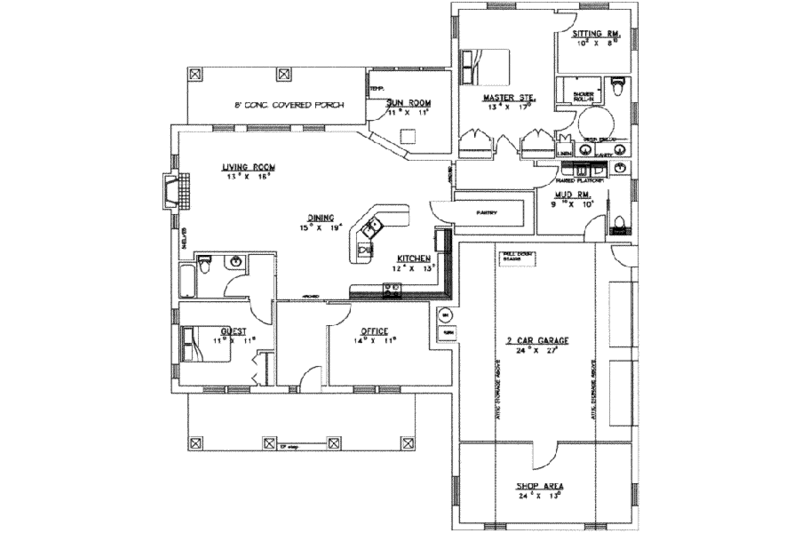

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #117-151

Full Specs & Features


Dimension
Depth : 73' 4"
Width : 65' 2"
Area
First Floor: 2283 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : ICF
Bedroom Features
Guest Suite
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Master Sitting Area
Workshop
Sunroom
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms

Dining Room:

289 sq/ft width 15' x depth 19' 4"

Garage:

664 sq/ft width 24' x depth 27' 8"

Living Room:

227 sq/ft width 13' 8" x depth 16' 8"

Master Suite:

237 sq/ft width 13' 4" x depth 17' 10"

Mud Room:

101 sq/ft width 9' 10" x depth 10' 4"

Shop:

312 sq/ft width 24' x depth 13'

Sitting Area:

89 sq/ft width 10' 2" x depth 8' 10"

Sun Room:

132 sq/ft width 11' 6" x depth 11' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$825.00
5 printed plan sets mailed to you.
8 Copy Set :
$900.00
8 printed plan sets mailed to you.
Reproducible Set :
$900.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1050.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
