PLAN 56-177
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

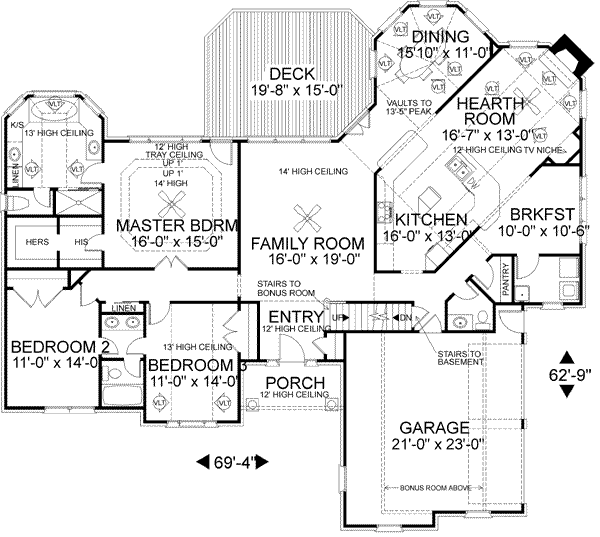

Floor Plans
Full Specs & Features
Dimension
Depth : 62' 9"
Height : 22'
Width : 69' 4"
Area
Bonus: 271 sq/ft
First Floor: 2288 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Play Flex Room
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
130 sq/ft width 20' x depth 6' 6"
Bathroom 2:
55 sq/ft width 5' x depth 11'
Bedroom 2:
154 sq/ft width 11' x depth 14'
Bedroom 2 Closet:
18 sq/ft width 9' 2" x depth 2'
Bedroom 3:
154 sq/ft width 11' x depth 14'
Bedroom 3 Closet:
18 sq/ft width 9' 2" x depth 2'
Bonus Room - Finished:
248 sq/ft width 11' 10" x depth 21'
Breakfast Room:
105 sq/ft width 10' x depth 10' 6"
Deck:
295 sq/ft width 19' 8" x depth 15'
Dining Room:
174 sq/ft width 15' 10" x depth 11'
Foyer:
69 sq/ft width 7' 8" x depth 9'
Garage:
483 sq/ft width 21' x depth 23'
Kitchen:
208 sq/ft width 16' x depth 13'
Laundry Room:
43 sq/ft width 7' 10" x depth 5' 6"
Living Room:
144 sq/ft width 16' x depth 9'
Master Bathroom:
17 sq/ft width 1' 3" x depth 14'
Master Bedroom:
240 sq/ft width 16' x depth 15'
Master Closet:
67 sq/ft width 11' 3" x depth 6'
Powder Room:
29 sq/ft width 5' 4" x depth 5' 6"
What's Included In This Plan Set
- Artist Rendering
- Exterior Elevations: All four sides
- Floor Plans(s)
- Foundation Plan
- Cross Sections
- Cabinet Elevations
- Roof Plan
- 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
- Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
Plan Set
$1185.75
$1228.25
$1270.75
$1402.50
$1610.75
Foundation
$0.00
$0.00
$0.00
$297.50
Framing
$0.00
$297.50
Additional Options
$250.75
$59.50
$637.50
$85.00
$33.15
$85.00
$250.75
$1275.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
