PLAN #17-2408

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

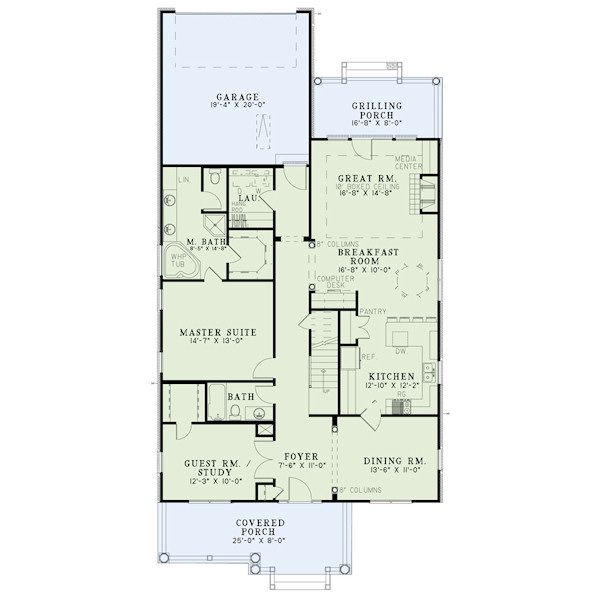

Floor Plan - Main Floor Plan
Bungalow Floor Plan - Main Floor Plan Plan #17-2408

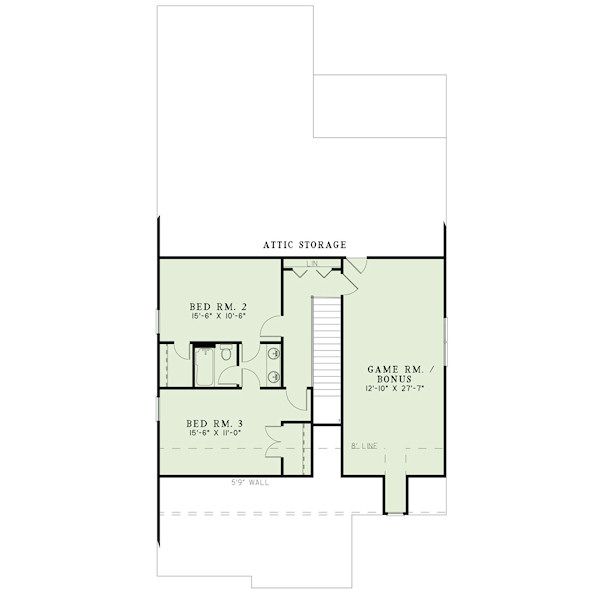

Floor Plan - Upper Floor Plan
Bungalow Floor Plan - Upper Floor Plan Plan #17-2408

Full Specs & Features

Depth : 73'
Height : 27' 6"
Width : 37'
Bonus: 397 sq/ft height 8'
First Floor: 1713 sq/ft height 9'
Garage: 405 sq/ft
Porch: 356 sq/ft
Second Floor: 583 sq/ft height 8'
Bonus Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Framing : stick
Roof Load : 45
Primary Pitch : 8:12
Roof Type : shingle
Exterior Wall Framing
Insulation : R13
Framing : 2"x4"
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Jack Jill Bath
Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Garage Features
Rear Entry Garage
Rear Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck

Bedroom 2:

162 sq/ft width 15' 6" x depth 10' 6"

Bedroom 3:

170 sq/ft width 15' 6" x depth 11'

Bonus Room - Unfinished:

353 sq/ft width 12' 10" x depth 27' 7"

Breakfast Room:

166 sq/ft width 16' 8" x depth 10'

Covered Porch:

200 sq/ft width 25' x depth 8'

Dining Room:

148 sq/ft width 13' 6" x depth 11'


386 sq/ft width 19' 4" x depth 20'

Great Room:

244 sq/ft width 16' 8" x depth 14' 8"

Grilling Porch:

133 sq/ft width 16' 8" x depth 8'

Guest Bedroom:

122 sq/ft width 12' 3" x depth 10'


156 sq/ft width 12' 10" x depth 12' 2"
