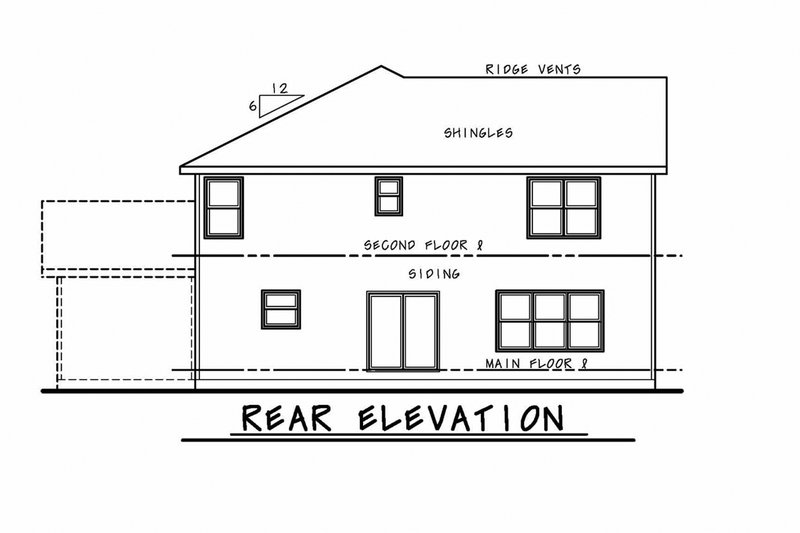

Craftsman Exterior - Rear Elevation Plan #20-2343

Select Plan Set Options

What's included?

	Right-Reading Reverse $195.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

$1015.00

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for Free

Click to Get Your Trend Report

PLAN 20-2343

Key Specs

2314
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This 4-bedroom, 2,314-square-foot home design gives your family a modern open layout. You'll also find tons of storage, from lockers in the mudroom to walk-in closets upstairs (including in the spacious master suite). Laundry is up here, too.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

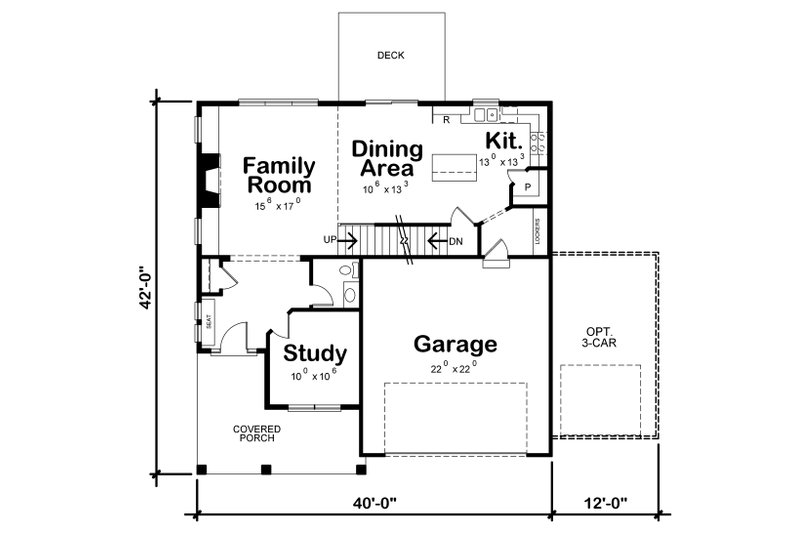

Craftsman Floor Plan - Main Floor Plan Plan #20-2343

Floor Plan - Upper Floor Plan

Reverse

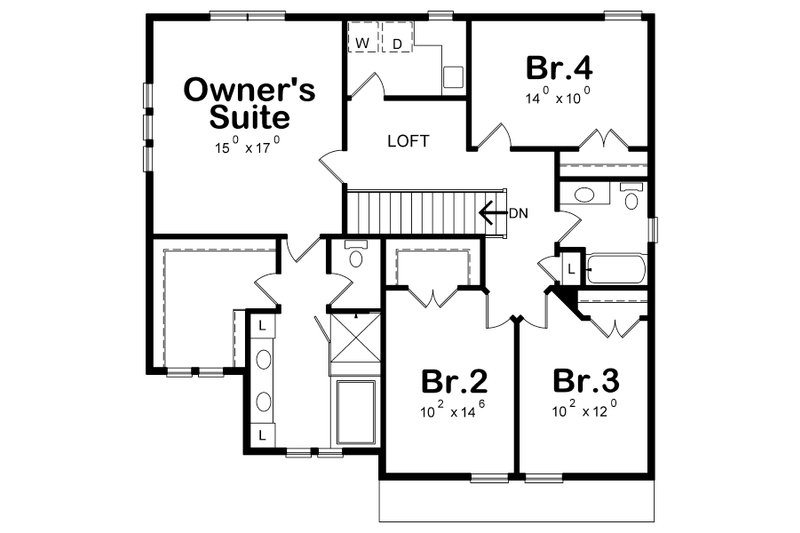

Craftsman Floor Plan - Upper Floor Plan Plan #20-2343

Full Specs & Features

Dimension

Depth : 42'
Height : 28' 4"
Width : 40'

Area

Garage : 479 sq/ft
Main Floor : 975 sq/ft
Upper Floor : 1339 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6/12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 6/12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2x6

Bedroom Features

Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Upstairs Laundry

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Cover Page: Front elevation and informative reference sections including: general notes and design criteria
Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

» See important information before purchasing.
