PLAN 1111-39
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 68' 11"
Height : 16' 7"
Width : 50' 4"
Area
Garage : 585 sq/ft
Main Floor : 2316 sq/ft
Patios : 224 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 3/12
Roof Framing : Wood
Roof Type : Truss
Secondary Pitch : 2/12
Exterior Wall Framing
Exterior Wall Finish : Siding, stone, Board & Batten
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
What's Included In This Plan Set
- Foundation Plan(s): Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

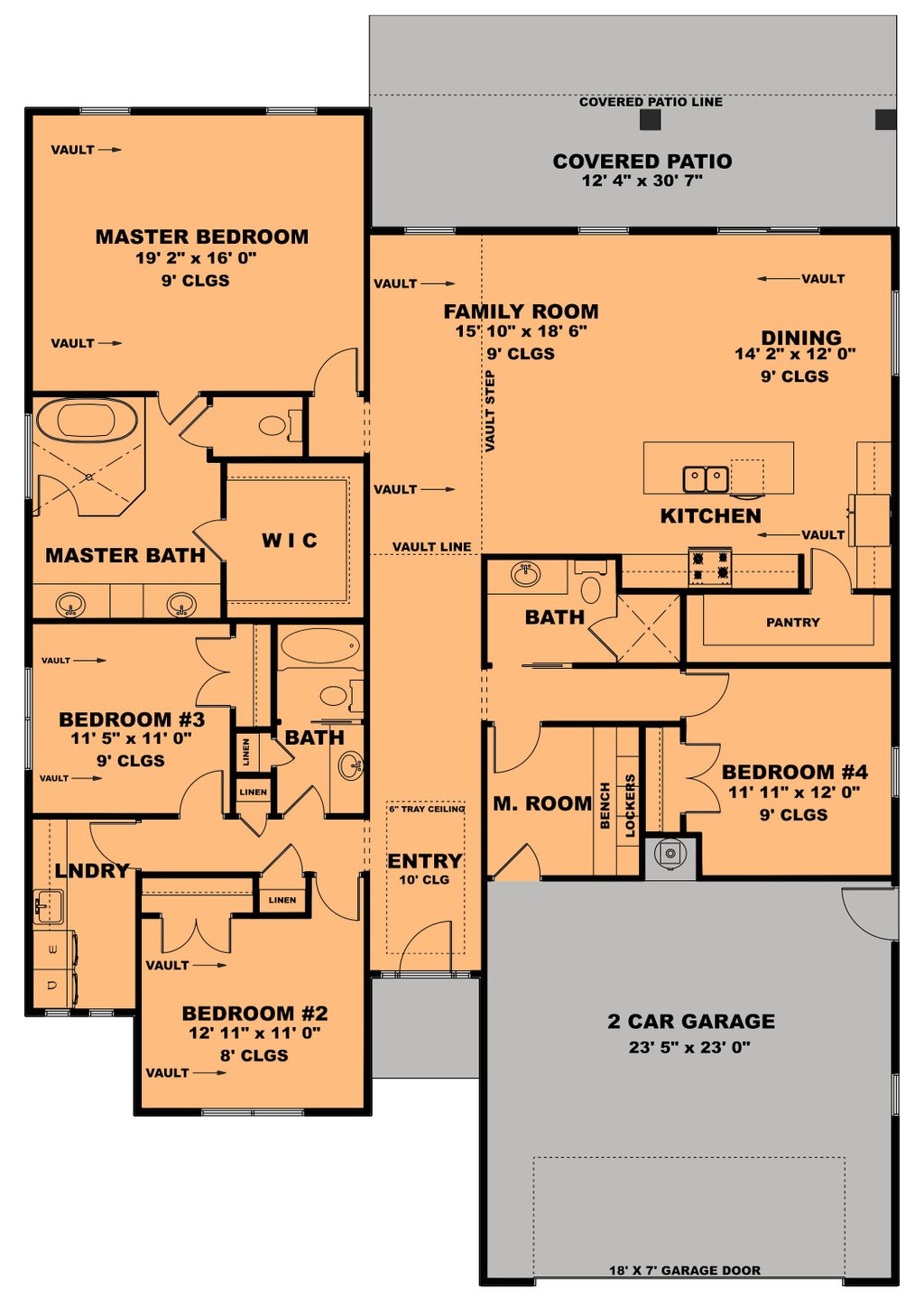

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
- Overhead Roof Plan(s): Shows the hips, valleys, pitch, and gables of the roof as if you were looking down upon the home.
- Cross Section(s): A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Electrical Plan(s): Drawn to 1/4" scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): Disclaimers, code notes, and other items of importance from the designer.
Plan Set
$1185.75
Foundation
$0.00
$382.50
$382.50
$382.50
$382.50
Framing
$0.00
$250.75
Additional Options
$208.25
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
