PLAN #513-2061

Key Specs


2317
sq ft

5
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #513-2061

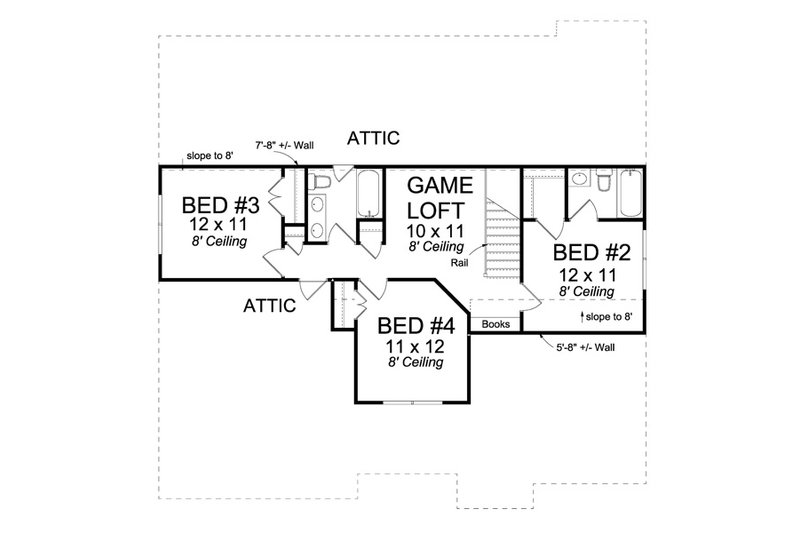

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #513-2061

Full Specs & Features


Dimension
Depth : 49'
Height : 24'
Width : 49'
Area
First Floor: 1496 sq/ft height 9'
Garage: 492 sq/ft
Second Floor: 821 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : stick
Roof Load : 30
Primary Pitch : 8:12
Secondary Pitch : 8:12
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

width 5' x depth 8' 4"

Bathroom 3:

width 7' 6" x depth 7' 4"

Bedroom 2:

width 12' x depth 11'

Bedroom 3:

width 12' x depth 11'

Bedroom 4:

width 11' x depth 12'

Bedroom 5:

width 12' x depth 11' 6"

Dining Room:

width 10' x depth 12'

Foyer:

width 5' x depth 10'

Kitchen:

width 10' x depth 12'

Kitchen Island:

width 6' x depth 6' 3"

Living Room:

width 16' x depth 20'

Loft:

width 10' x depth 11'

Master Bathroom:

width 8' 4" x depth 9' 4"

Master Bedroom:

width 12' x depth 16'

Master Closet:

width 7' x depth 8'

Pantry:

width 4' x depth 4'

Porch - Front:

150 sq/ft

Porch - Rear:

63 sq/ft

Porch Left Side:

57 sq/ft

Study:

width 11' x depth 12'

Utility Room:

width 6' x depth 7'
