PLAN 126-227

European Exterior - Front Elevation Plan #126-227

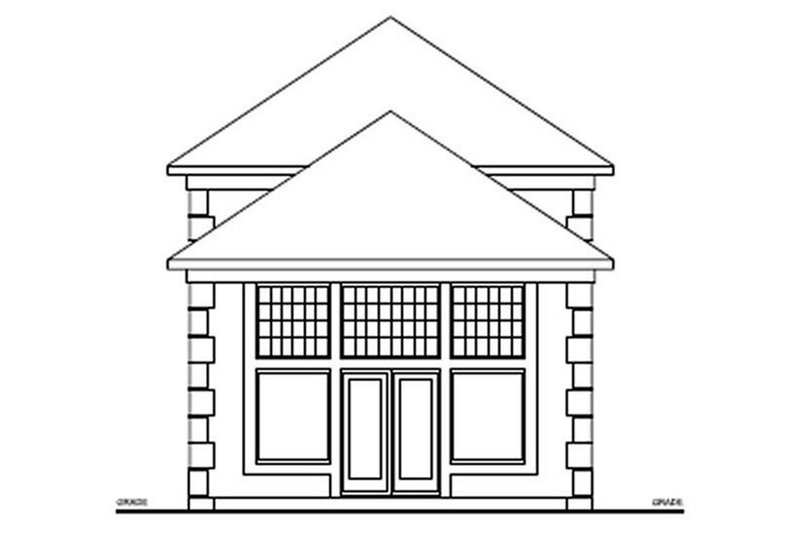

European Exterior - Rear Elevation Plan #126-227

Key Specs


2321
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$50.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$1170.00
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 126-227

Key Specs


2321
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

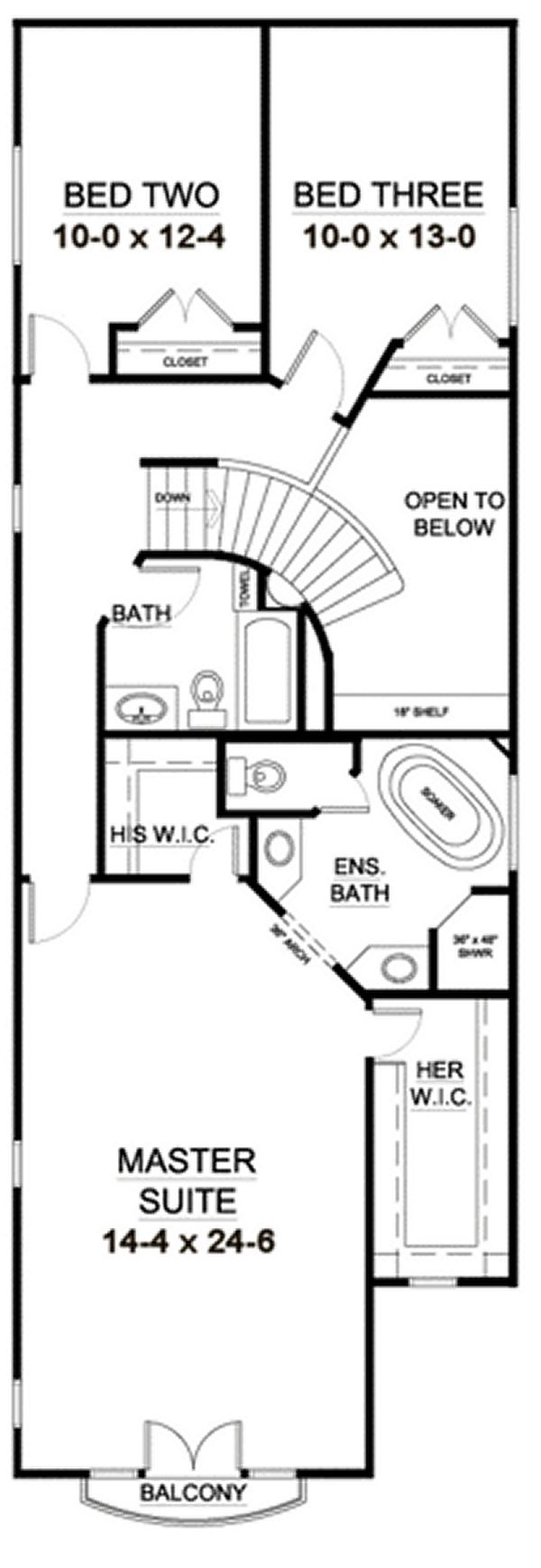

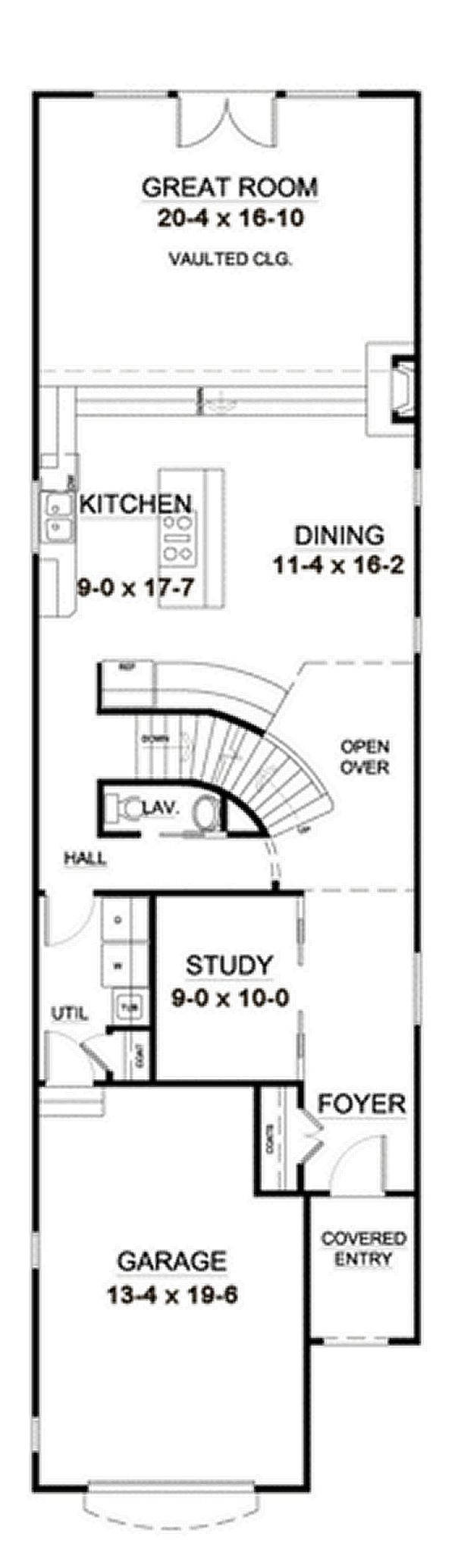

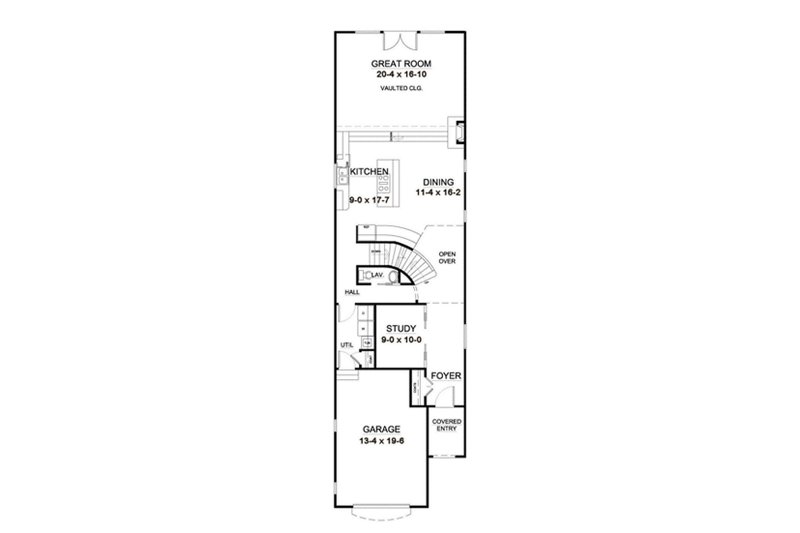

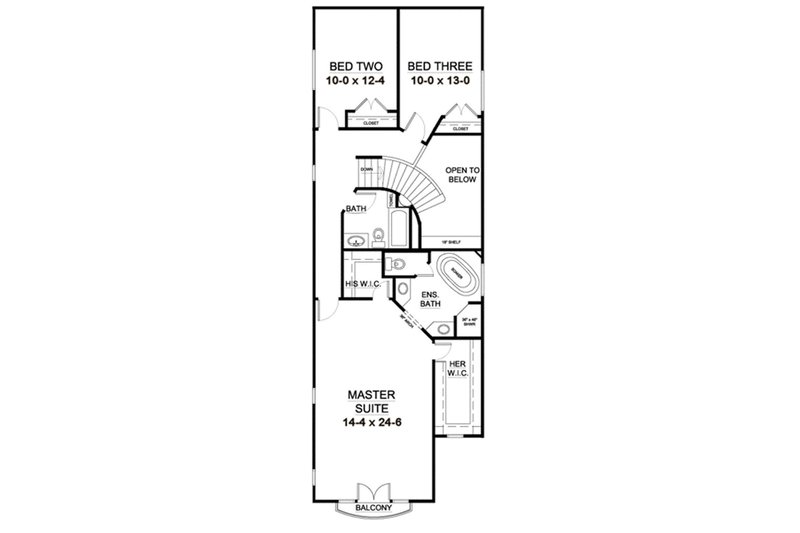

With the flexible traffic flow usually found only in larger homes and the visually impressive use of space, both in the layout and the use of volume ceilings, this design tricks you into forgetting it is only 21 feet wide! The Covered Entry is set just back of the front, resulting in a convenient and aesthetic approach. The Foyer opens into a wide Flex Room with a two-storey ceiling open to the second floor immediately creating a spacious feel. The living area is open with a vault in the Great Room as well. There is a spacious Utility Room, adjacent to a well-placed Powder Room, with access to the Garage. Upstairs are two large Bedrooms and a full Bath accessed from a wide Hall. Finally, the Master Suite; complete with a Sitting Area, balcony, and an exceptional Ensuite Bath and His and Her Closets!

Full Specs & Features


Dimension
Depth : 76'
Height : 24' 3"
Width : 21'
Area
Basement : 1188 sq/ft
Garage : 312 sq/ft
Main Floor : 1188 sq/ft
Upper Floor : 1133 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 9' 4"
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 40
Roof Type : Standard
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2x6
Insulation : Fiberglass Batt
Bedroom Features
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Unfinished Future Space
Garage Features
Front Entry Garage
Garage Under
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Additional Half Bath
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details
  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set :
$1170.00
5 printed plan sets mailed to you.
8 Copy Set :
$1260.00
8 printed plan sets mailed to you.
PDF Print Set :
$1330.00
A non-modifiable, print only PDF file
CAD Set :
$1730.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$1035.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Walk Out Basement:
$495.00
Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License :
$500.00
Additional Use License.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List :
$105.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License :
$250.00
Unlimited Use License.

*Alternate Foundations may take time to prepare.
