PLAN #23-744

Key Specs


2350
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

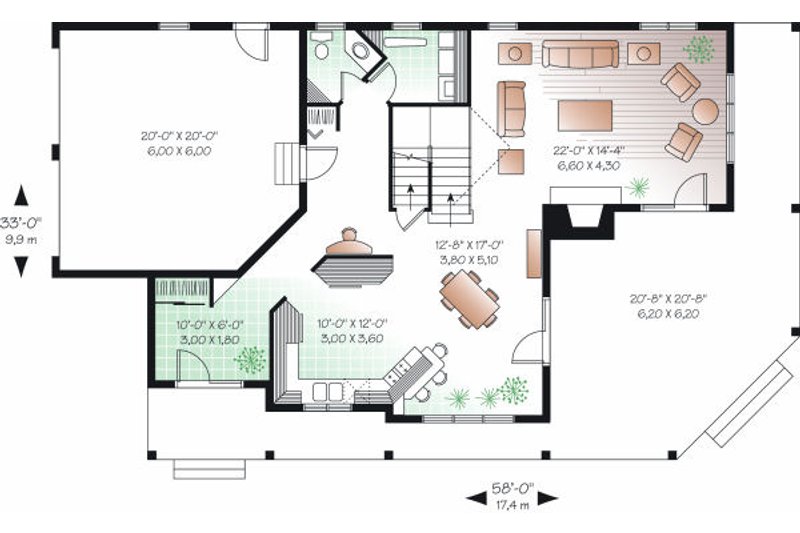

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #23-744

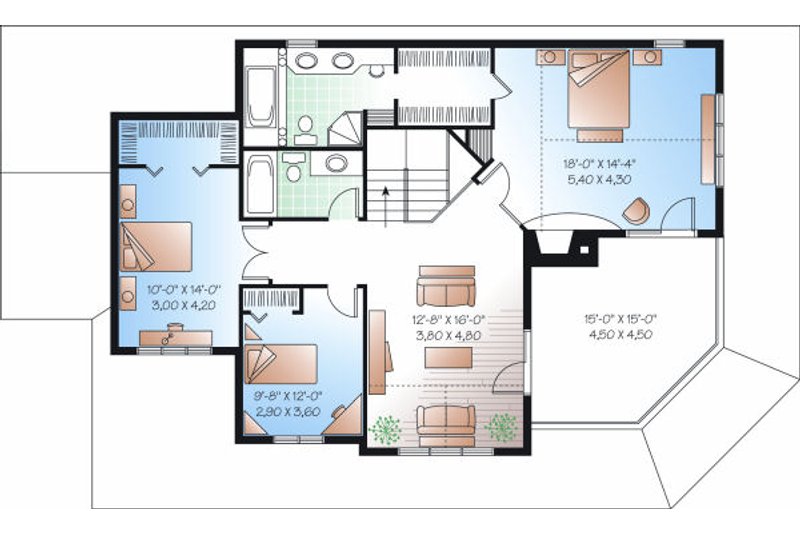

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #23-744

Full Specs & Features


Dimension
Depth : 33'
Height : 34'
Width : 58'
Area
First Floor: 1107 sq/ft
Garage: 420 sq/ft
Second Floor: 1243 sq/ft
Ceiling
Main Ceiling : 9'
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Master Sitting Area
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Wrap Around Porch
More
Suited For Vacation Home
Rooms

3rd BR Closet:

9 sq/ft width 4' 8" x depth 2'

Balcony:

225 sq/ft width 15' x depth 15'

Bathroom 2:

46 sq/ft width 9' 4" x depth 5'

Bedroom 2:

140 sq/ft width 10' x depth 14'

Bedroom 2 Closet:

40 sq/ft width 10' x depth 4'

Bedroom 3:

116 sq/ft width 9' 8" x depth 12'

Bedroom 3 Closet:

40 sq/ft width 10' x depth 4'

Coat Closet:

10 sq/ft width 5' x depth 2'

Garage:

400 sq/ft width 20' x depth 20'

Hall Closet:

4 sq/ft width 2' 4" x depth 2'

Kitchen:

120 sq/ft width 10' x depth 12'

Laundry Room:

45 sq/ft width 7' 6" x depth 6'

Living Room:

315 sq/ft width 22' x depth 14' 4"

Master Bathroom:

99 sq/ft width 12' x depth 8' 4"

Master Bedroom:

257 sq/ft width 18' x depth 14' 4"

Master Sitting Room:

202 sq/ft width 12' 8" x depth 16'

Porch - Front:

427 sq/ft width 20' 8" x depth 20' 8"

Walk-In Closet:

46 sq/ft width 6' x depth 7' 8"

What's Included In This Plan Set


Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
