PLAN #21-389

Key Specs


2358
sq ft

1
Beds

1
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This full featured apartment barn design includes a drive through tractor storage, hay storage, tack/feed room, 2 stalls, a live in apartment, and hay loft above.

Floor Plans

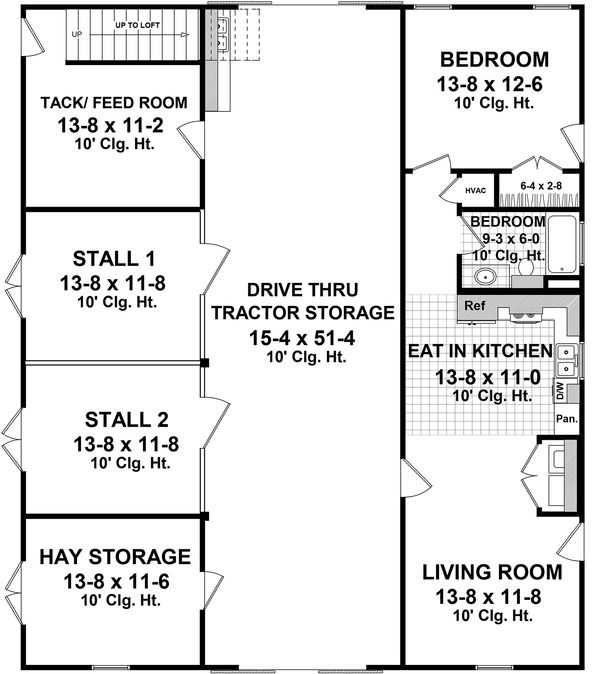

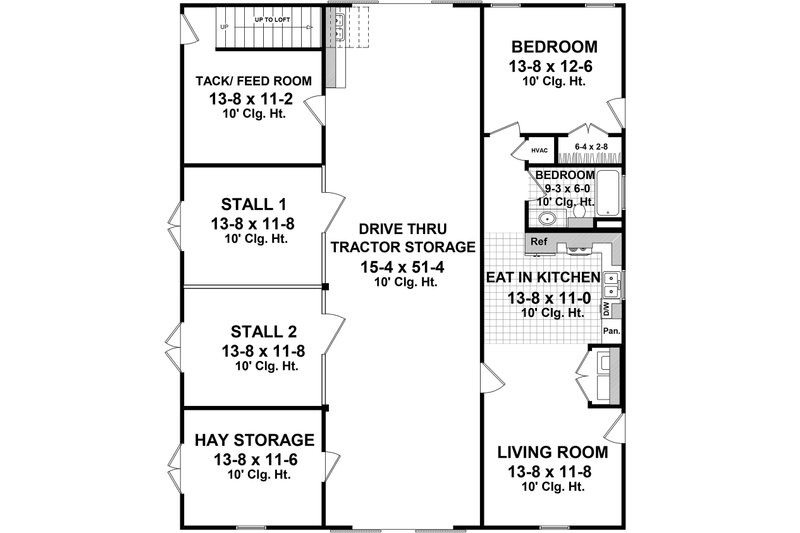

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #21-389

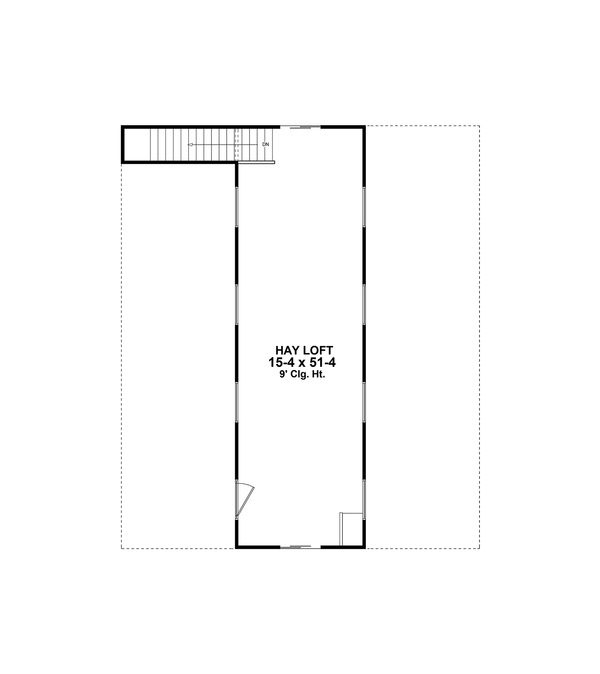

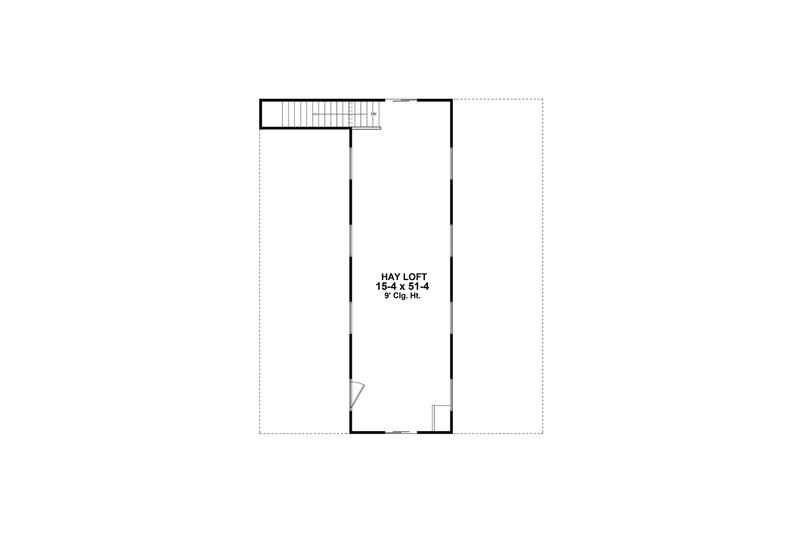

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #21-389

Full Specs & Features


Dimension
Depth : 52'
Height : 26' 3"
Width : 44'
Area
Main Floor : 741 sq/ft
Storage : 2358 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Stick
Roof Load : 40 psf
Primary Pitch : 4.5:12
Secondary Pitch : 8:12
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms

What's Included In This Plan Set


  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
