PLAN #929-518

Key Specs


2359
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

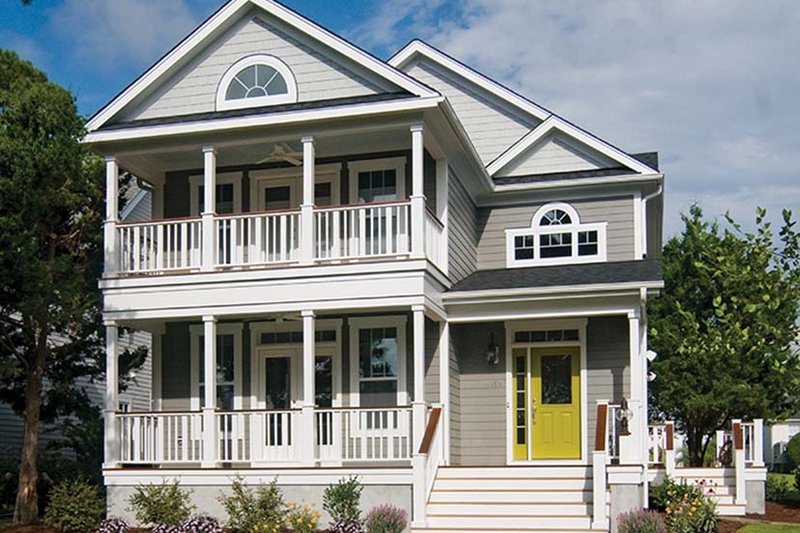

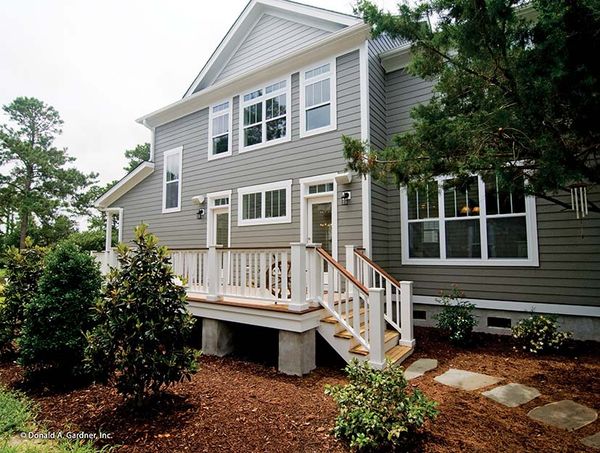

This beautiful coastal home nicely fits onto a narrow lot. Inside, the kitchen overlooks both the family and dining rooms, with the fireplace-warmed living room nearby. A front porch and side deck on this level offer space for outdoor entertaining, while upstairs, the master suite includes a private porch. Also in the master suite, a fireplace adds romantic ambiance to the bedroom and two walk-in closets line the way to the spacious bathroom. Two more bedrooms share a Jack and Jill bath.

Floor Plans

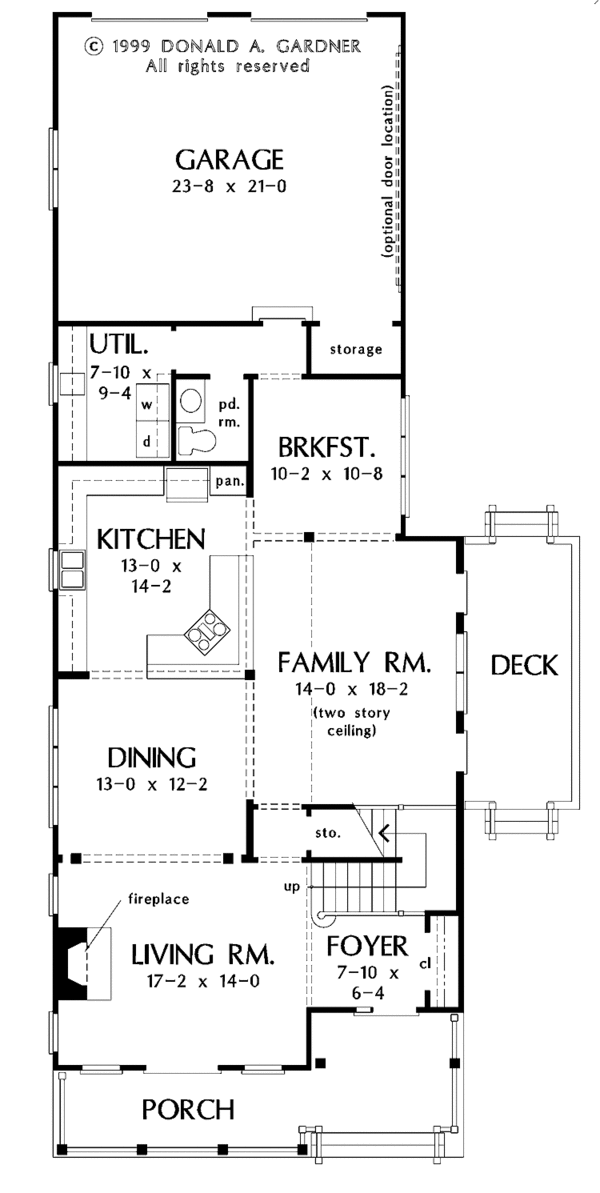

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #929-518

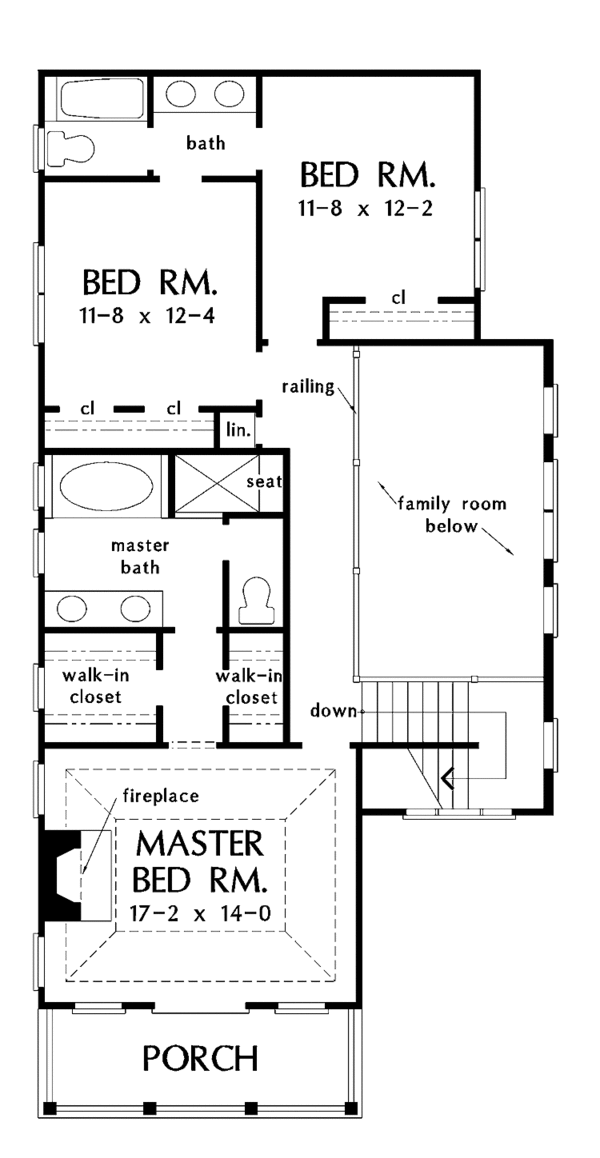

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #929-518
Floor Plan - Other Floor Plan
Country Floor Plan - Other Floor Plan Plan #929-518

Full Specs & Features


Dimension
Depth : 79'
Height : 29' 5"
Width : 28' 4"
Area
First Floor: 1339 sq/ft height 9'
Garage: 543 sq/ft
Porch: 296 sq/ft
Second Floor: 1020 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Rear Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
More
Jack & Jill Bath
Rooms

3rd BR Closet:

16 sq/ft width 8' x depth 2'

Bathroom 2:

60 sq/ft width 11' x depth 5' 6"

Bedroom 2:

143 sq/ft width 11' 8" x depth 12' 4"

Bedroom 2 Closet:

18 sq/ft width 9' 4" x depth 2'

Bedroom 3:

141 sq/ft width 11' 8" x depth 12' 2"

Bedroom 3 Closet:

18 sq/ft width 9' 4" x depth 2'

Breakfast Room:

108 sq/ft width 10' 2" x depth 10' 8"

Deck:

150 sq/ft width 8' x depth 18' 10"

Dining Room:

158 sq/ft width 13' x depth 12' 2"

Foyer:

49 sq/ft width 7' 10" x depth 6' 4"

Garage:

497 sq/ft width 23' 8" x depth 21'

Garage Storage:

20 sq/ft width 6' 2" x depth 3' 4"

Gathering Room:

254 sq/ft width 14' x depth 18' 2"

Hall Closet:

4 sq/ft width 2' x depth 2'

Kitchen:

184 sq/ft width 13' x depth 14' 2"

Living Room:

240 sq/ft width 17' 2" x depth 14'

Master Bathroom:

125 sq/ft width 13' 2" x depth 9' 6"

Master Bedroom:

240 sq/ft width 17' 2" x depth 14'

Master Closet:

37 sq/ft width 6' 2" x depth 6'

Porch - Front:

169 sq/ft width 28' 4" x depth 6'

Porch - Rear:

106 sq/ft width 17' 10" x depth 6'

Powder Room:

28 sq/ft width 5' x depth 5' 8"

Utility Room:

73 sq/ft width 7' 10" x depth 9' 4"

Walk-In Closet:

12 sq/ft width 2' x depth 6' 4"

What's Included In This Plan Set


Donald A. Gardner charges $100.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.

Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

  • Cover Sheet - A rendering of the front exterior of the house.
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
  • Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

» See important information before purchasing.

Plan Set

5 Copy Set :
$900.00
5 printed plan sets mailed to you.
8 Copy Set :
$967.50
8 printed plan sets mailed to you.
PDF Set :
$1201.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1201.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2151.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$814.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$256.50
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
72.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
162.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.
