PLAN 17-3314

Craftsman Exterior - Rear Elevation Plan #17-3314

Select Plan Set Options

What's included?

	Right-Reading Reverse $179.10 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $67.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1080.00

You save $120.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 17-3314

Key Specs

2373
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Dramatic yet down-to-earth, this roomy plan features gorgeous timber beams and stone accents on the exterior, with an interior that centers on the spacious great room and kitchen. Windows blanket the back of the house to let light into the hearth-warmed gathering area. To the left, the generous master suite includes a corner whirlpool tub, seated shower, and walk-in closet, with the laundry room conveniently nearby. On the opposite side two family bedrooms share a bath, with the study functioning as another bedroom if needed.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

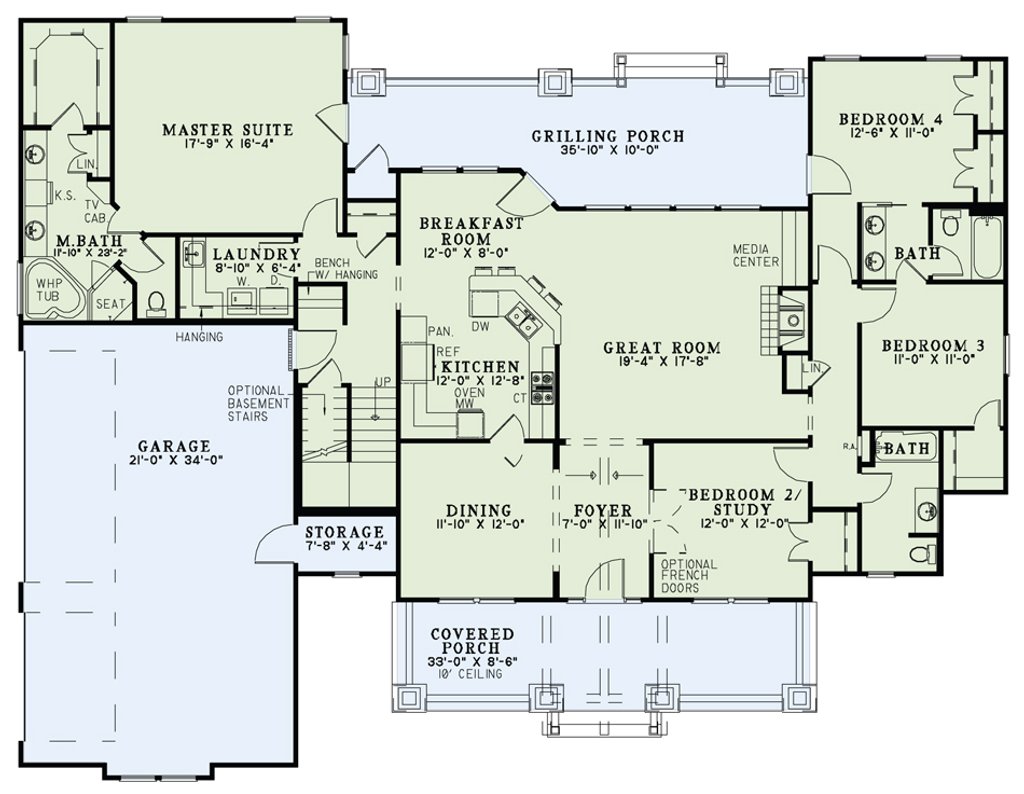

Craftsman Floor Plan - Main Floor Plan Plan #17-3314

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Other Floor Plan

Reverse

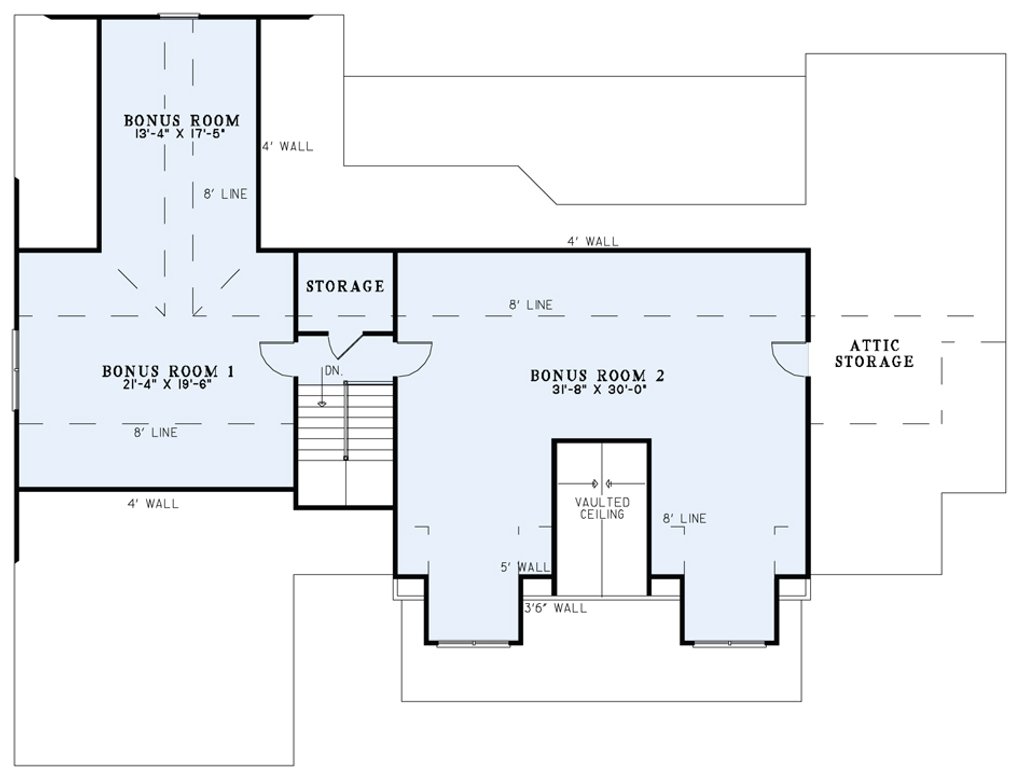

Craftsman Floor Plan - Other Floor Plan Plan #17-3314

Full Specs & Features

Dimension

Depth : 59' 2"
Height : 26' 2"
Width : 76' 10"

Area

Bonus: 1542 sq/ft height 8'
First Floor: 2373 sq/ft height 9'
Garage: 783 sq/ft height 9'
Porch: 597 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4

Bedroom Features

Formal Dining Room

Kitchen Features

Breakfast Nook
Kitchenette Wet Bar

Additional Room Features

Great Room Living Room
Unfinished Future Space

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 4:

137 sq/ft width 12' 6" x depth 11'

Breakfast Room:

96 sq/ft width 12' x depth 8'

Covered Porch:

280 sq/ft width 33' x depth 8' 6"

Foyer:

82 sq/ft width 7' x depth 11' 10"

Garage:

714 sq/ft width 21' x depth 34'

Garage Storage:

33 sq/ft width 7' 8" x depth 4' 4"

Great Room:

341 sq/ft width 19' 4" x depth 17' 8"

Grilling Porch:

358 sq/ft width 35' 10" x depth 10'

Kitchen:

152 sq/ft width 12' x depth 12' 8"

Laundry Room:

55 sq/ft width 8' 10" x depth 6' 4"

Master Suite:

289 sq/ft width 17' 9" x depth 16' 4"

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

» See important information before purchasing.

Questions? Call 1-800-447-0027

Plan Set

PDF Set : $1080.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1170.00	5 printed plan sets mailed to you.
5 Copy and PDF Set : $1395.00	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $2160.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $269.10	Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4: $0.00	Wood 2x4
Wood 2x6: $269.10	Wood 2x6

Additional Options

Right-Reading Reverse : $179.10	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $67.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
