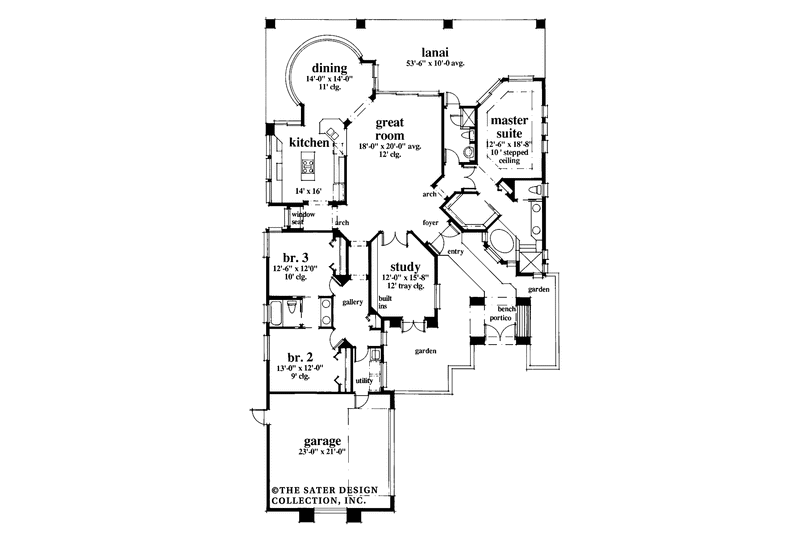

This sunny design opens through double doors into the great room. A rounded dining area contributes a sense of the dramatic and is easily served by the roomy kitchen. A relaxing study also provides outdoor access. Two secondary bedrooms enjoy ample closet space and share a bath that includes dual vanities. In the master suite, a tiered ceiling and lots of windows gain attention. A luxury bath with a compartmented toilet, a garden tub, dual vanities and a separate shower also offers a walk-in closet. A bath with a stall shower serves the outdoor living areas.
3rd BR Closet:
16 sq/ft width 8' x depth 2'
65 sq/ft width 11' 10" x depth 5' 6"
156 sq/ft width 12' x depth 13'
Bedroom 2 Closet:
16 sq/ft width 8' 4" x depth 2'
150 sq/ft width 12' x depth 12' 6"
Bedroom 3 Closet:
16 sq/ft width 8' 4" x depth 2'
196 sq/ft width 14' x depth 14'
483 sq/ft width 23' x depth 21'
360 sq/ft width 18' x depth 20'
32 sq/ft width 4' x depth 8'
4 sq/ft width 2' 6" x depth 1' 8"
220 sq/ft width 15' 9" x depth 14'
139 sq/ft width 13' 6" x depth 10' 4"
233 sq/ft width 12' 6" x depth 18' 8"
55 sq/ft width 8' 6" x depth 6' 6"
Porch - Rear:
749 sq/ft width 53' 6" x depth 14'
61 sq/ft width 6' 2" x depth 10'
188 sq/ft width 12' x depth 15' 8"
44 sq/ft width 5' 4" x depth 8' 4"
Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection. Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.
Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site. Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced. Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable). Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location. Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information. Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section. Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings. Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations. Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings. Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section. Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home. Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.» See important information before purchasing.
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|Stem Wall Foundation:
|Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
