PLAN 1083-4
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (1)
Get Personalized Help
Key Specs
2397
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1083-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Designed for small properties, this home has features seen in some of our larger homes. A stylish front elevation complimented with shutters, wrought iron and precast details will greet its owners everyday. A large tower entrance brings one into the foyer which leads to the open great room, kitchen and dining concept. The primary wing has his and hers walk in closets, dual vanities, a large soaking tub and walk around shower. Enjoy your favorite beverage at the wet bar in the great room which is located perfectly for serving drinks in the study. On the opposite side of the home 2 guest suites both with their own bathrooms complete the space. A mud room, pantry and utility all provide themselves before entering the kitchen. The covered lanai extends almost across the entire back of the house, making this a place to call home everyday.
Floor Plans

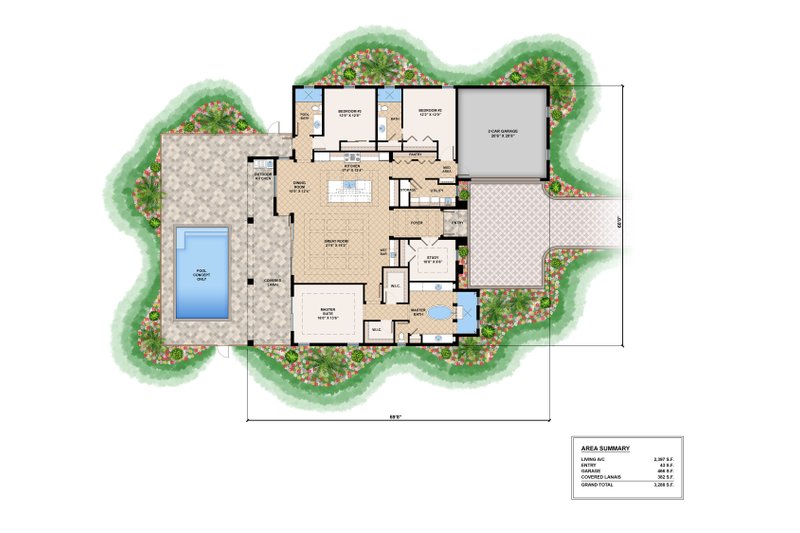

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 69' 8"
Height : 28' 5"
Width : 60'
Area
Garage : 466 sq/ft
Main Floor : 2397 sq/ft
Patios : 382 sq/ft
Porch : 43 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Beamed ceiling in foyer, kitchen and great room
Main Ceiling : 10'
Upper Ceiling Ft : 12'
Roof
Primary Pitch : 6:12
Roof Type : Trusses
Exterior Wall Framing
Exterior Wall Finish : Stucco
Bedroom Features
Guest Suite
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Outdoor Kitchen Grill
Screened Porch
More
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
- Floor Plan(s): Include: Door / Window sizes, completely dimensioned floor plan, room labels and interior sizes, electrical layouts, building section markers, all electrical outlets, fixtures and switching, building section markers, floor / deck joist size / spacing, rough-in plumbing location, mechanical equipment locations, electrical locations
- Exterior Elevations: Include: Material labels, roof Slope indicators and floor to Floor Heights
- Overhead Roof Plan(s): All beam and header heights and locations, all hips, gables, ridges, and valleys, building section markers
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): Miscellaneous general notes and stairway details (if applicable)
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1912.50
$1912.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$467.50
$467.50
Wood 2x4 Exterior Walls
Wood 2x6:
$467.50
$467.50
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
