PLAN 1107-49
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

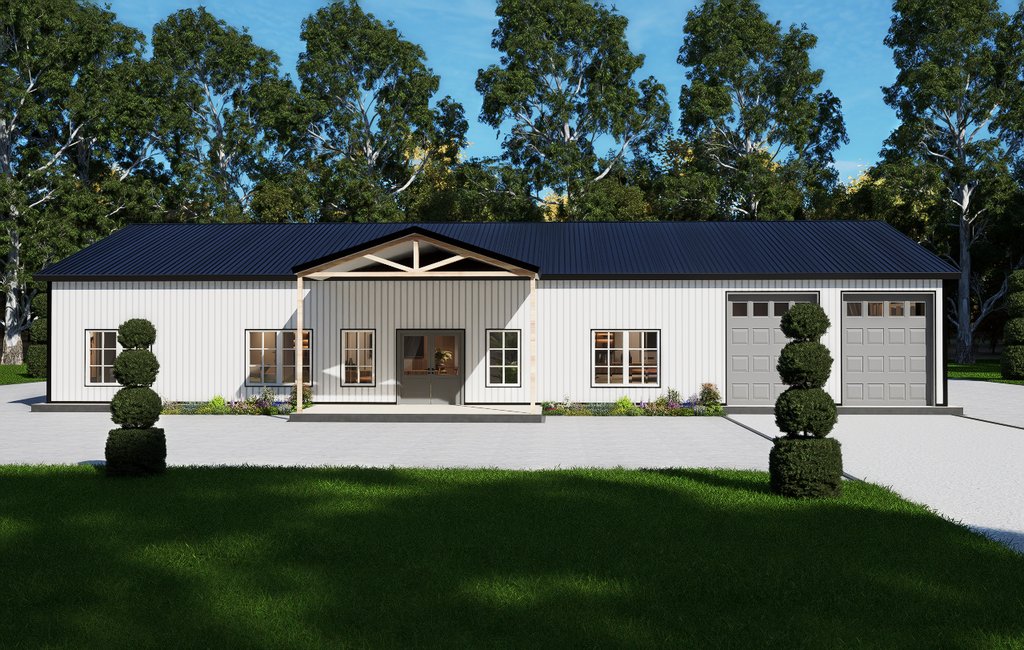

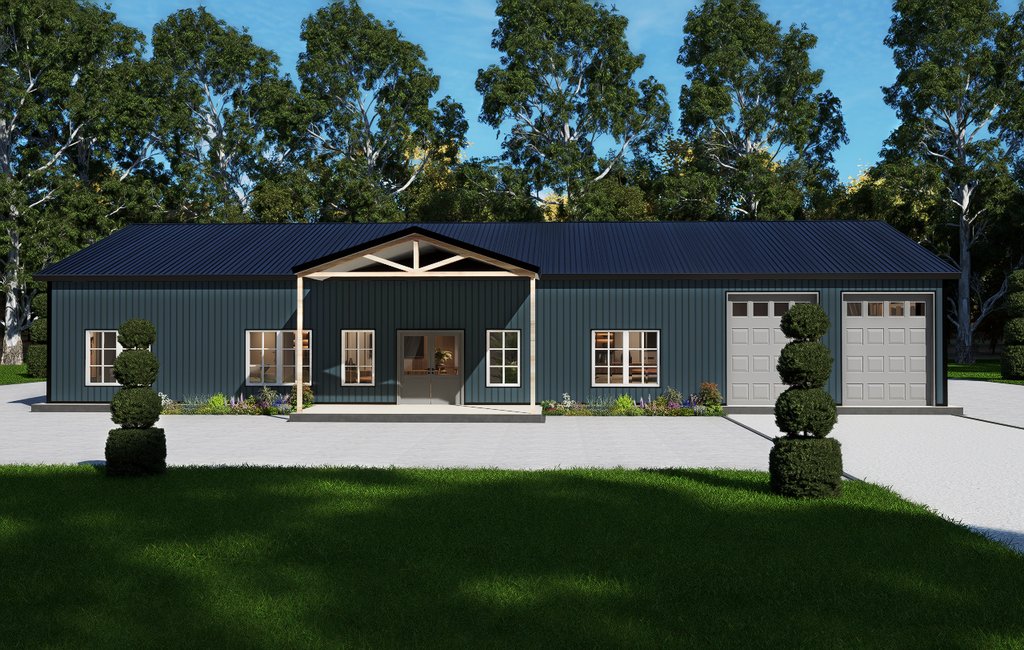

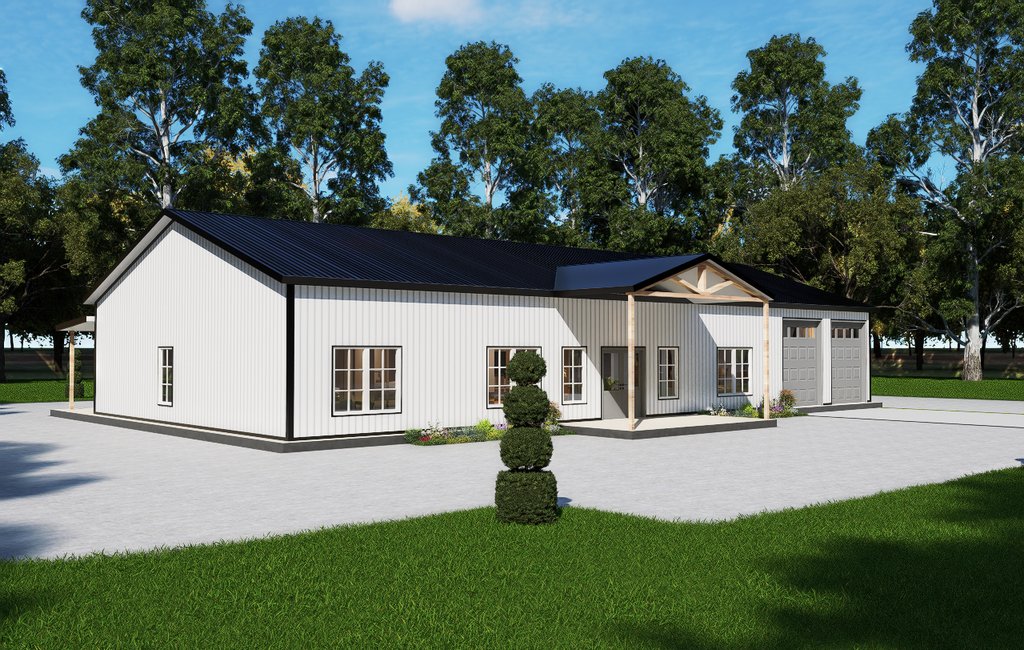

A Practical and Spacious Barndominium This home is a beautifully designed barndominium that balances comfort, function, and modern convenience. With 2,400 square feet of living space, an 800-square-foot garage, and 800 square feet of covered porch area, this home offers plenty of room for family life, entertaining, and everyday living. Inside, the open-concept layout flows seamlessly between the living, kitchen, and dining spaces. The kitchen is a chef’s dream, featuring an oversized walk-in pantry and generous counter space, perfect for both daily meals and hosting gatherings. The primary suite serves as a private retreat, complete with a large walk-in closet and a spacious bathroom that includes a walk-in shower and double vanity. Two additional bedrooms, each with their own walk-in closets, ensure comfort and storage for family members or guests. A half bath adds extra convenience for visitors. Designed with practicality in mind, this plan includes a mud/laundry room that helps keep the home organized, as well as a dedicated home office. A versatile game/family/play room provides flexible space for entertainment, hobbies, or relaxation. The 800-square-foot garage features a large storage area, perfect for keeping seasonal items such as holiday and Christmas decorations neatly tucked away. Blending thoughtful design with everyday functionality, this design is an ideal home for families looking for comfort, style, and practicality all under one roof.
Floor Plans

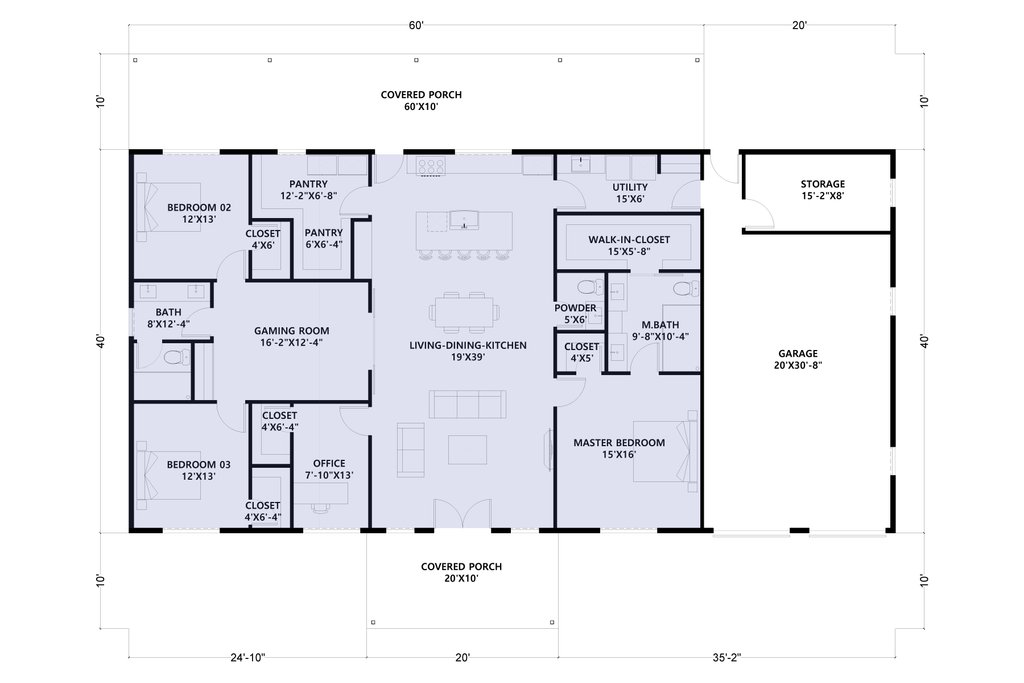

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 40'
Height : 18' 8"
Width : 80'
Area
Garage : 800 sq/ft
Main Floor : 2400 sq/ft
Porch : 800 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Eave Height - 12' / Peak Height - 18'8"
Main Ceiling : 10'
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : PBR
Exterior Wall Framing
Exterior Wall Finish : PBR
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-447-0027
Plan Set
PDF Master Set:
$1400.00
$1400.00
An unlocked, modifiable PDF file
5 Copy and PDF Set:
$1600.00
$1600.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2200.00
$2200.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2950.00
$2950.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$250.00
$250.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$350.00
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Metal (PEMB):
$325.00
$325.00
Designed for use as a PEMB (Pre-Engineered Metal Building) using Z8 metal framing with insulated panels on the exterior and 2x4" studs for the interior.
Wood 2x4:
$325.00
$325.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$245.00
$245.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$100.00
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$750.00
$750.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
