Key Specs
2417
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 310-673
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

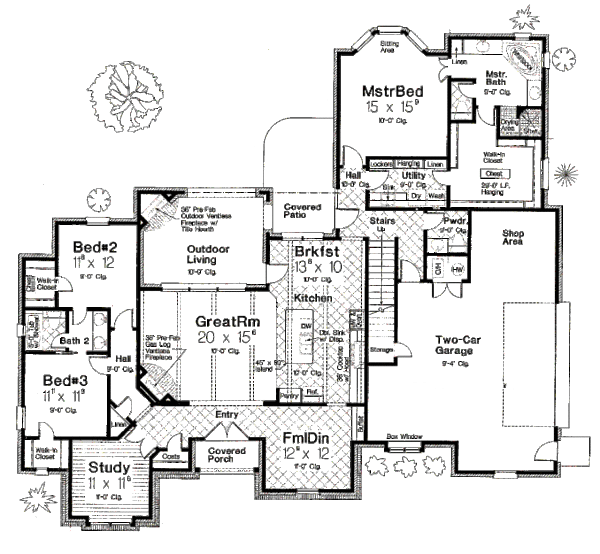

Floor Plans
Full Specs & Features
Dimension
Depth : 69'
Height : 29'
Width : 74'
Area

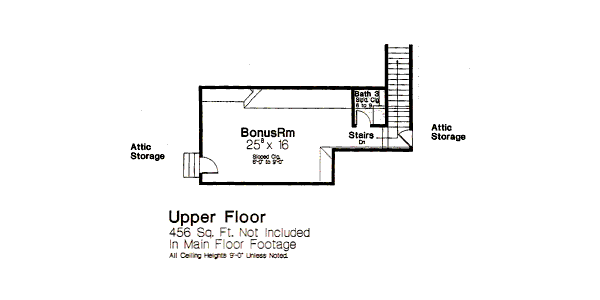

Bonus: 456 sq/ft height 9'
First Floor: 2417 sq/ft height 9'
Garage: 707 sq/ft height 8' 4"
Ceiling
Ceiling Details : Ceiling Height on main level is from 9' - 10' as noted.
Main Ceiling : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : Wood - 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Play Flex Room
Storage Area
Workshop
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
121 sq/ft width 11' x depth 11'
Bonus Room - Unfinished:
410 sq/ft width 25' 8" x depth 16'
Breakfast:
136 sq/ft width 13' 8" x depth 10'
Dining Room:
144 sq/ft width 12' x depth 12'
Great Room:
300 sq/ft width 20' x depth 15'
Kitchen:
186 sq/ft width 12' x depth 15' 6"
Master Bedroom:
236 sq/ft width 15' x depth 15' 9"
Study:
126 sq/ft width 11' x depth 11' 6"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$1045.00
$1185.00
$1335.00
$1335.00
$2015.00
$990.00
Foundation
$0.00
Additional Options
$50.00
$100.00
$39.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
