Key Specs


2424
sq ft

3
Beds

0
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Updated version of a builder favorite has all the comforts for a family who entertains. Library can double as a formal dining room if the dining is converted to a 4th bedroom. Open kitchen has a serving bar ready for bar stools, generous cabinet space as well as a walk-in pantry. Master suite has 2 vanities, large shower & garden tub. Stone & cedar details on the elevation add warmth & charm.

Floor Plans

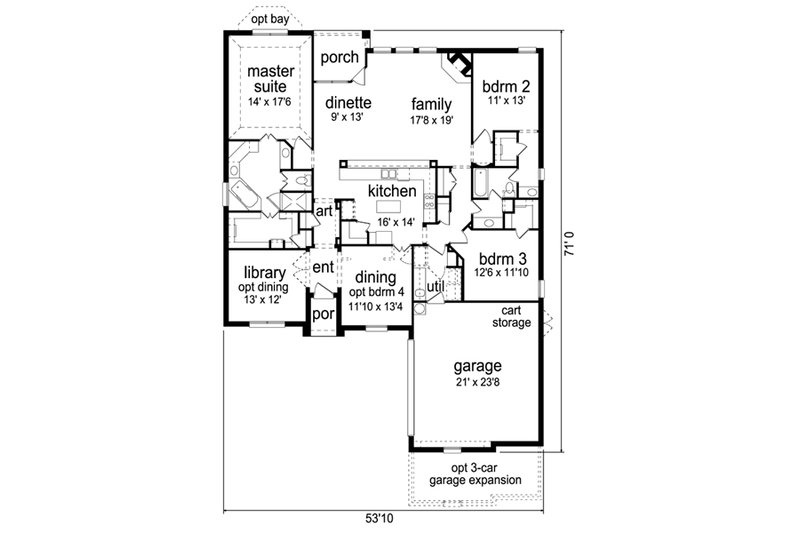

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-561

Full Specs & Features


Dimension
Depth : 71'
Height : 28' 9"
Width : 53' 10"
Area
First Floor: 2424 sq/ft height 9'
Garage: 575 sq/ft height 9'
Ceiling
Garage Ceiling : 9'
Main Ceiling : 9'
Roof
Roof Framing : stick
Primary Pitch : 10:12
Roof Type : gables
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Storage Area
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
Wrap Around Porch
More
Jack & Jill Bath
Suited For Vacation Home
Code Compliance
Irc 2003
Rooms

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 3:

147 sq/ft width 12' 6" x depth 11' 10"

Dinette:

117 sq/ft width 9' x depth 13'

Dining Room:

157 sq/ft width 11' 10" x depth 13' 4"

Family Room:

335 sq/ft width 17' 8" x depth 19'

Garage:

497 sq/ft width 21' x depth 23' 8"

Kitchen:

224 sq/ft width 16' x depth 14'

Library:

156 sq/ft width 13' x depth 12'

Master Bedroom:

245 sq/ft width 14' x depth 17' 6"

What's Included In This Plan Set


  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

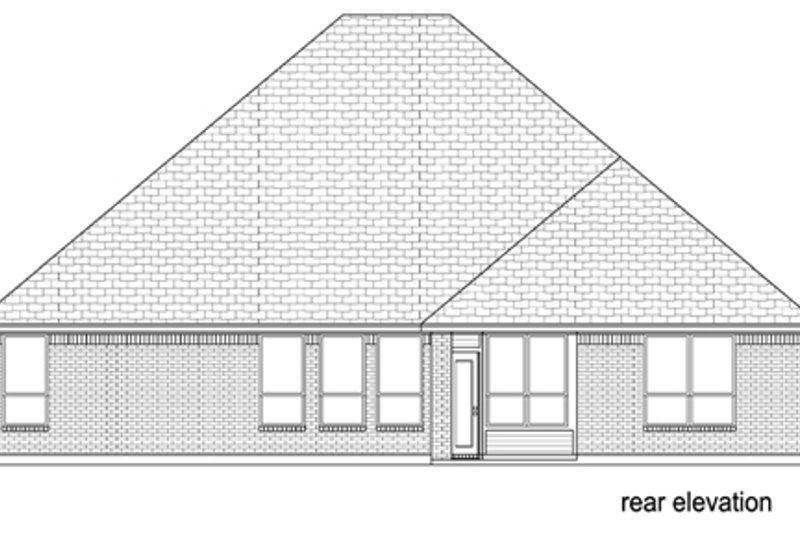

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
