PLAN 17-2913
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

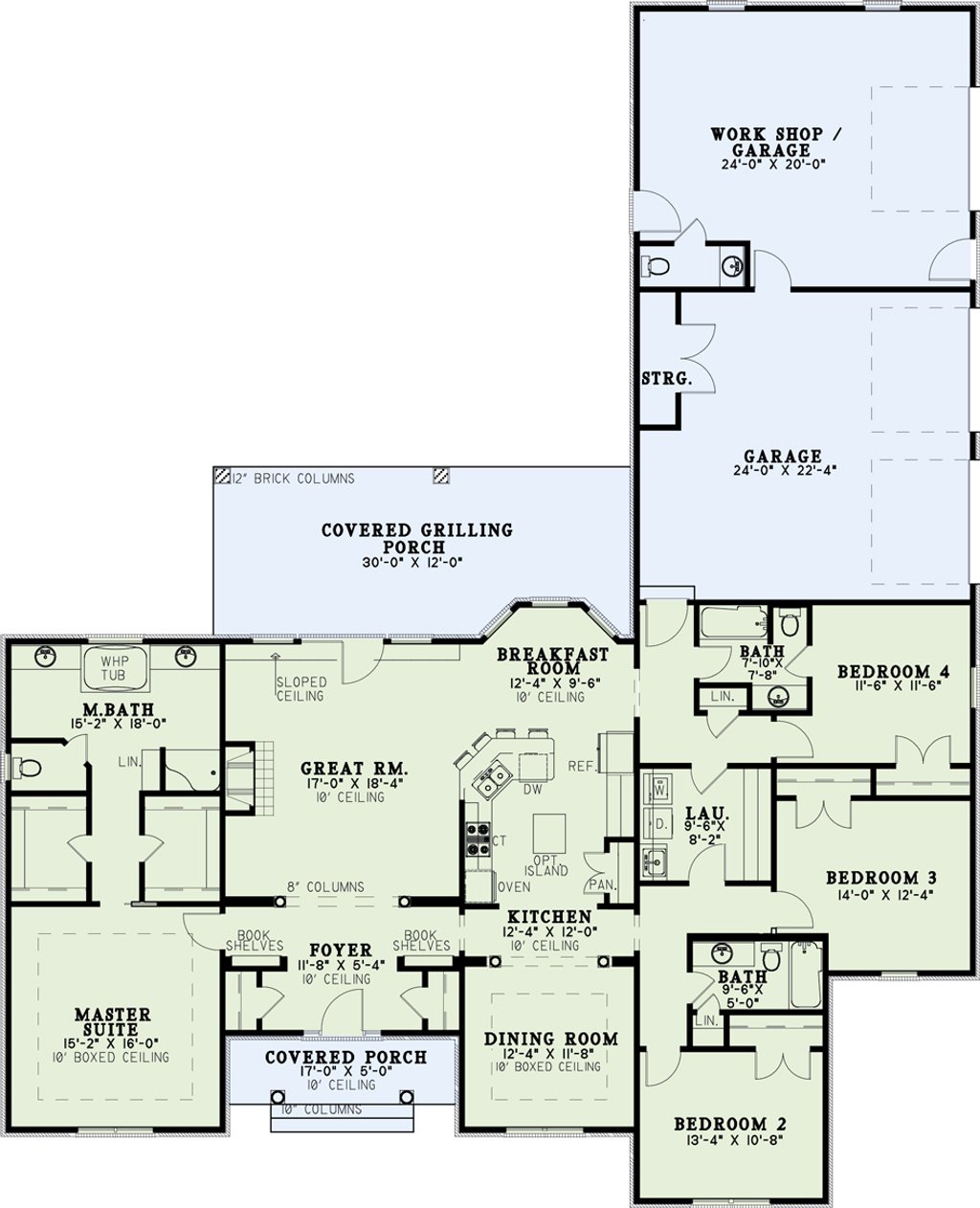

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 86' 8"
Height : 10' 4"
Width : 70' 2"
Area
First Floor: 2424 sq/ft height 9'
Garage: 1060 sq/ft
Porch: 447 sq/ft
Roof
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Workshop
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
47 sq/ft width 9' 6" x depth 5'
Bathroom 3:
60 sq/ft width 7' 10" x depth 7' 8"
Bedroom 2:
142 sq/ft width 13' 4" x depth 10' 8"
Bedroom 3:
172 sq/ft width 14' x depth 12' 4"
Bedroom 4:
132 sq/ft width 11' 6" x depth 11' 6"
Breakfast Room:
117 sq/ft width 12' 4" x depth 9' 6"
Covered Porch:
85 sq/ft width 17' x depth 5'
Dining Room:
143 sq/ft width 12' 4" x depth 11' 8"
Foyer:
62 sq/ft width 11' 8" x depth 5' 4"
Garage:
535 sq/ft width 24' x depth 22' 4"
Garage Two:
480 sq/ft width 24' x depth 20'
Great Room:
311 sq/ft width 17' x depth 18' 4"
Grilling Porch:
360 sq/ft width 30' x depth 12'
Kitchen:
147 sq/ft width 12' 4" x depth 12'
Laundry Room:
77 sq/ft width 9' 6" x depth 8' 2"
Master Bathroom:
273 sq/ft width 15' 2" x depth 18'
Master Suite:
242 sq/ft width 15' 2" x depth 16'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

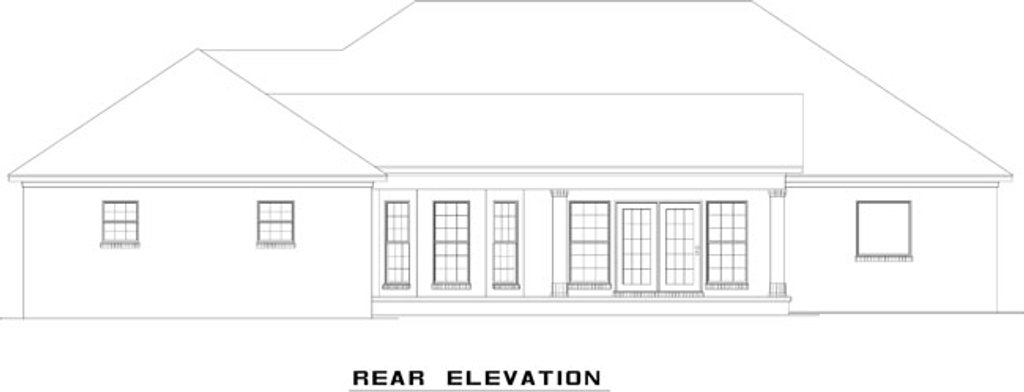

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1000.00
$1100.00
$1350.00
$1700.00
$2000.00
$2000.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$100.00
$395.00
$39.00
$149.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
