PLAN #437-41

Select Plan Set Options
What's included?
Subtotal
$1300.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #437-41

Key Specs


2424
sq ft

4
Beds

4
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

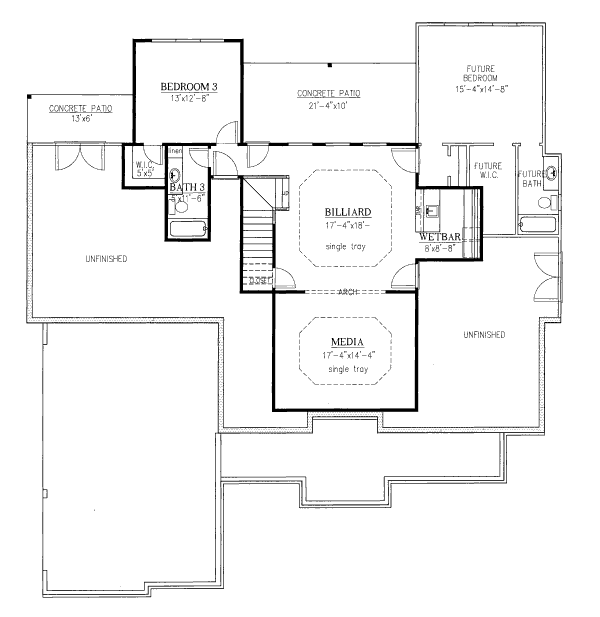

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

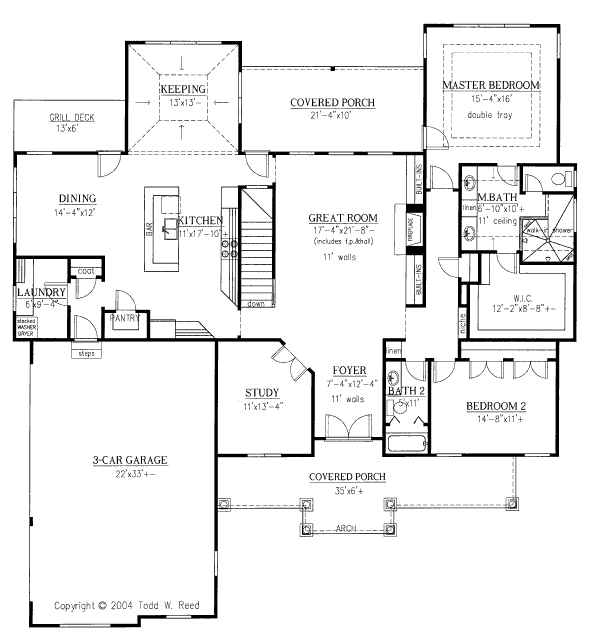

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 71'
Height : 32'
Width : 66'
Area Basement : 2424 sq/ft
Garage : 727 sq/ft
Lower Floor : 1042 sq/ft
Main Floor : 2424 sq/ft
Porch : 471 sq/ft
Ceiling Ceiling Details : Ceiling height varies Between 9' - 11'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof Roof Framing : Conventional Frame
Primary Pitch : 12:12
Roof Type : Asphalt Shingle
Exterior Wall Framing Exterior Wall Finish : Brick, Siding, Shingle
Framing : 2"x4"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Media Room
Storage Area
Unfinished Future Space
Wet Bar
Garage Features Oversized Garage
Side Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

What's Included In This Plan Set


Designs by Todd W. Reed, Inc.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Right-Reading Reverse :
200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
