Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

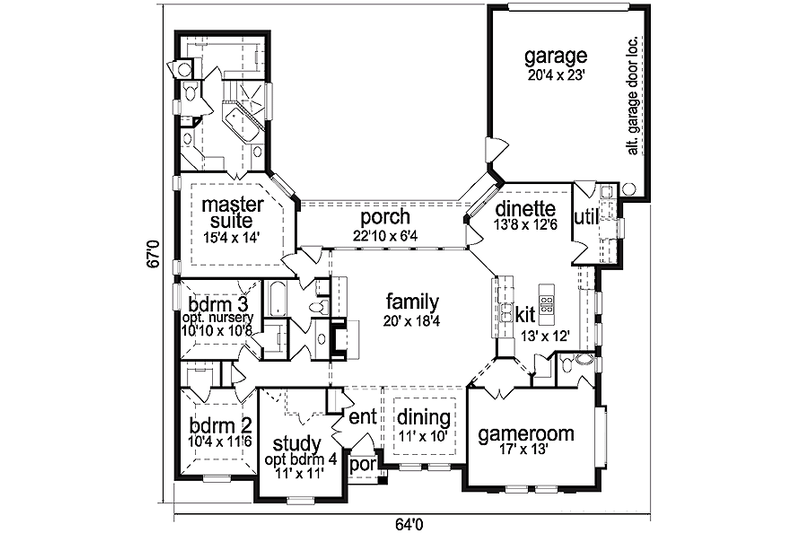

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-249

Full Specs & Features

Depth : 67'
Height : 24' 4"
Width : 64'
First Floor: 2425 sq/ft height 8'
Garage: 536 sq/ft
Porch: 174 sq/ft
Main Ceiling : 8'
Primary Pitch : 8:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Garage Features
Rear Entry Garage
Rear Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

118 sq/ft width 10' 4" x depth 11' 6"

Bedroom 3:

115 sq/ft width 10' 10" x depth 10' 8"

Breakfast Room:

170 sq/ft width 13' 8" x depth 12' 6"

Den/Office or Bedroom 4:

121 sq/ft width 11' x depth 11'

Dining Room:

110 sq/ft width 11' x depth 10'

Family Room:

366 sq/ft width 20' x depth 18' 4"

Game Room:

221 sq/ft width 17' x depth 13'


467 sq/ft width 20' 4" x depth 23'


156 sq/ft width 13' x depth 12'

Master Bedroom:

214 sq/ft width 15' 4" x depth 14'

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
