PLAN #20-2127

Select Plan Set Options
What's included?
Additional Construction Sets
$30.00/each
Mirror Reversed Sets
$30.00
Subtotal
$925.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #20-2127

Key Specs


2452
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Walk in and put your heavy load down. This plan’s convenient lockers and drop zone for keys, wallet, backpacks, books and more, ensure that your things stay organized in the rear foyer and don’t clutter the rest of the home. An extra nook in the back of the garage provides storage for tools, gardening supplies or even room for a craft area. For rest and relaxation, go out to the covered porch and enjoy the warm weather. On colder days, enjoy the fireplace in the great room or the large master bath upstairs. Two vanities in the maser bathroom create room for his-and-her toiletries. The five sinks and mirrors upstairs mean the whole family has room to get ready and out the door on time on a busy morning.

Floor Plans


Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

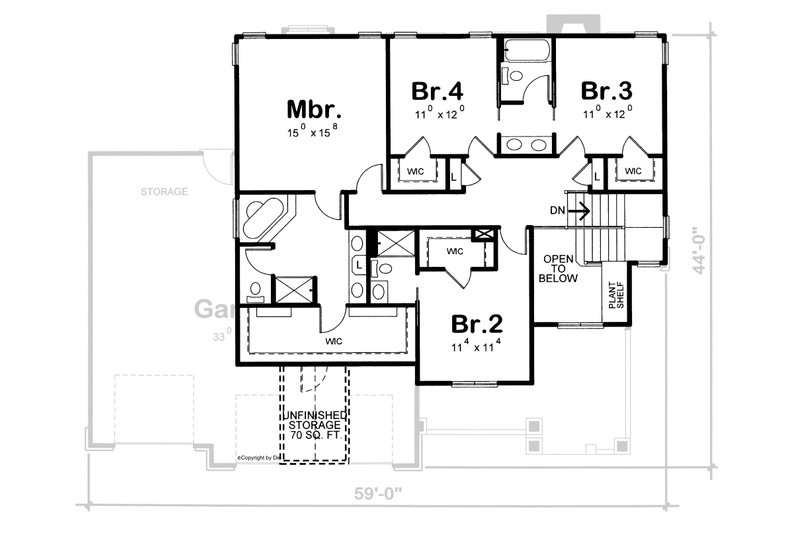

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 44'
Height : 29'
Width : 59'
Area Garage : 903 sq/ft
Main Floor : 1161 sq/ft
Upper Floor : 1291 sq/ft
Ceiling Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Roof Framing : stick
Roof Load : 30
Exterior Wall Framing Framing : 2"x4"
Bedroom Features Teen Suite Jack Jill Bath
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Outdoor Spaces Covered Front Porch

What's Included In This Plan Set


Design Basics

  • Cover Page: Rendered elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional slab and crawl space foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights. ** This page not included with floor plans adapted for ICF Products **
» See important information before purchasing.
Plan Set
PDF Set :
$925.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$925.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
5 Copy Set :
$1000.00
5 printed plan sets mailed to you.
8 Copy Set :
$1120.00
8 printed plan sets mailed to you.
CAD Set :
$1425.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$195.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$195.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Material List :
125.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
30.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
30.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
