PLAN 40-480

Home > Style > Traditional House Plans

Key Specs

2453
sq ft

3
Beds

2.5
Baths

0
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2453 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

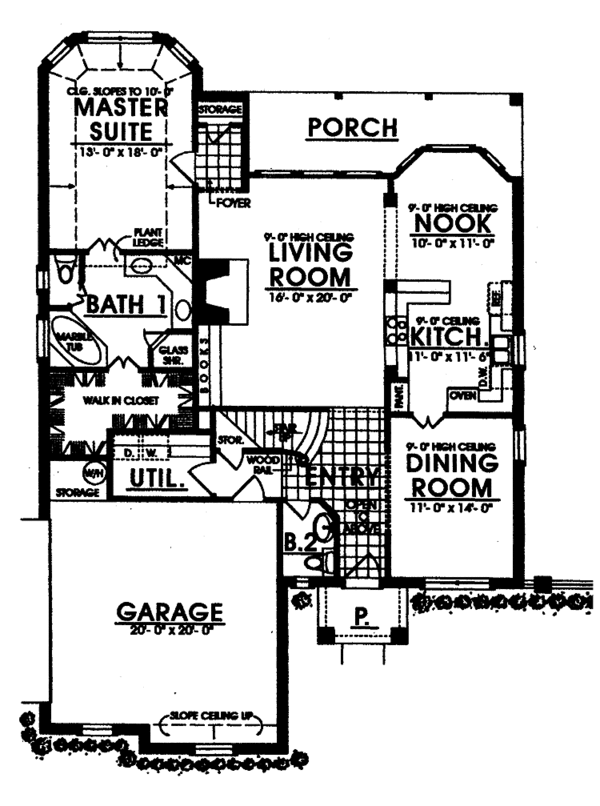

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

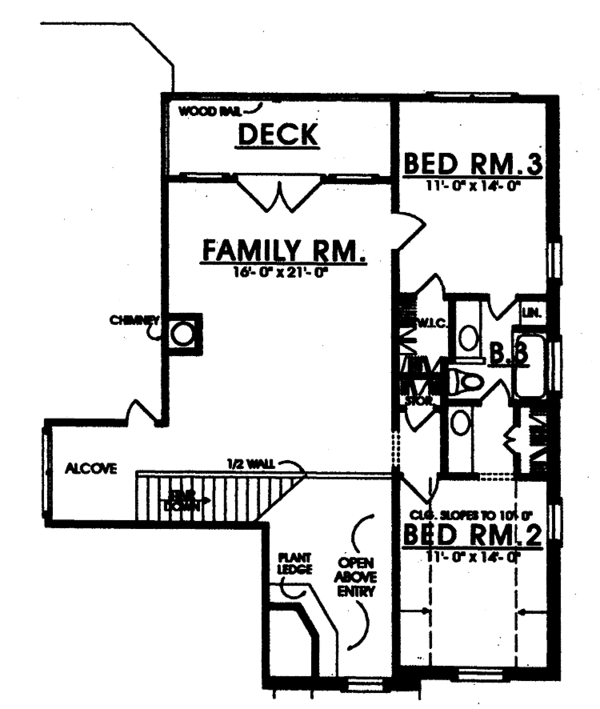

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 40' 11"

Height : 29' 10"

Width : 63' 9"

Area

First Floor: 1530 sq/ft

Second Floor: 923 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Family Room Keeping Room

Vaulted / Cathedral Ceilings

Rooms

Bedroom 2:

154 sq/ft width 11' x depth 14'

Bedroom 3:

154 sq/ft width 11' x depth 14'

Dining Room:

154 sq/ft width 11' x depth 14'

Family Room:

336 sq/ft width 16' x depth 21'

Garage:

400 sq/ft width 20' x depth 20'

Kitchen:

126 sq/ft width 11' x depth 11' 6"

Living Room:

320 sq/ft width 16' x depth 20'

Master Suite:

234 sq/ft width 13' x depth 18'

Nook:

110 sq/ft width 10' x depth 11'
