PLAN 17-2494

Home > Style > Tudor House Plans

Key Specs

2454
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This tudor design floor plan is 2454 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

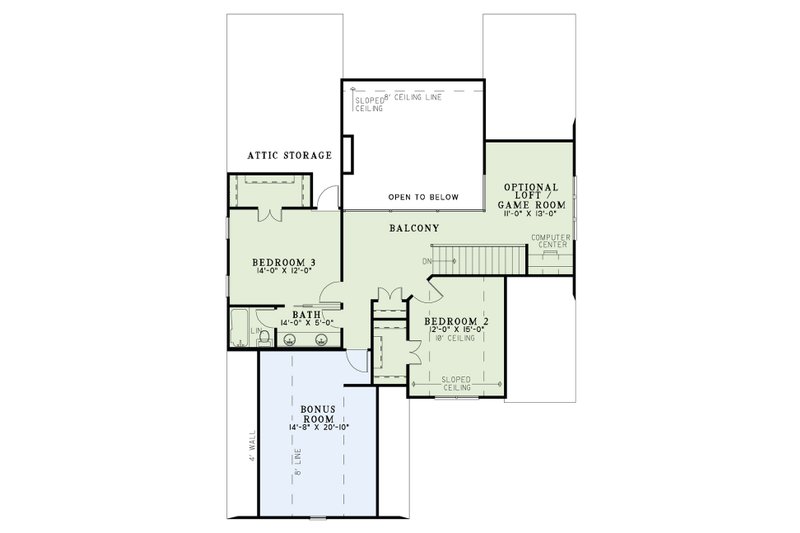

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 67' 6"

Height : 30' 7"

Width : 44'

Area

Bonus: 318 sq/ft

First Floor: 1718 sq/ft height 9'

Garage: 548 sq/ft height 9'

Second Floor: 730 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details :

Main Ceiling : 9'

Roof

Primary Pitch : 12:12

Roof Framing :

Roof Load : 45

Roof Type :

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer

Framing : 2x4

Insulation : R-13

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bath 2:

width 8' 10" x depth 5' 4"

Bath 3:

width 14' x depth 5'

Bedroom 2:

width 12' x depth 15'

Bedroom 3:

width 14' x depth 12'

Bonus:

319 sq/ft width 14' 8" x depth 20' 10"

Dining:

width 11' x depth 12' 8"

Foyer:

width 8' x depth 8'

Garage:

547 sq/ft width 22' 4" x depth 22' 2"

Garage:

547 sq/ft width 22' 4" x depth 22' 2"

Great Room:

width 17' 8" x depth 20' 6"

Grilling Porch:

224 sq/ft width 18' 4" x depth 12'

Guest Bedroom:

width 12' x depth 11' 8"

Kitchen:

width 11' 4" x depth 12'

Laundry:

width 7' 2" x depth 5' 10"

Master Bedroom:

width 14' x depth 17'

Master Closet:

width 10' 2" x depth 19' 4"

Porch Front:

56 sq/ft width 8' x depth 7'

Storage:

width 8' 2" x depth 3' 6"

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
CAD Unlimited Build comes with a free PDF.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1650.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1750.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$2000.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build:
$2350.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$3300.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Unlimited Build:
$3300.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$299.00

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement:
$299.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$299.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
