Key Specs


2462
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

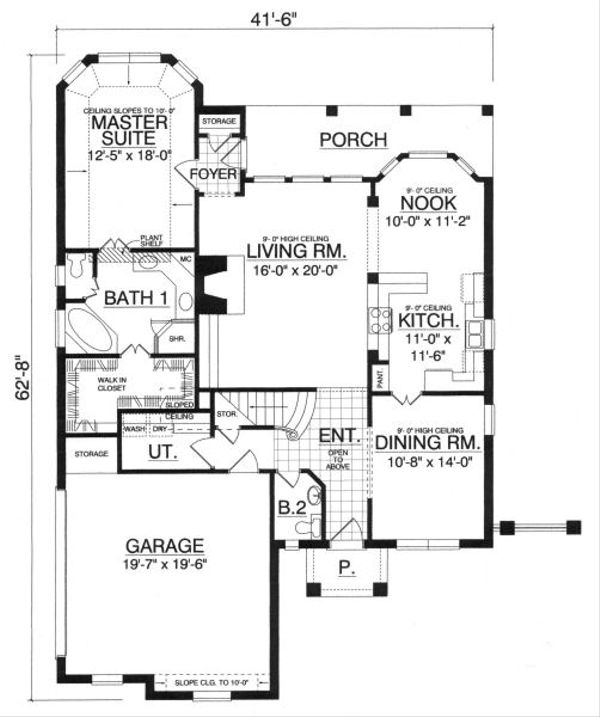

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #40-392

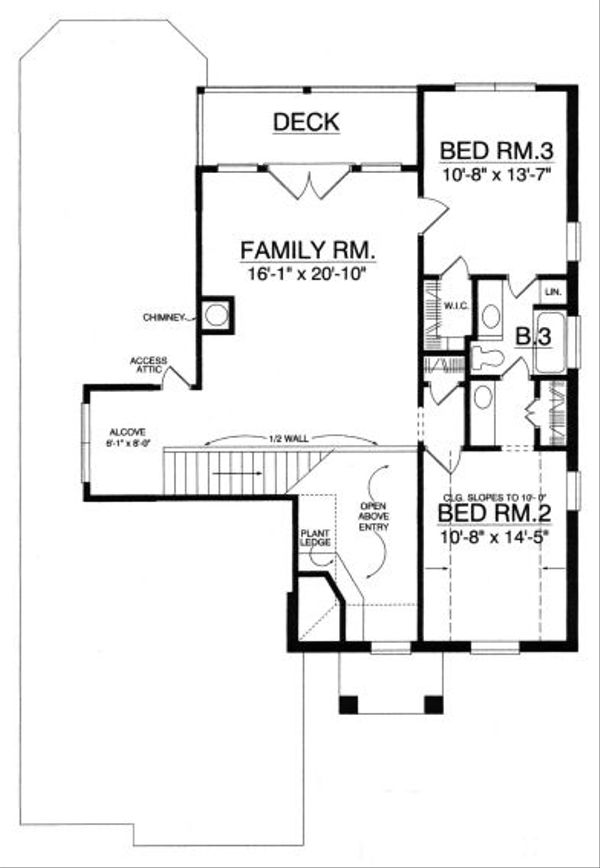

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #40-392

Full Specs & Features


Dimension
Depth : 62' 8"
Height : 30' 5"
Width : 41' 6"
Area
First Floor: 1530 sq/ft
Garage: 466 sq/ft
Porch: 186 sq/ft
Second Floor: 932 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x4"
Rooms

Bedroom 2:

153 sq/ft width 10' 8" x depth 14' 5"

Bedroom 3:

144 sq/ft width 10' 8" x depth 13' 7"

Dining Room:

149 sq/ft width 10' 8" x depth 14'

Family Room:

335 sq/ft width 16' 1" x depth 20' 10"

Garage:

381 sq/ft width 19' 7" x depth 19' 6"

Kitchen:

126 sq/ft width 11' x depth 11' 6"

Living Room:

320 sq/ft width 16' x depth 20'

Master Suite:

223 sq/ft width 12' 5" x depth 18'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

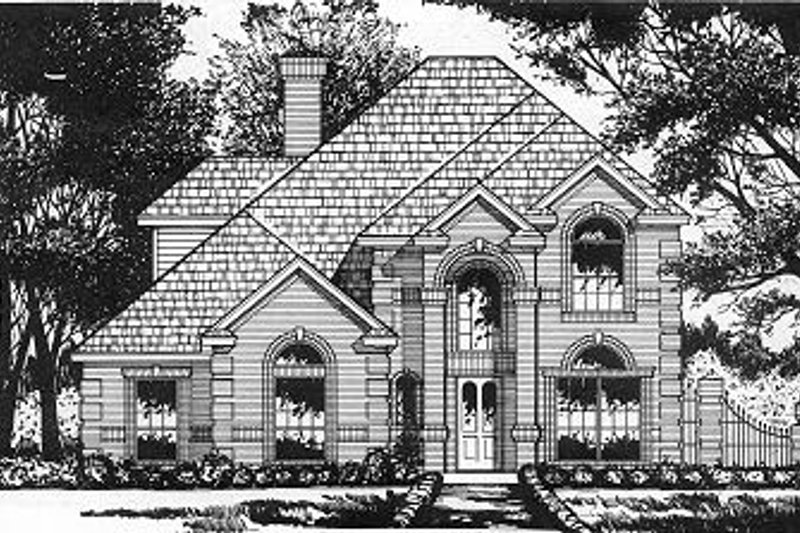

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$785.00
5 printed plan sets mailed to you.
8 Copy Set :
$875.00
8 printed plan sets mailed to you.
Reproducible Set :
$960.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1535.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$685.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
