PLAN #1015-11

Key Specs


2478
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Bedroom two is private and can be converted into a mother-in-law suite or home office complete with a separate entrance and dedicated bath. An opulent Master Suite featuring a private sitting room and access to the patio will appeal to clients on any budget and leave them longing to come home to such a luxurious retreat. Options such as art niches, ceiling treatments and a fireplace allow clients to customize the home and make it truly "theirs." Alternate elevations are available.

Floor Plans

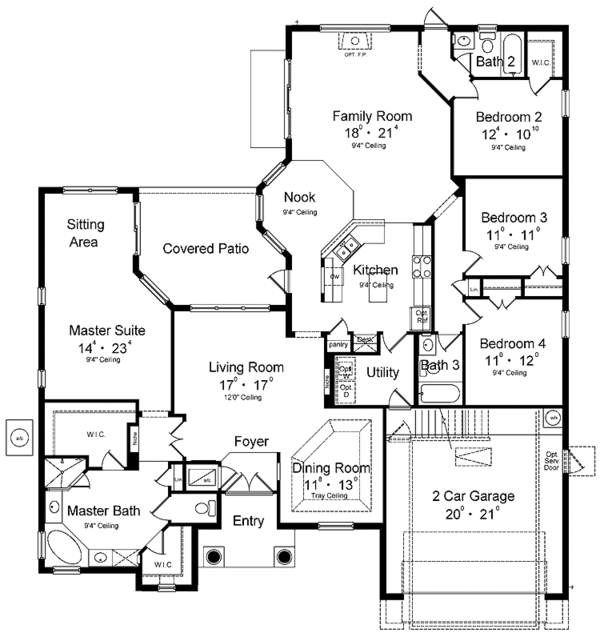

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1015-11

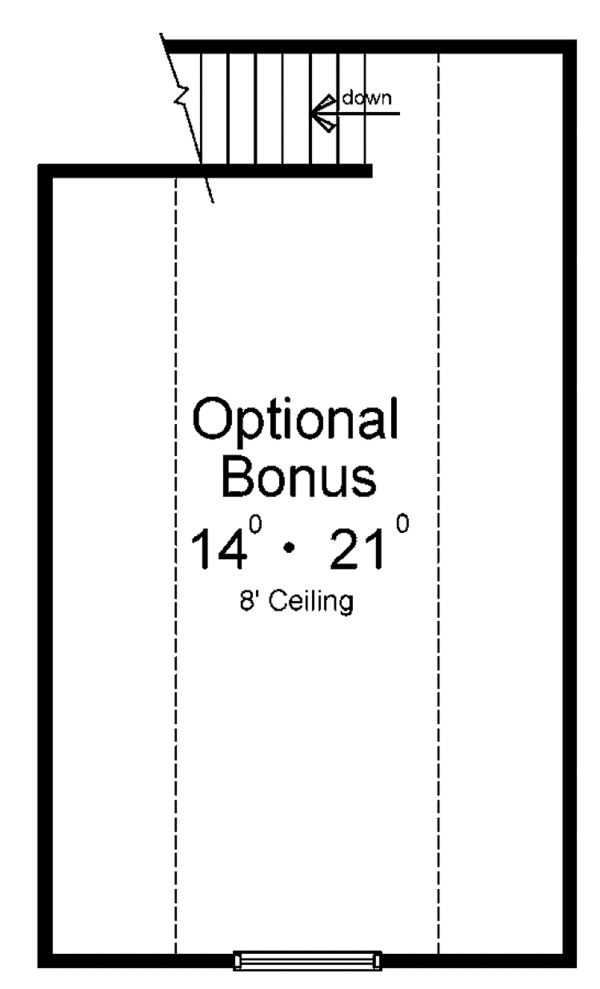

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1015-11

Full Specs & Features


Dimension
Depth : 65'
Height : 21' 4"
Width : 60'
Area
First Floor: 2478 sq/ft
Garage: 454 sq/ft
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

133 sq/ft width 12' 4" x depth 10' 10"

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 4:

132 sq/ft width 11' x depth 12'

Bonus Room - Finished:

294 sq/ft width 14' x depth 21'

Breakfast Room:

113 sq/ft width 10' 7" x depth 10' 9"

Dining Room:

151 sq/ft width 11' 8" x depth 13'

Family Room:

383 sq/ft width 18' x depth 21' 4"

Garage:

434 sq/ft width 20' 8" x depth 21'

Kitchen:

146 sq/ft width 12' 2" x depth 12'

Laundry Room:

51 sq/ft width 9' x depth 5' 8"

Living Room:

289 sq/ft width 17' x depth 17'

Master Bathroom:

156 sq/ft width 14' 4" x depth 10' 11"

Master Bedroom:

334 sq/ft width 14' 4" x depth 23' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
