PLAN 1064-138
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 30'
Height : 29' 6"
Width : 56'
Area
Decks : 96 sq/ft
Garage : 1440 sq/ft
Porch : 101 sq/ft
Storage : 1050 sq/ft
Ceiling
Ceiling Details : Sloped Ceiling in Storage
Garage Ceiling : 12' 4"
Upper Ceiling Ft : 9' 1"
Roof
Primary Pitch : 12/12
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Shingles
Secondary Pitch : 5/12
Exterior Wall Framing
Exterior Wall Finish : Siding/Shake
Framing : 2x6
Insulation : R19
Additional Room Features
Storage Area
Workshop
Garage Features
Detached Garage
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

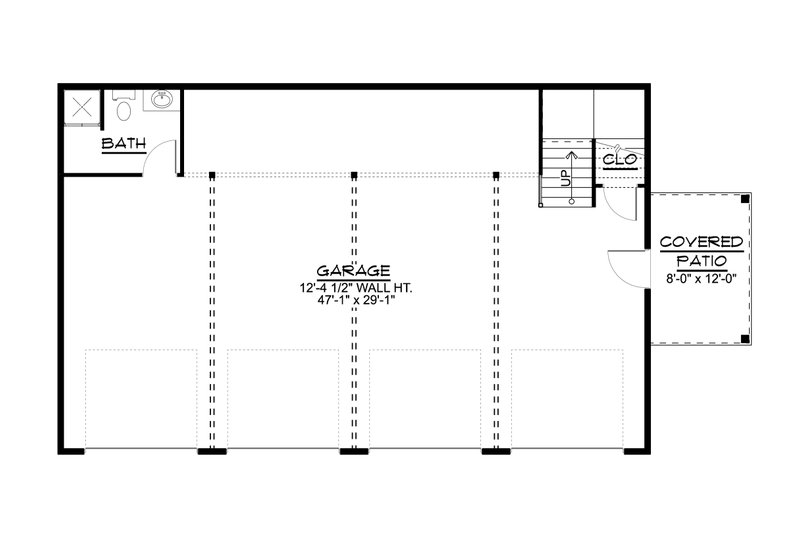

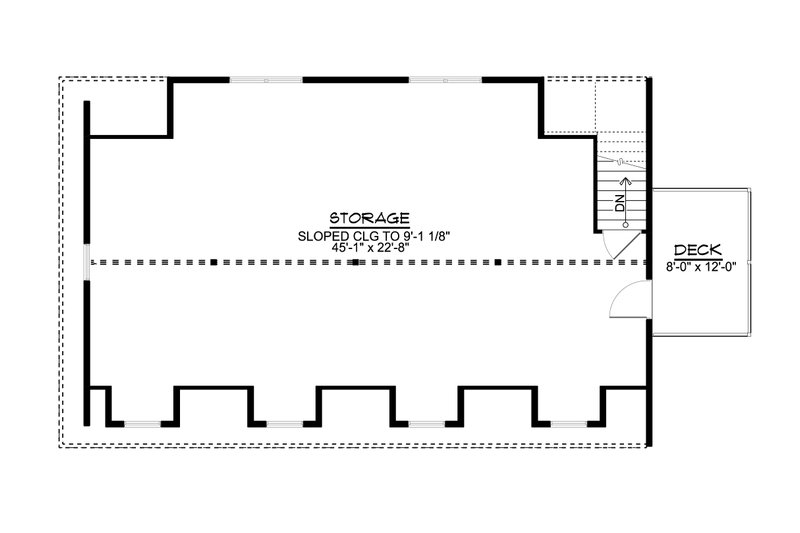

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$800.00
$975.00
$1050.00
$1095.00
Foundation
$0.00
$295.00
$395.00
$395.00
$395.00
Framing
$0.00
$200.00
Additional Options
$245.00
$35.00
$165.00
$295.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
