PLAN 17-2780
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (2)
Get Personalized Help
Key Specs
2493
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-2780
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Floor Plan - Other Floor

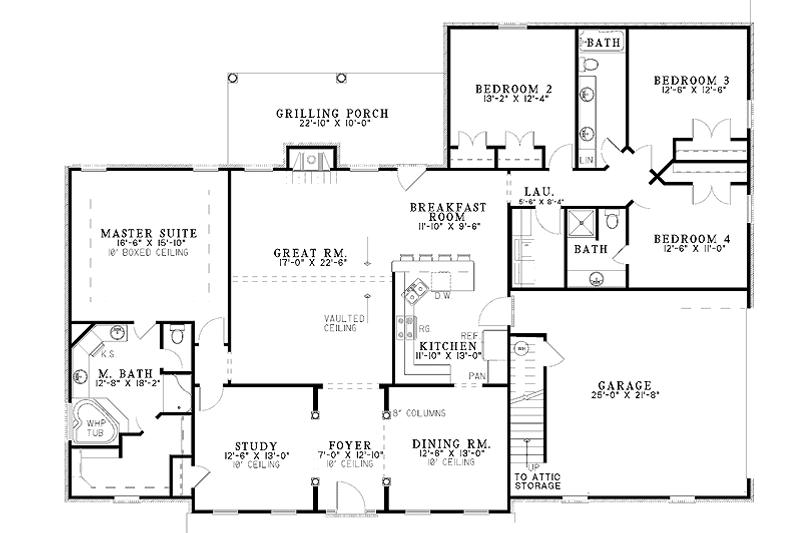

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 58' 6"
Height : 28'
Width : 72'
Area
First Floor: 2493 sq/ft height 9'
Garage: 557 sq/ft
Porch: 464 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
162 sq/ft width 13' 2" x depth 12' 4"
Bedroom 3:
156 sq/ft width 12' 6" x depth 12' 6"
Bedroom 4:
137 sq/ft width 12' 6" x depth 11'
Breakfast Room:
114 sq/ft width 11' 10" x depth 9' 8"
Covered Porch:
235 sq/ft width 33' 8" x depth 7'
Dining Room:
162 sq/ft width 12' 6" x depth 13'
Foyer:
89 sq/ft width 7' x depth 12' 10"
Garage:
541 sq/ft width 25' x depth 21' 8"
Great Room:
382 sq/ft width 17' x depth 22' 6"
Grilling Porch:
228 sq/ft width 22' 10" x depth 10'
Kitchen:
153 sq/ft width 11' 10" x depth 13'
Laundry Room:
34 sq/ft width 5' 6" x depth 6' 4"
Master Bathroom:
230 sq/ft width 12' 8" x depth 18' 2"
Master Suite:
261 sq/ft width 16' 6" x depth 15' 10"
Study:
162 sq/ft width 12' 6" x depth 13'
