PLAN #56-584

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This charming 2,493 square foot home features a split 3-car garage with a workshop, a spacious front porch and a brick, stone and siding exterior with shake accents and Craftsman-inspired details. The entry unfolds to a columned dining room, home office and powder room. The large gourmet kitchen has an angled breakfast nook and a snack bar to provide additional seating and food prep space. Cabinets and shelves in the breakfast area offer a compact pantry. The center island holds a cook-top. A welcoming fireplace warms the cozy two-story family room. The elegant master suite, with a dramatic tray ceiling, is located on the main level. Closet space abounds with his and hers walk-in closets. The master bath features separate vanities, a linen closet, a luxurious spa tub and a private toilet room with an oversized shower. Upstairs are three generous bedrooms, all with walk-in closets. Suite #2 has a private bath with a corner shower. Bedrooms #3 and #4 share a bath. The biggest surprise of the upper level is the expansive dual bonus areas with an optional bathroom which could serve as a bath for bedroom #4. The possibilities are limitless as to the use of this delightfully unexpected space! Outdoor living is enjoyed to the fullest with front and back porches and a roomy deck. We have featured a small pool in our rendering to help you conceptualize your recreational space.

Floor Plans

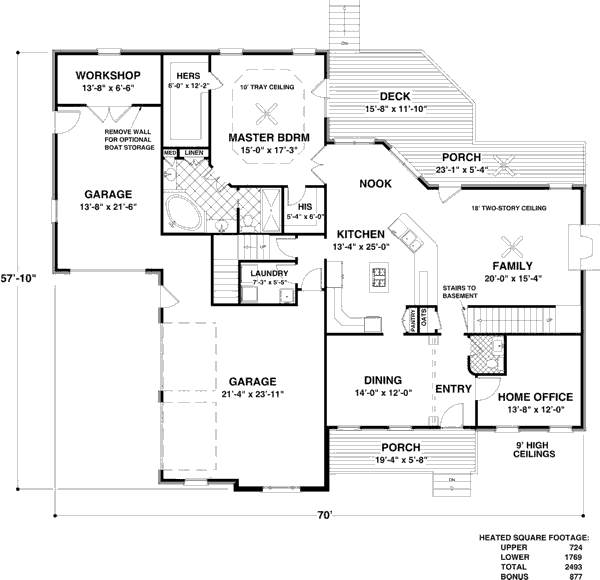

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #56-584

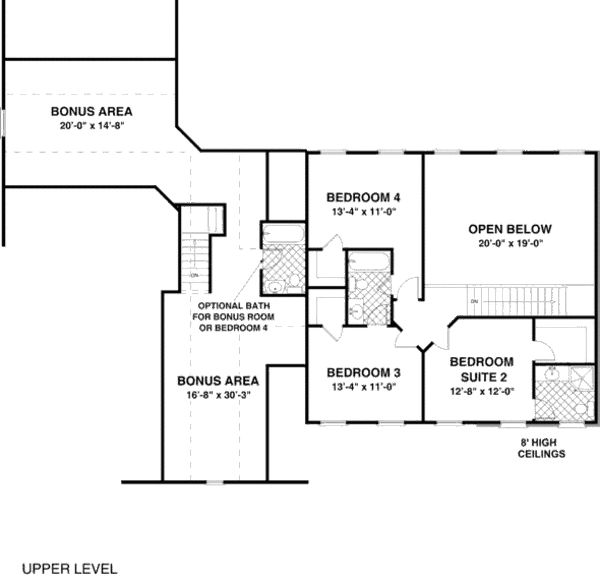

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #56-584

Full Specs & Features

Depth : 56' 10"
Height : 29'
Width : 70'
Basement Unfinished: 1769 sq/ft
Bonus: 870 sq/ft
First Floor: 1769 sq/ft height 9'
Second Floor: 724 sq/ft height 8'
Ceiling Details : Family Room 18' ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Framing : stick
Primary Pitch : 7:12
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : brick, siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Jack Jill Bath
Bonus Play Flex Room
Den Office Study Computer
Family Room Keeping Room
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck

Bedroom 2:

152 sq/ft width 12' 8" x depth 12'

Bedroom 3:

146 sq/ft width 13' 4" x depth 11'

Bedroom 4:

146 sq/ft width 13' 4" x depth 11'

Bonus Room - Finished:

504 sq/ft width 16' 8" x depth 30' 3"

Bonus Room - Finished:

293 sq/ft width 20' x depth 14' 8"


185 sq/ft width 15' 8" x depth 11' 10"

Dining Room:

168 sq/ft width 14' x depth 12'

Family Room:

306 sq/ft width 20' x depth 15' 4"


510 sq/ft width 21' 4" x depth 23' 11"

Garage Two:

293 sq/ft width 13' 8" x depth 21' 6"

Home Office:

164 sq/ft width 13' 8" x depth 12'


333 sq/ft width 13' 4" x depth 25'

Master Bedroom:

258 sq/ft width 15' x depth 17' 3"

Porch - Front:

109 sq/ft width 19' 4" x depth 5' 8"

Porch - Rear:

123 sq/ft width 23' 1" x depth 5' 4"

What's Included In This Plan Set

  • Artist Rendering
  • Exterior Elevations: All four sides
  • Floor Plans(s)
  • Foundation Plan
  • Cross Sections
  • Cabinet Elevations
  • Roof Plan
  • 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
  • Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
