PLAN 5-147

Home > Style > Craftsman House Plans

Key Specs

2495
sq ft

3
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Featured in a prominent Rocky Mountain style and design publication, this rustic home was designed to blend in with a beautiful mountain setting. The rock and wood exterior is reflected on the inside as well, where vaulted ceilings are accented by impressive timber beam work. An inviting fireplace is the focal point of a sweeping combined great room/kitchen/nook, and makes the home perfect for both formal entertaining and cozy family gathering. A walk-in pantry simplifies kitchen prep, and an expansive mud room and combined craft/laundry room are situated just inside the doors of the triple-car garage. On the opposite side of the home, a cozy master bedroom accommodates a romantic fireplace, dual walk-in closets and a spacious bath with Jacuzzi tub. The lower level harbors two additional bedrooms, an office, an exercise room with a spa, and a recreation room with kitchenette.

Floor Plans

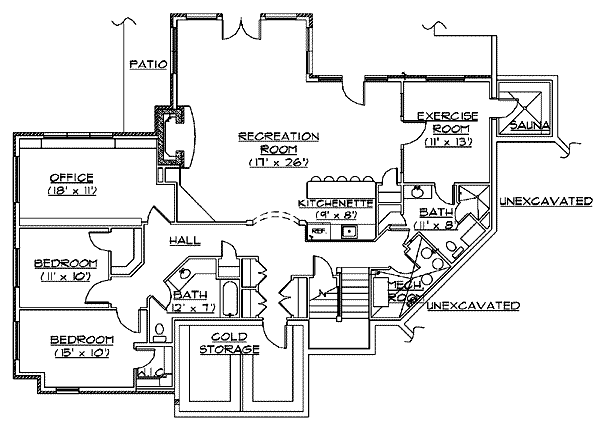

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

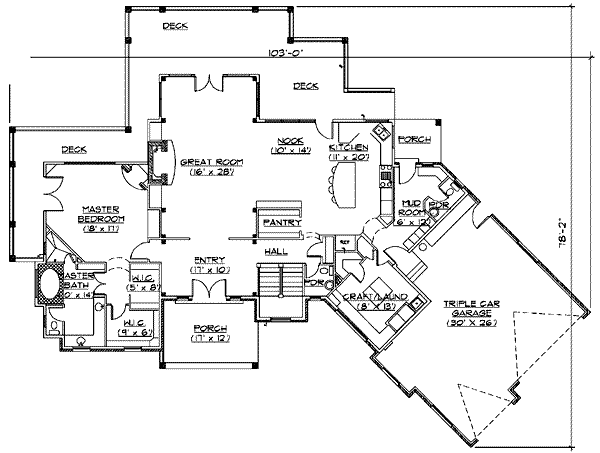

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 79'

Height : 31'

Width : 108'

Area

Lower Floor : 2061 sq/ft

Main Floor : 2495 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Great Room and Entry: Vaults from 14' to 20' - - Kitchen and Nook vaults from 10' to 15'.

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Mud Room

Storage Area

Wet Bar

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Suited For Vacation Home
