PLAN 34-179
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

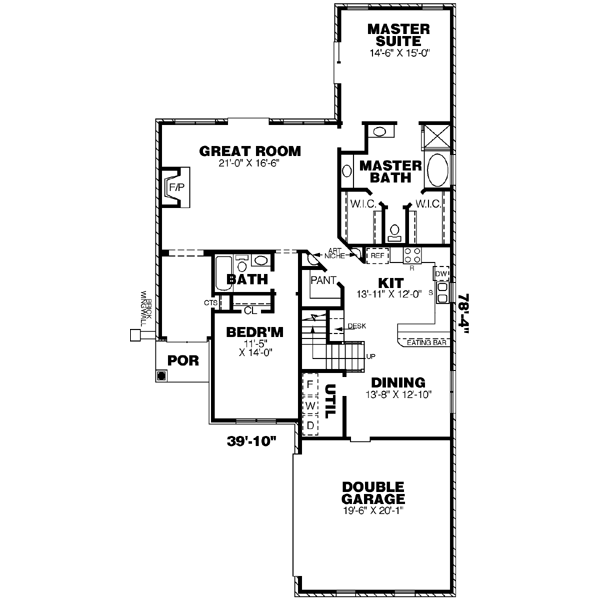

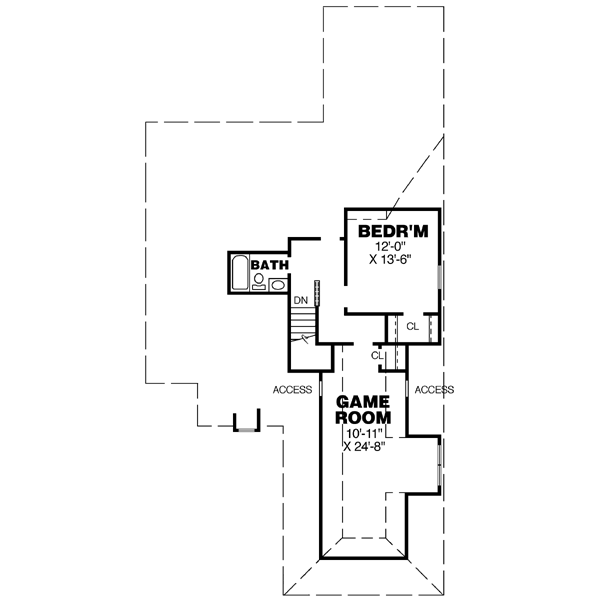

Floor Plans
Full Specs & Features
Dimension
Depth : 78' 4"
Height : 26'
Width : 39' 10"
Area
First Floor: 1807 sq/ft
Second Floor: 715 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Rooms
3rd BR Closet:
24 sq/ft width 3' 6" x depth 7'
Bathroom 2:
37 sq/ft width 7' 7" x depth 5'
Bathroom 3:
40 sq/ft width 8' x depth 5'
Bedroom 2:
159 sq/ft width 11' 5" x depth 14'
Bedroom 2 Closet:
10 sq/ft width 5' 2" x depth 2'
Bedroom 3:
162 sq/ft width 12' x depth 13' 6"
Bedroom 3 Closet:
10 sq/ft width 5' 2" x depth 2'
Bedroom 4 Closet:
10 sq/ft width 3' 3" x depth 3' 3"
Dining Room:
175 sq/ft width 13' 8" x depth 12' 10"
Foyer:
69 sq/ft width 6' 7" x depth 10' 6"
Game Room:
269 sq/ft width 10' 11" x depth 24' 8"
Garage:
391 sq/ft width 19' 6" x depth 20' 1"
Gathering Room:
346 sq/ft width 21' x depth 16' 6"
Hall Closet:
4 sq/ft width 2' x depth 2'
Kitchen:
167 sq/ft width 13' 11" x depth 12'
Master Bathroom:
225 sq/ft width 14' 6" x depth 15' 7"
Master Bedroom:
217 sq/ft width 14' 6" x depth 15'
Master Closet:
38 sq/ft width 5' 6" x depth 7'
Pantry:
31 sq/ft width 6' 4" x depth 5'
Porch - Front:
40 sq/ft width 7' 5" x depth 5' 5"
Slab Foundation:
3120 sq/ft width 39' 10" x depth 78' 4"
Utility Room:
46 sq/ft width 5' 6" x depth 8' 6"
What's Included In This Plan Set
- Foundation plan (slab type) ( 1/4"= 1'-0" in most cases)
- Floor plans including electrical layout (1/4" = 1'-0" in most cases)
- Set of elevations (all four sides)
- Building section(s) stairs & vaulted ceiling details
- Roof plan
- Kitchen & bath elevations
- Miscellaneous details
- Typical detail sheets
Plan Set
$1100.00
$1500.00
$1500.00
$1500.00
$2250.00
$850.00
Foundation
$0.00
Additional Options
$125.00
$100.00
$39.00
$100.00
$0.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
