PLAN #929-232

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

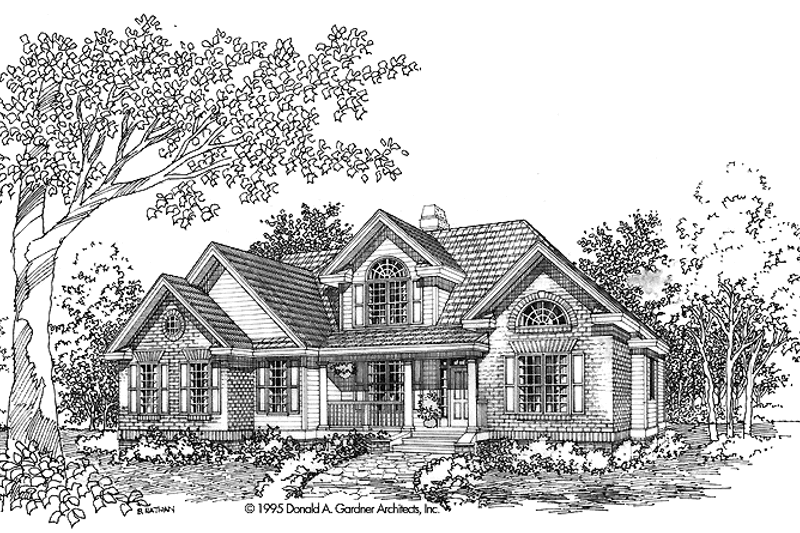

A multipane dormer, shutters, and a covered front porch invite you to call this house a home. Inside, to the left of the foyer, is a room that could function as either a formal living room or an elegant study. To the right, through a pair of columns, a formal dining room has direct access to the U-shaped kitchen. For informal meals, a breakfast room is just off the kitchen via a snack bar. With a cathedral ceiling and a warming fireplace, the family room is sure to please. The first-floor master suite is full of pleasing details, including a large walk-in closet, a garden tub, and a separate shower. Upstairs, three family bedrooms share a full hall bath with dual vanities.

Floor Plans

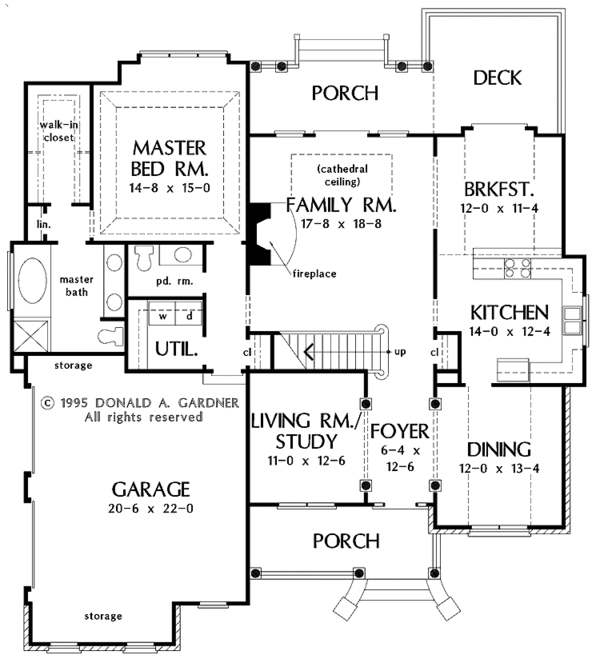

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #929-232

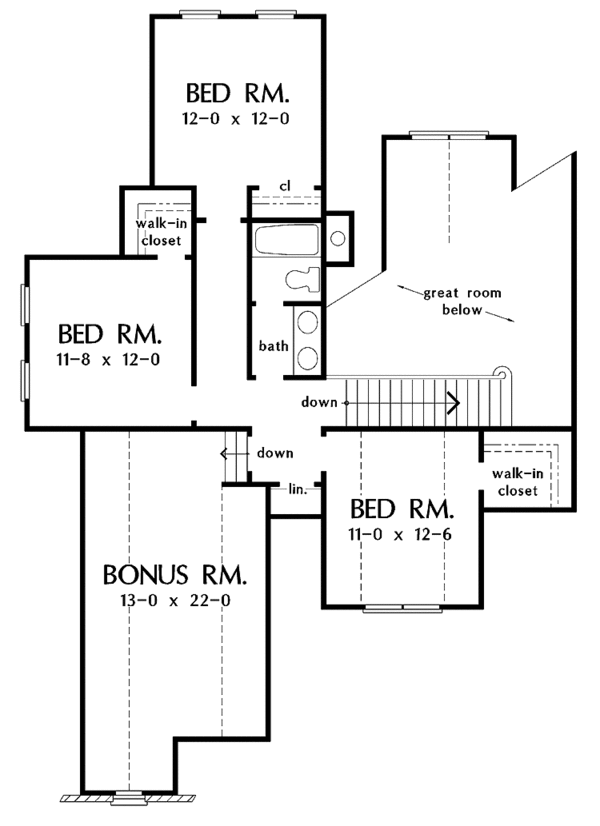

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #929-232

Full Specs & Features

Depth : 61' 4"
Height : 27'
Width : 55' 4"
Bonus: 328 sq/ft
First Floor: 1799 sq/ft height 9'
Second Floor: 730 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

3rd BR Closet:

22 sq/ft width 4' 10" x depth 4' 8"

Bathroom 2:

55 sq/ft width 5' x depth 11'

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 3:

140 sq/ft width 11' 8" x depth 12'

Bedroom 3 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 4:

137 sq/ft width 11' x depth 12' 6"

Bedroom 4 Closet:

34 sq/ft width 6' 4" x depth 5' 6"

Bonus Room - Finished:

286 sq/ft width 13' x depth 22'

Breakfast Room:

135 sq/ft width 12' x depth 11' 4"


79 sq/ft width 6' 4" x depth 12' 6"


451 sq/ft width 20' 6" x depth 22'

Gathering Room:

329 sq/ft width 17' 8" x depth 18' 8"

Hall Closet:

6 sq/ft width 2' x depth 3' 4"


172 sq/ft width 14' x depth 12' 4"

Master Bathroom:

110 sq/ft width 10' 4" x depth 10' 8"

Master Bedroom:

220 sq/ft width 14' 8" x depth 15'

Master Closet:

67 sq/ft width 6' x depth 11' 4"

Porch - Front:

128 sq/ft width 18' 4" x depth 7'

Porch - Rear:

123 sq/ft width 17' 8" x depth 7'

Powder Room:

35 sq/ft width 7' 2" x depth 5'

Utility Room:

47 sq/ft width 7' 2" x depth 6' 8"

What's Included In This Plan Set

Donald A. Gardner charges $100.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.

  • Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Front rendering
  • Foundation plan
  • Detailed floor plans
  • Exterior and interior elevations
  • Roof plan
  • Door and window schedules
  • Necessary wall sections/details
  • Structural plan
  • One specifications outline
  • Heating/air conditioning layouts, plumbing, and electrical details are not included. Consult a local mechanical contractor for systems suitable for local climate conditions. The plans conformed to the CABO One and Two Family Dwelling Code or the International Residential Code in the year the plan was created.

» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.


Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
