Plan Description

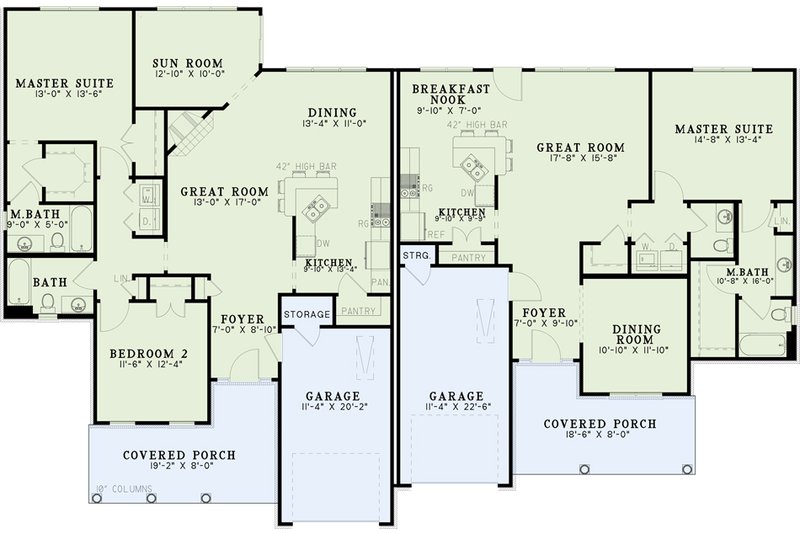

This traditional style duplex has a cozy front porch and offers numerous options. One of the living quarters has a master suite, a second bedroom and sun room while the other home has a large great room and formal dining room in place of the second bedroom. These open floor plans have blended kitchen and breakfast areas with handy breakfast bars and plenty of kitchen storage. The laundry area is conveniently located in the hall and near an additional bathroom. Both master suites are privately placed at the rear of the home and have large walk-in closets and private bathrooms.Duplex Plan Unit 1- 1398 sq. ft. Unit 2- 1180 sq. ft. Unit 1 notes: Front covered porch with 10 inch columns Entry to Foyer Great room with corner fireplace open to Dining room Dining room with rear view and open to Kitchen Kitchen with snack bar and walk-in pantry Sun room with sliding door to rear Master suite with ample closet space available and private bath Bedroom 2 with ample closet space Unit 2: 10 inch columns Dining room Great room open to Breakfast nook

Full Specs & Features


Dimension

Depth : 54'

Height : 27'

Width : 83'

Area

Garage : 280 sq/ft

Main Floor : 1180 sq/ft

Porch : 172 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 9:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Storage Area

Sunroom

Outdoor Spaces

Covered Front Porch

Screened Porch

What's Included In This Plan Set




  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
  • CAD Unlimited Build comes with a free PDF.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

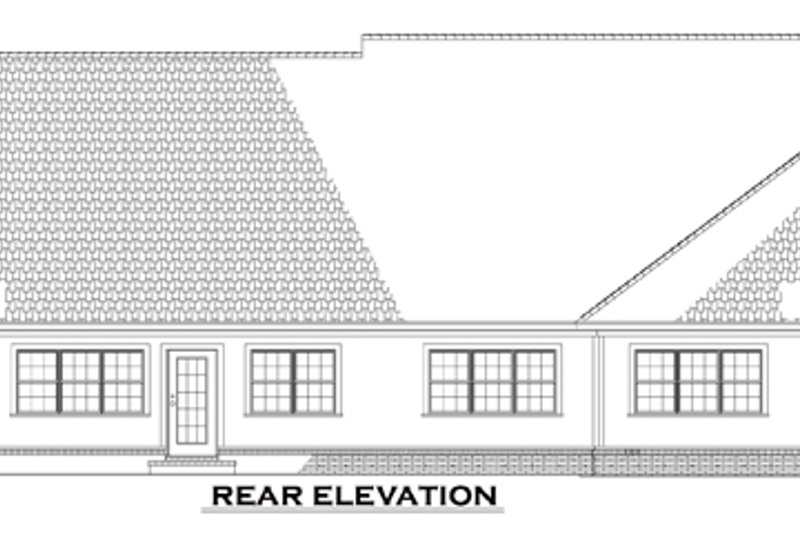

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
