Full Specs & Features
Depth : 75' 6"
Height : 23' 6"
Width : 84'
First Floor: 2592 sq/ft
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Play Flex Room
Unfinished Future Space
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Wrap Around Porch
182 sq/ft width 22' 10" x depth 8'
80 sq/ft width 6' 6" x depth 12' 5"
237 sq/ft width 14' 10" x depth 16'
76 sq/ft width 10' 6" x depth 7' 4"
66 sq/ft width 10' x depth 6' 8"
97 sq/ft width 12' 2" x depth 8'
12 sq/ft width 3' 6" x depth 3' 6"
Porch - Front:
width 0" x depth 8'
Porch - Left:
width 8' x depth 0"
Porch - Rear:
width 8' x depth 0"
Porch - Screened:
168 sq/ft width 21' x depth 8'
What's Included In This Plan Set

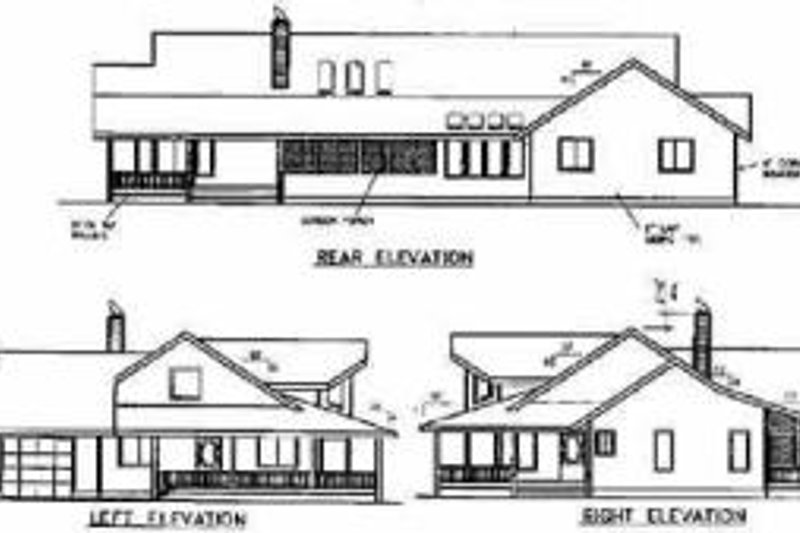

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.

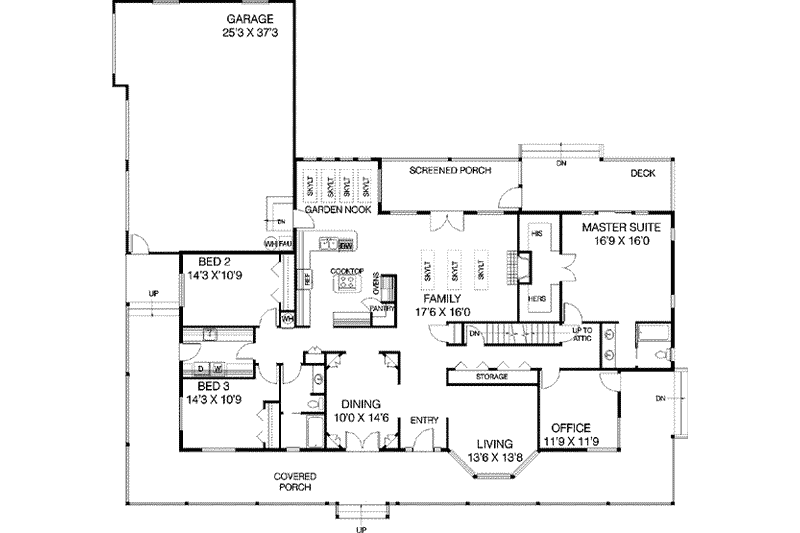

- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
