PLAN #929-652

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

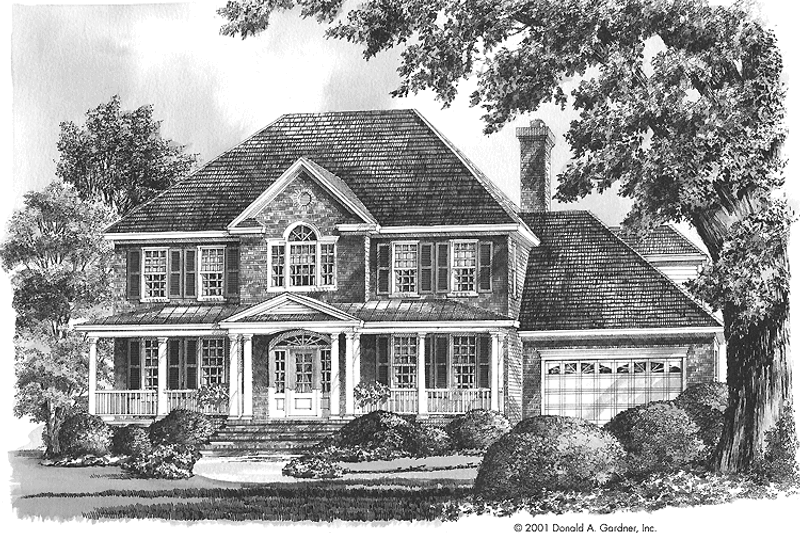

Elegant and stately, the exterior features a Palladian-style window, which accents the front facade and floods the two-story foyer with light. The floor plan features open spaces with more room definition for those seeking a truly traditional design. Columns separate the formal living and dining rooms, and a bay window extends the breakfast area. French doors access the rear porch as well as connect the family room to the outdoors. Built-ins embrace the fireplace, and an angled counter allows the kitchen to take part in casual entertaining. The master bedroom features a tray ceiling, and additional bedrooms share a full bath with the bonus room. Note the second-floor balcony.

Floor Plans

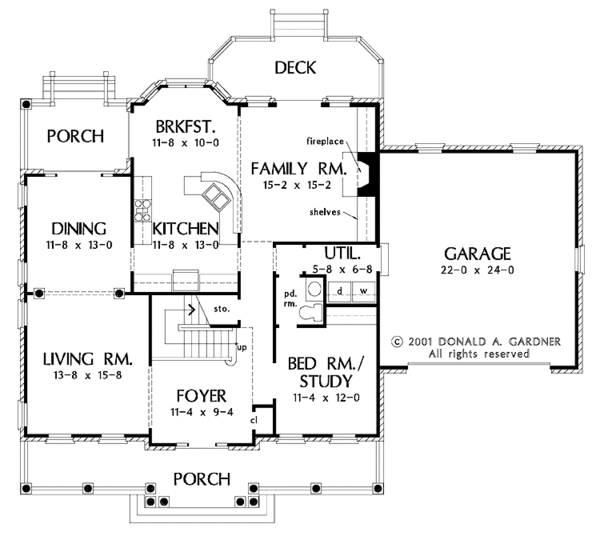

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #929-652

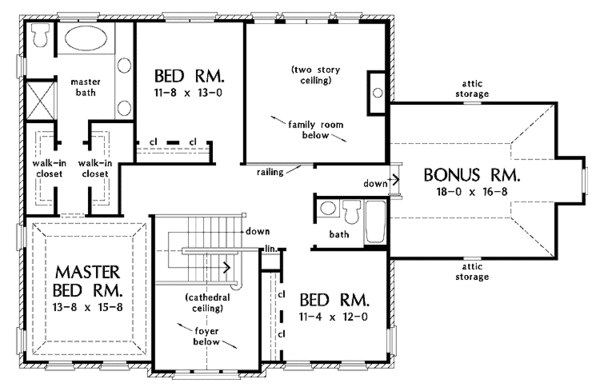

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #929-652

Full Specs & Features

Depth : 48' 1"
Height : 33'
Width : 63' 3"
Bonus: 366 sq/ft
First Floor: 1500 sq/ft
Second Floor: 1106 sq/ft
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

3rd BR Closet:

16 sq/ft width 8' x depth 2'

Bathroom 2:

40 sq/ft width 7' 8" x depth 5' 4"

Bedroom 3:

151 sq/ft width 11' 8" x depth 13'

Bedroom 4:

135 sq/ft width 11' 4" x depth 12'

Bedroom 4 Closet:

19 sq/ft width 2' x depth 9' 8"

Bonus Room - Finished:

300 sq/ft width 18' x depth 16' 8"

Breakfast Room:

116 sq/ft width 11' 8" x depth 10'


138 sq/ft width 19' 10" x depth 7'

Dining Room:

151 sq/ft width 11' 8" x depth 13'


105 sq/ft width 11' 4" x depth 9' 4"


528 sq/ft width 22' x depth 24'

Gathering Room:

230 sq/ft width 15' 2" x depth 15' 2"

Hall Closet:

6 sq/ft width 2' x depth 3'


151 sq/ft width 11' 8" x depth 13'

Living Room:

214 sq/ft width 13' 8" x depth 15' 8"

Master Bathroom:

124 sq/ft width 11' 8" x depth 10' 8"

Master Bedroom:

214 sq/ft width 13' 8" x depth 15' 8"

Master Closet:

29 sq/ft width 2' 11" x depth 10'

Porch - Front:

245 sq/ft width 40' 11" x depth 6'

Porch - Rear:

96 sq/ft width 12' x depth 8'

Powder Room:

28 sq/ft width 5' 4" x depth 5' 4"


135 sq/ft width 11' 4" x depth 12'

Utility Room:

37 sq/ft width 5' 8" x depth 6' 8"

What's Included In This Plan Set

Donald A. Gardner charges $100.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.

  • Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Front rendering
  • Foundation plan
  • Detailed floor plans
  • Exterior and interior elevations
  • Roof plan
  • Door and window schedules
  • Necessary wall sections/details
  • Structural plan
  • One specifications outline
  • Heating/air conditioning layouts, plumbing, and electrical details are not included. Consult a local mechanical contractor for systems suitable for local climate conditions. The plans conformed to the CABO One and Two Family Dwelling Code or the International Residential Code in the year the plan was created.

» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
