Plan Description

Need space to work at home? Flex the entry room into an office with hallway. You’ll be able to focus on your work and still keep an eye on the kids. Shoes, coats, hats, gloves, jewelry, dresses, slacks and sweaters have all found a home in this plan’s large walk-in closets. Two large walk-in closets in the master bedroom and larger walk-in in the secondary bedrooms provide ample storage options. A compartment upstairs bath eases rush-hour jams.

Floor Plans

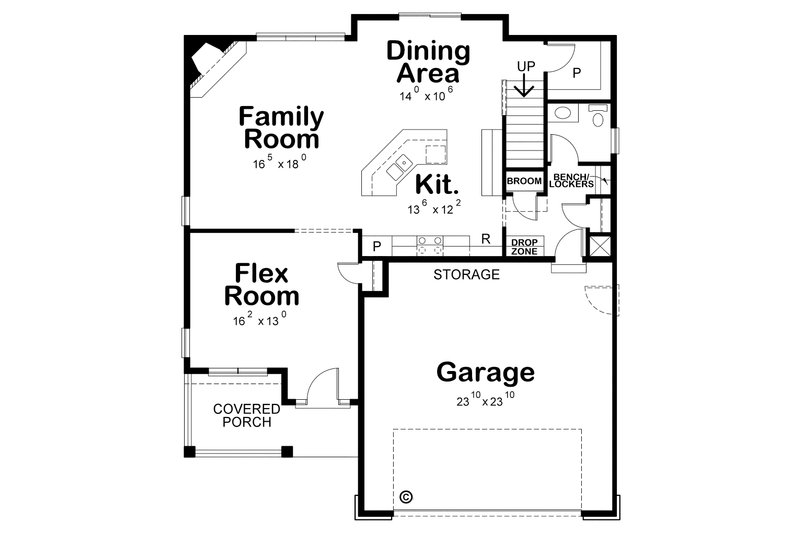

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #20-2196

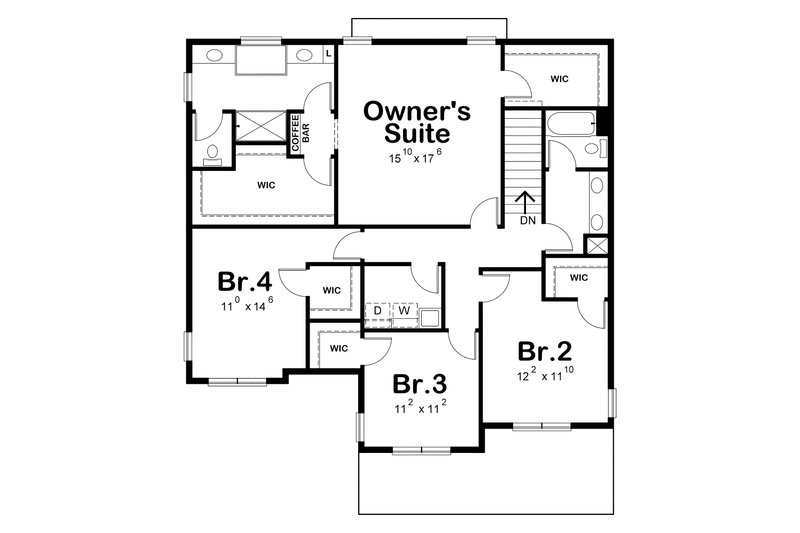

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #20-2196

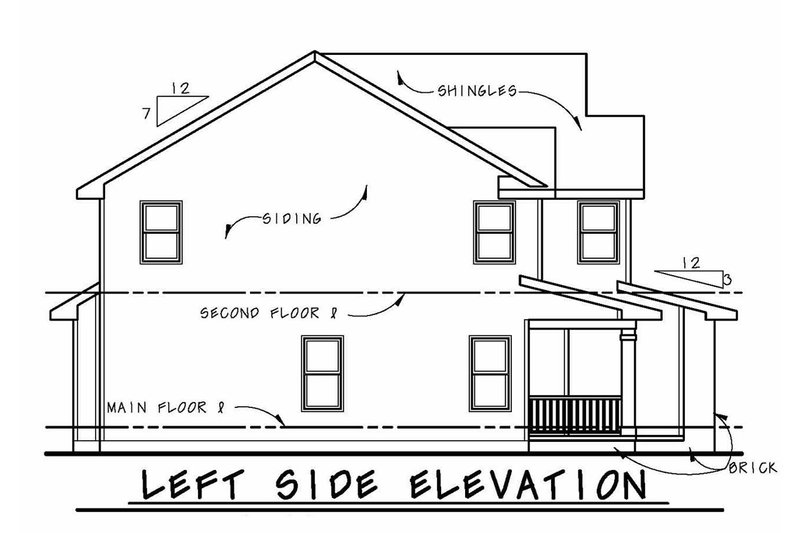

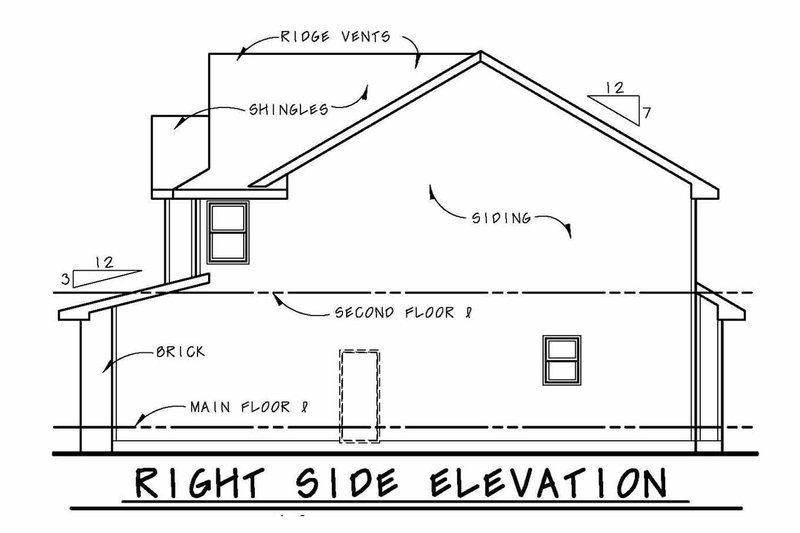

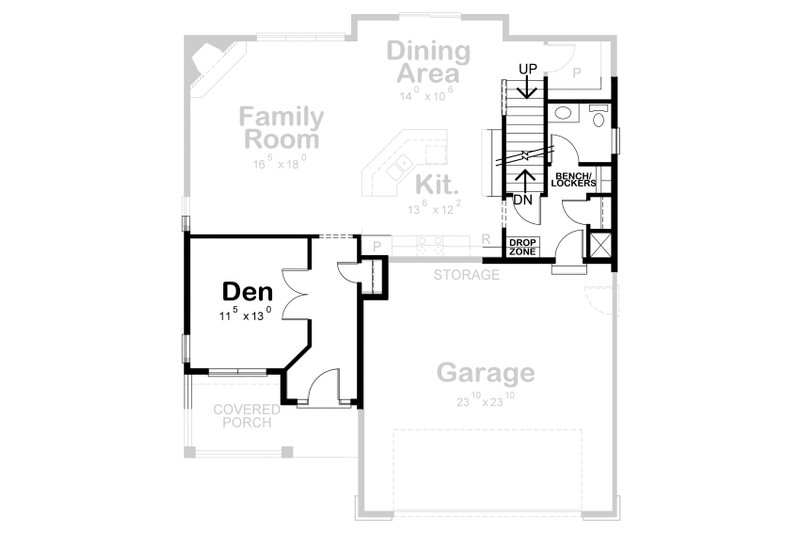

Floor Plan - Other Floor Plan
Traditional Floor Plan - Other Floor Plan Plan #20-2196

Full Specs & Features

Dimension Depth : 48'
Height : 30' 5"
Width : 41' 4"
Area Garage : 586 sq/ft
Main Floor : 1140 sq/ft
Upper Floor : 1470 sq/ft
Ceiling Main Ceiling : 9'
Upper Ceiling Ft : 8'
Exterior Wall Framing Framing : 2x6
Bedroom Features Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Bonus Play Flex Room
Den Office Study Computer
Family Room Keeping Room
Storage Area
Upstairs Laundry
Garage Features Front Entry Garage
Lot Characteristics Zero Lot Lines
Outdoor Spaces Covered Front Porch
Bedroom 2 132 sq/ft width 12' 2" x depth 11' 10"
Bedroom 3 125 sq/ft width 11' 2" x depth 11' 2"
Bedroom 4 160 sq/ft width 11' x depth 14' 6"
Covered Front Porch 111 sq/ft width 0" x depth 0"
Dining Area 147 sq/ft width 14' x depth 10' 6"
Family Room 296 sq/ft width 16' 5" x depth 18'
Flex Room 210 sq/ft width 16' 2" x depth 13'
Garage 586 sq/ft width 23' 10" x depth 23' 10"
Kitchen 164 sq/ft width 13' 6" x depth 12' 2"
Owner's Suite 277 sq/ft width 15' 10" x depth 17' 6"

What's Included In This Plan Set

  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria

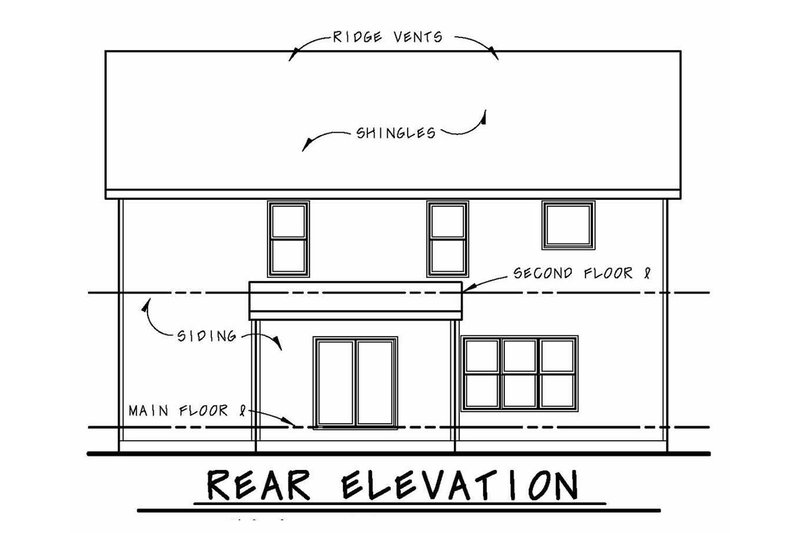

  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
