PLAN 132-340
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
You might be surprised at how many different spaces this sleek Craftsman home fits into a compact layout. The finished basement holds three bedrooms (one a private suite), a rec room, and even a patio. Upstairs on the main level, fireplaces warm both the family and living rooms (the latter would make a great den or library). The kitchen offers a snack counter and easy access to the nook and deck beyond. Don't miss the master suite's corner tub and walk-in closet.
Floor Plans

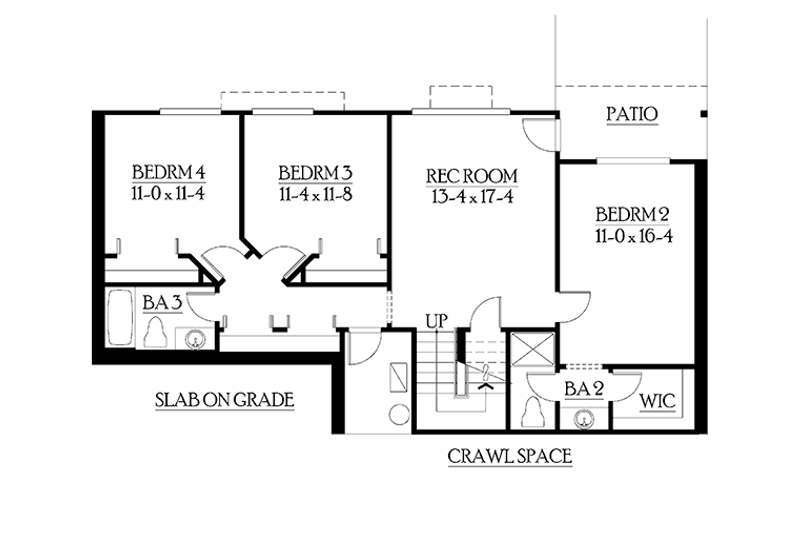

Floor Plan - Lower Floor

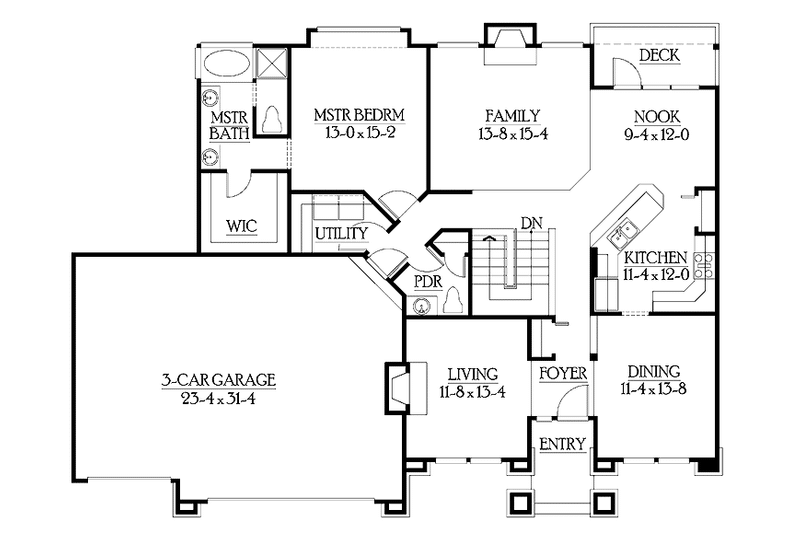

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 47'
Height : 20' 5"
Width : 62'
Area
Basement Living: 1065 sq/ft
First Floor: 1550 sq/ft
Garage: 735 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Rooms
Bedroom 2:
179 sq/ft width 11' x depth 16' 4"
Bedroom 3:
132 sq/ft width 11' 4" x depth 11' 8"
Bedroom 4:
124 sq/ft width 11' x depth 11' 4"
Kitchen:
135 sq/ft width 11' 4" x depth 12'
Living Room:
155 sq/ft width 11' 8" x depth 13' 4"
Master Bedroom:
197 sq/ft width 13' x depth 15' 2"
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license.
If you are building this plan in the state of Washington, please call us before placing your order.
» See important
information before purchasing.
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
