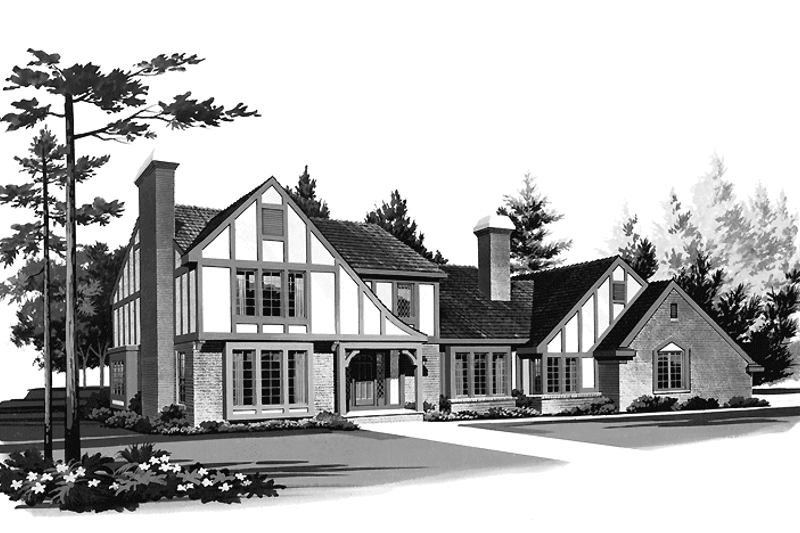

Dream House Plan - Tudor Exterior - Front Elevation Plan #72-798

Dream House Plan - Tudor Exterior - Rear Elevation Plan #72-798

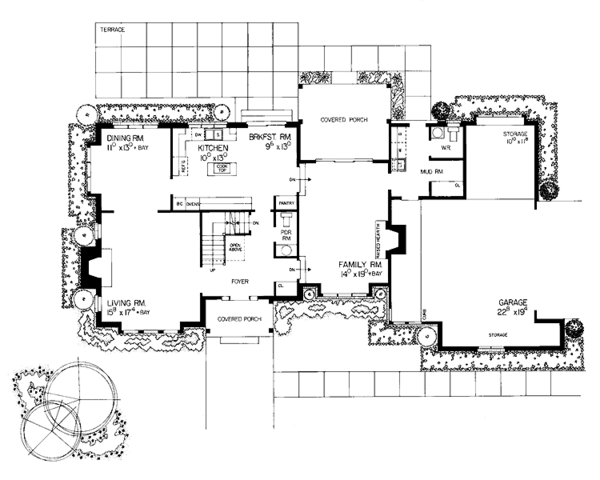

Dream House Plan - Tudor Floor Plan - Main Floor Plan #72-798

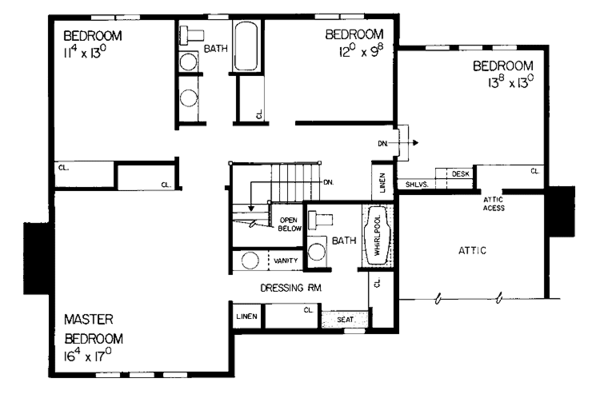

Dream House Plan - Tudor Floor Plan - Upper Floor Plan #72-798

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Tudor House Plans

Key Specs

2617
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$51.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design

$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$845.75

Allows you to build this home as many times as you want.

Subtotal

NOW $1083.85

You save $191.27 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 72-798

Home > Style > Tudor House Plans

Key Specs

2617
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

The swooping roof of the projecting front gable results in a sheltered entrance to the foyer of this unique design. Inside, the floor plan offers two large living areas one for formal and another for informal living. The L-shaped kitchen easily serves both the formal dining room and the cozy breakfast nook. Four bedrooms, two full baths and attic storage are available upstairs. A large mudroom and a huge storage area in the garage complete this amenity-filled plan.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 36' 4"

Height : 30'

Width : 74'

Area

First Floor: 1372 sq/ft height 8'

Second Floor: 1245 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Open Floor Plan

Storage Area

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

9 sq/ft width 2' 1" x depth 4' 4"

Basement Foundation:

945 sq/ft width 31' x depth 30' 6"

Bedroom 2:

147 sq/ft width 11' 4" x depth 13'

Bedroom 2 Closet:

11 sq/ft width 2' 1" x depth 5' 8"

Bedroom 3:

116 sq/ft width 12' x depth 9' 8"

Bedroom 3 Closet:

11 sq/ft width 2' 1" x depth 5' 8"

Bedroom 4:

177 sq/ft width 13' 8" x depth 13'

Bedroom 4 Closet:

12 sq/ft width 2' x depth 6' 4"

Breakfast Room:

123 sq/ft width 9' 6" x depth 13'

Dining Room:

143 sq/ft width 11' x depth 13'

Foyer:

107 sq/ft width 11' 4" x depth 9' 6"

Garage:

438 sq/ft width 22' 8" x depth 19' 4"

Garage Storage:

68 sq/ft width 3' 8" x depth 18' 8"

Gathering Room:

266 sq/ft width 14' x depth 19'

Hall:

66 sq/ft width 3' 4" x depth 20'

Hall Bathroom:

73 sq/ft width 7' 6" x depth 9' 9"

Hall Closet:

6 sq/ft width 2' x depth 3' 4"

Kitchen:

130 sq/ft width 10' x depth 13'

Laundry Room:

67 sq/ft width 6' 2" x depth 11'

Living Room:

271 sq/ft width 15' 8" x depth 17' 4"

Master Bathroom:

95 sq/ft width 8' 4" x depth 11' 6"

Master Bedroom:

277 sq/ft width 16' 4" x depth 17'

Master Closet:

11 sq/ft width 2' 1" x depth 5' 4"

Porch - Front:

60 sq/ft width 5' 8" x depth 10' 8"

Porch - Rear:

176 sq/ft width 12' x depth 14' 8"

Powder Room:

23 sq/ft width 3' 4" x depth 7'

Storage:

121 sq/ft width 10' 10" x depth 11' 3"

Wash Room:

25 sq/ft width 5' 1" x depth 5'
