Full Specs & Features
Depth : 60' 4"
Height : 30' 6"
Width : 50'
Bonus: 259 sq/ft
First Floor: 1660 sq/ft
Garage: 524 sq/ft
Porch: 427 sq/ft
Second Floor: 960 sq/ft
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Main Floor Master Bedroom
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Vaulted / Cathedral Ceilings
122 sq/ft width 11' 6" x depth 10' 8"
164 sq/ft width 13' 6" x depth 12' 2"
186 sq/ft width 13' 4" x depth 14'
441 sq/ft width 21' x depth 21'
329 sq/ft width 18' x depth 18' 4"
222 sq/ft width 17' 4" x depth 12' 10"
224 sq/ft width 13' 4" x depth 16' 10"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

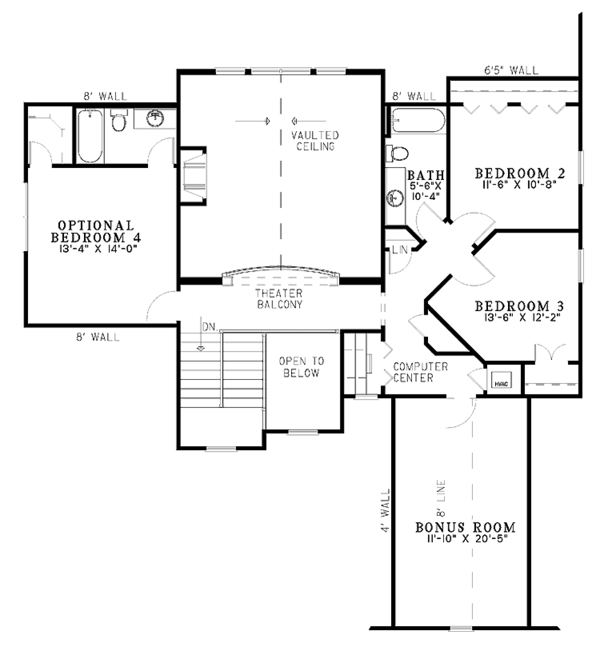

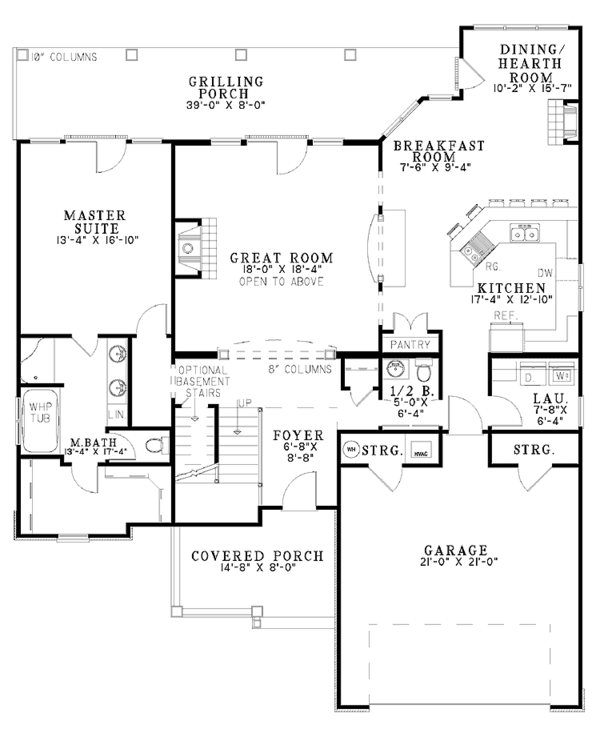

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

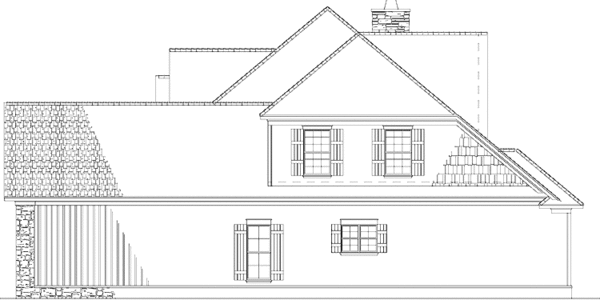

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
