PLAN 137-167
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 79' 10"
Height : 28'
Width : 62' 6"
Area
Basement Living: 1970 sq/ft
Bonus: 424 sq/ft

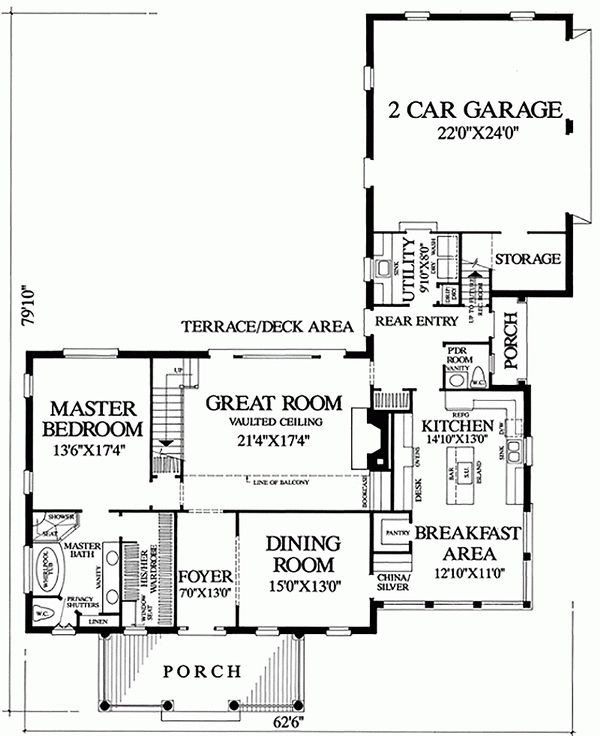

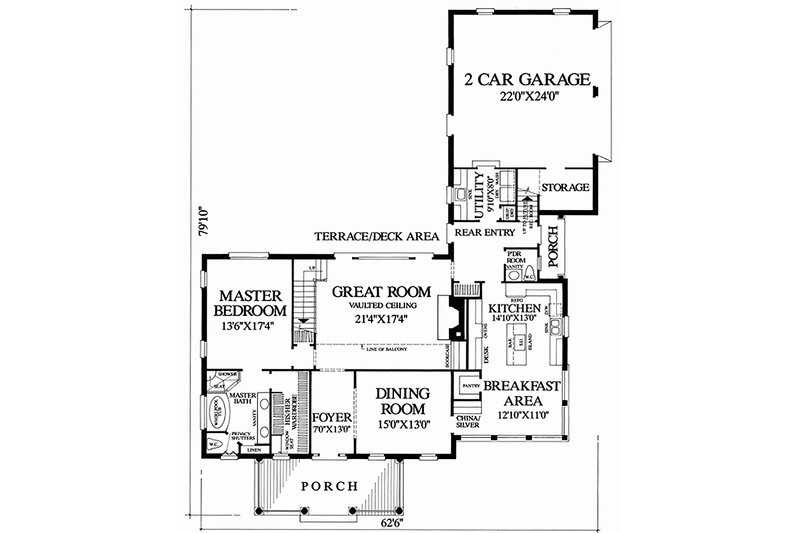

First Floor: 1970 sq/ft height 9'

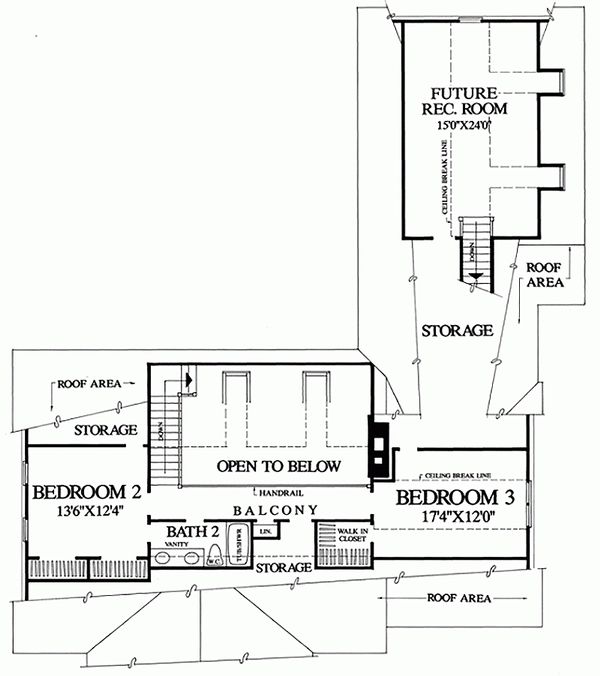

Second Floor: 660 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Rooms
Bedroom 2:
166 sq/ft width 13' 6" x depth 12' 4"
Bedroom 3:
207 sq/ft width 17' 4" x depth 12'
Breakfast Room:
141 sq/ft width 12' x depth 11' 10"
Dining Room:
195 sq/ft width 15' x depth 13'
Foyer:
91 sq/ft width 7' x depth 13'
Garage:
528 sq/ft width 22' x depth 24'
Great Room:
367 sq/ft width 15' 4" x depth 24'
Kitchen:
192 sq/ft width 14' 10" x depth 13'
Living Room:
369 sq/ft width 21' 4" x depth 17' 4"
Master Bathroom:
126 sq/ft width 9' 9" x depth 13'
Master Bedroom:
233 sq/ft width 13' 6" x depth 17' 4"
Utility Room:
78 sq/ft width 9' 10" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

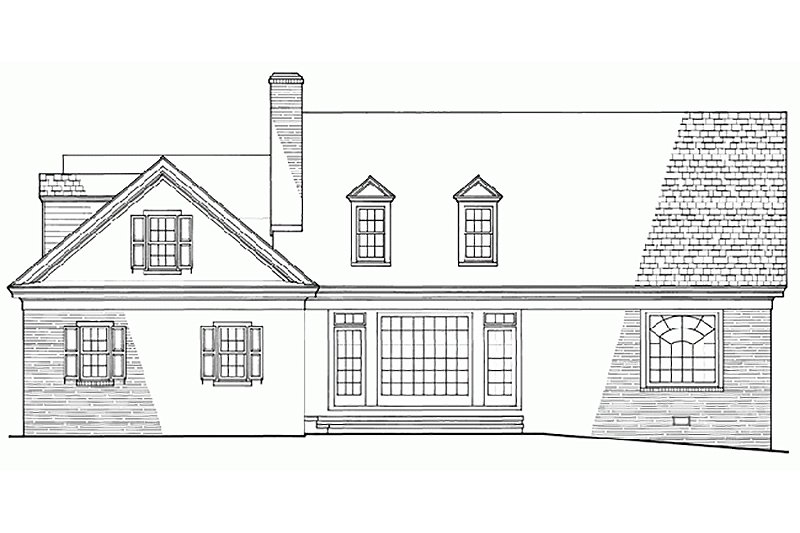

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Rendering(s): Designer’s rendering of front elevation
Plan Set
$680.00
$743.75
$935.00
$935.00
$595.00
Foundation
$0.00
Additional Options
$46.75
$140.25
$250.75
$33.15
$140.25
$46.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
