Full Specs & Features
Depth : 38'
Height : 26' 10"
Width : 74' 6"
Garage : 587 sq/ft

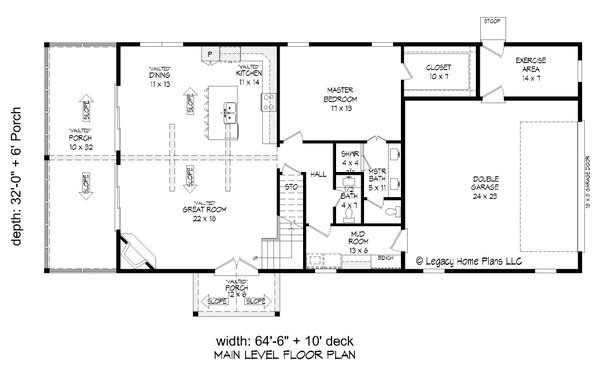

Main Floor : 1478 sq/ft
Porch : 392 sq/ft

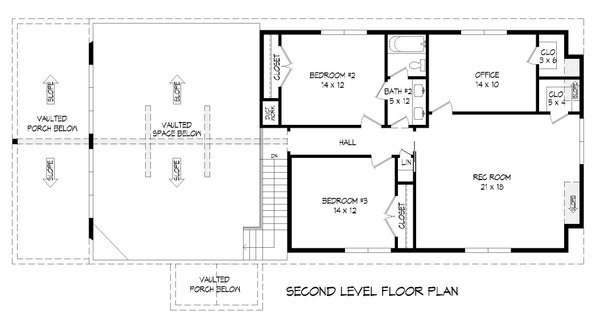

Upper Floor : 1172 sq/ft
Ceiling Details : 9'-6" to 14'-0" ht ceilings up
Main Ceiling : 10'
Roof Framing : gable
Roof Load : 10
Roof Type : coventional
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Side Entry Garage
Covered Front Porch
Additional Half Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
